Chassis Control Module Replacement

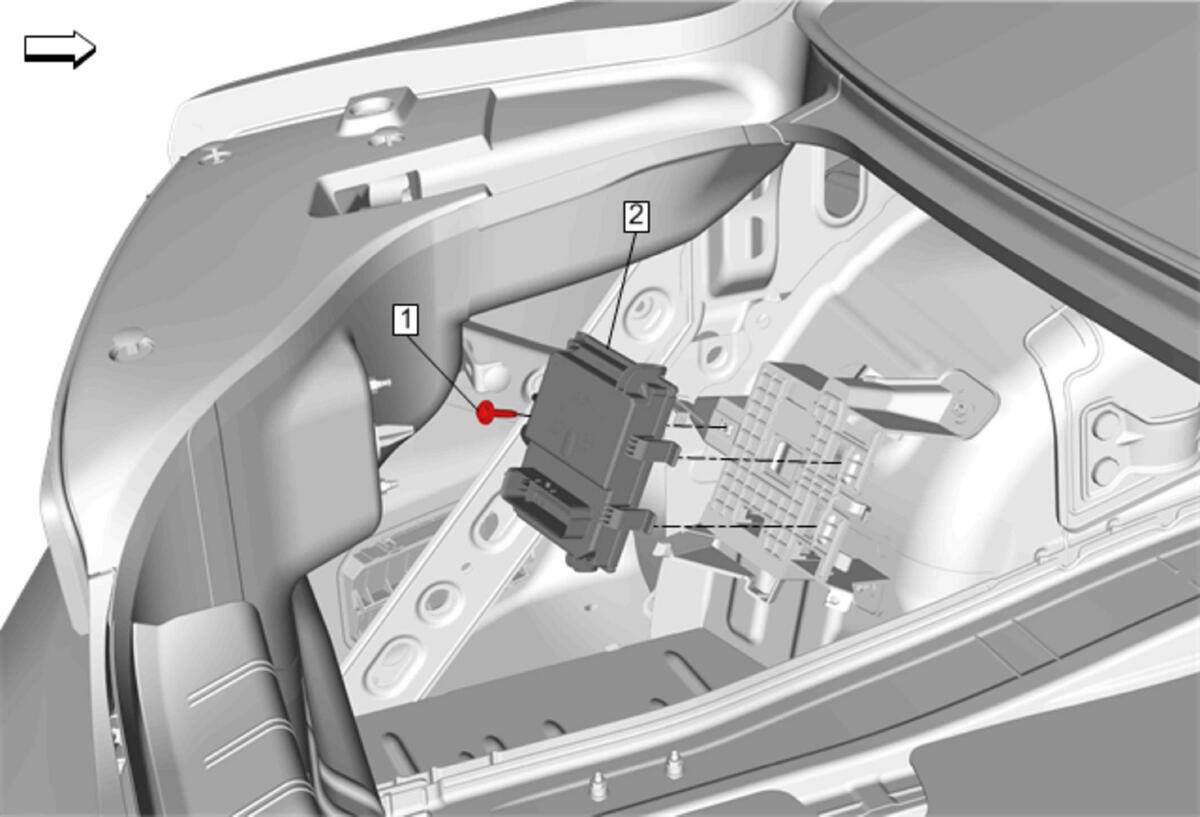

GM4171663Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Callout Component Name
Preliminary Procedure
Rear Compartment Side Trim Replacement - Left Side (Coupe) , or Rear Compartment Side Trim Replacement - Left Side (Convertible) .
1 Chassis Control Module Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Chassis Control Module

Procedure

  1. Disconnect the electrical connector.
  2. If replacing, reprogram the module. Control Module References
