Removal Procedure

Extend the steering column to the fully telescoped position.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The instrument panel steering column upper trim cover does NOT need to be completely removed, only unclip the instrument panel steering column upper trim cover from the instrument panel steering column lower trim cover.

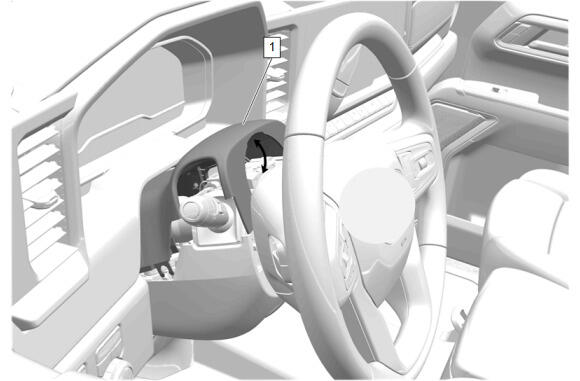

Unclip the instrument panel steering column upper trim cover (1) from the instrument panel steering column lower trim cover and reposition.
Courtesy of GENERAL MOTORS COMPANY

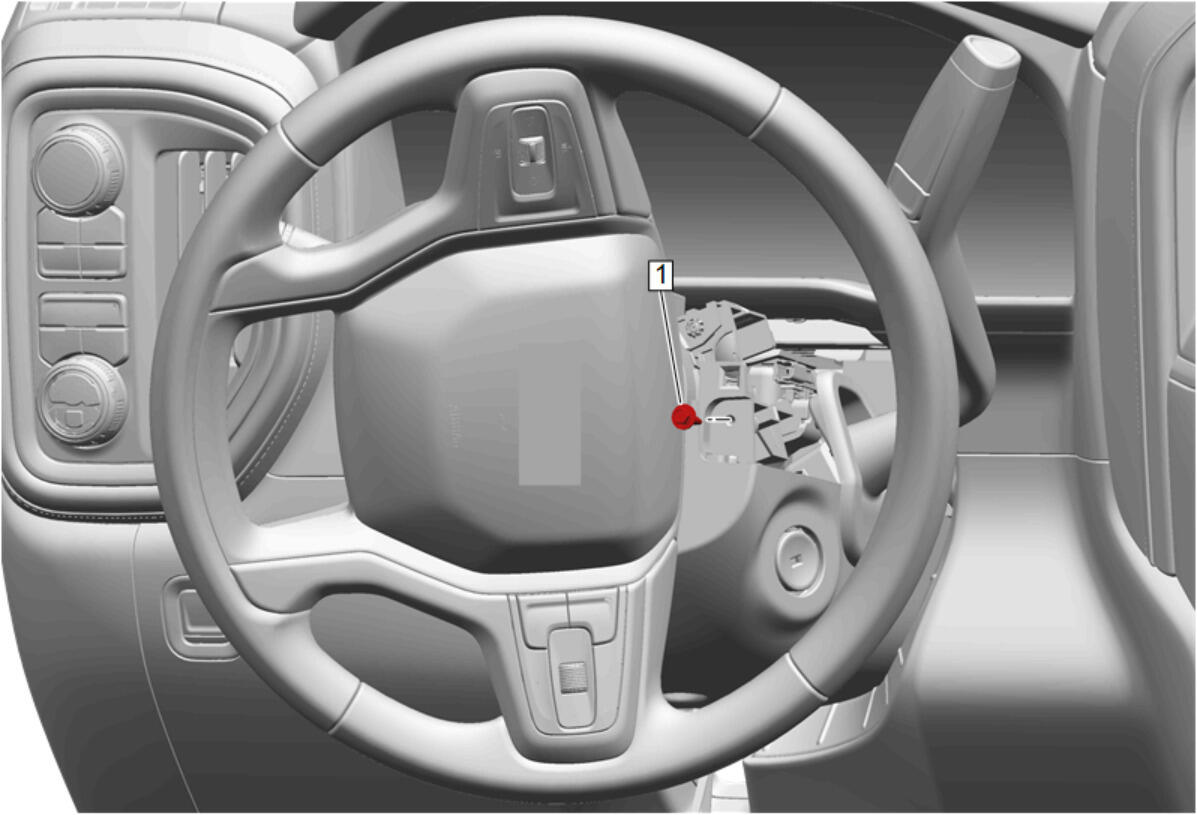

Turn the steering wheel approximately 90 degrees to the left of the centered position.

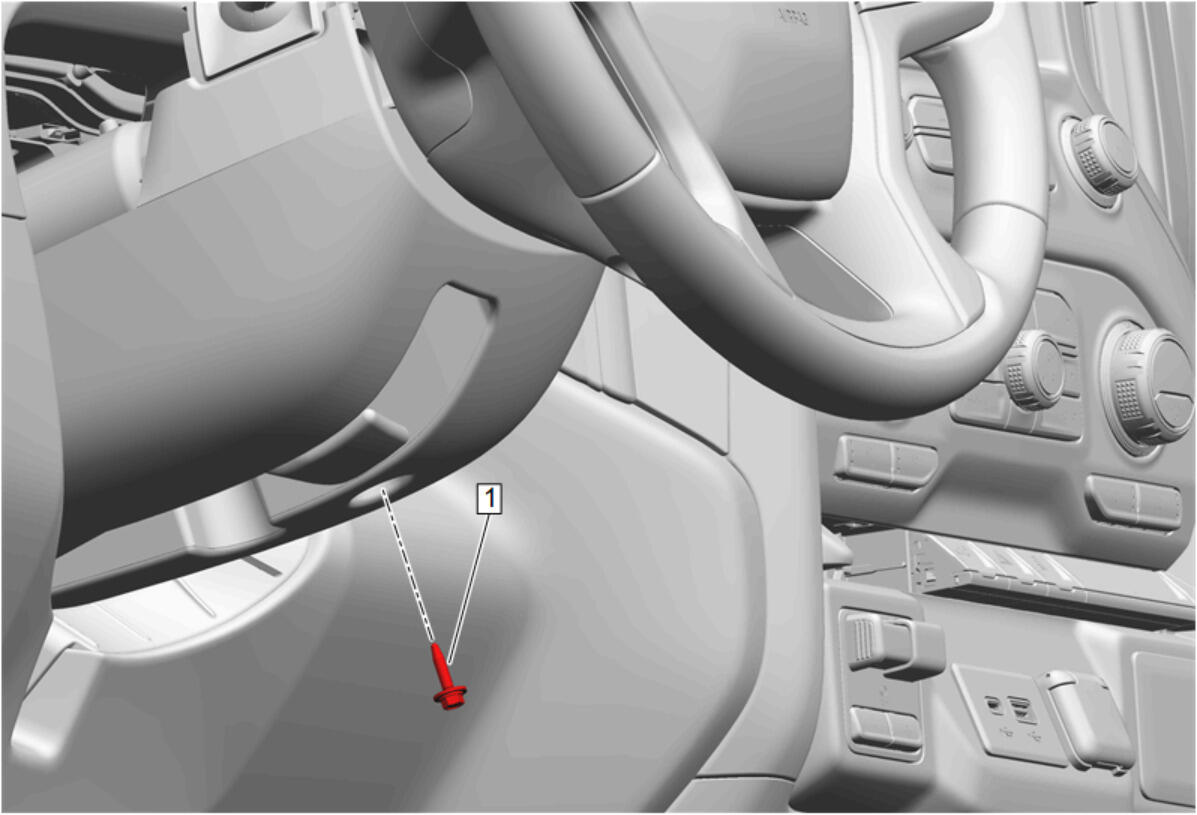

Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

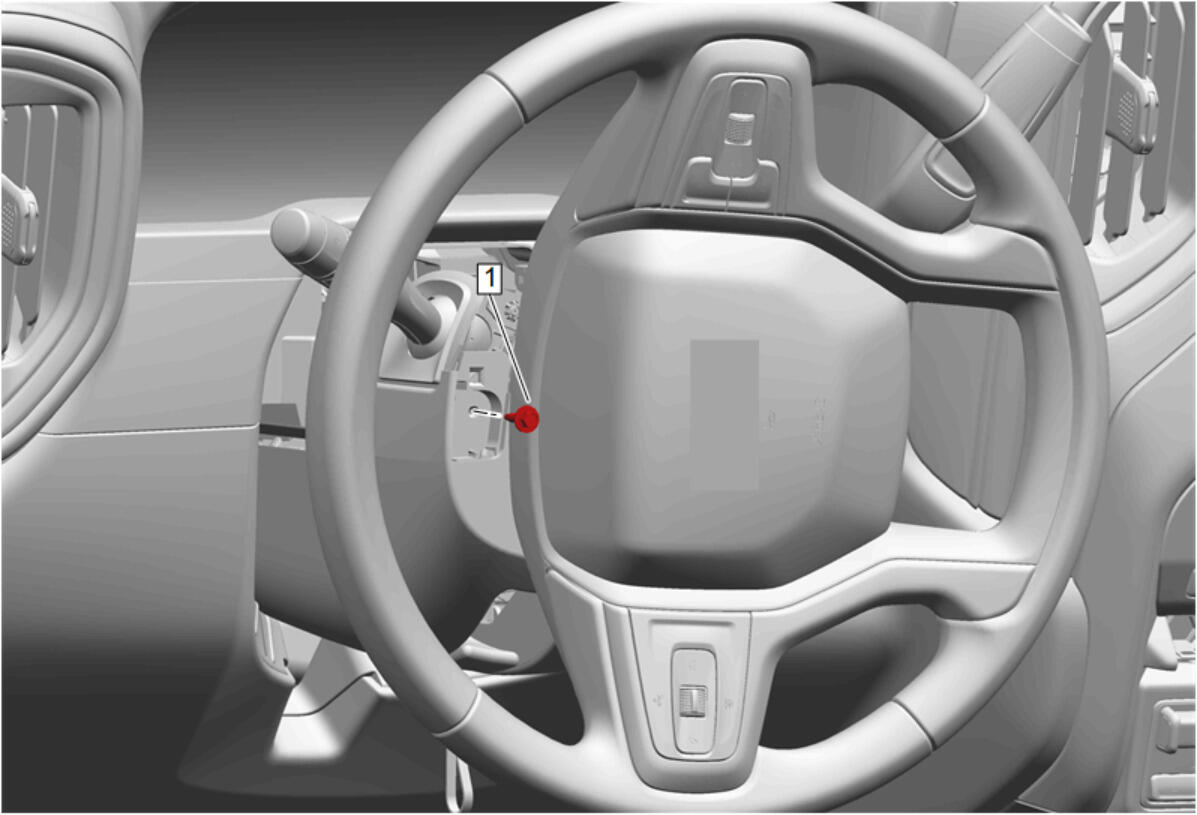

Turn the steering wheel approximately 90 degrees to the right of the centered position.
Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Turn the steering wheel to the centered position.
Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Maneuver the instrument panel steering column lower trim cover around the steering column tilt and telescoping lever as necessary.

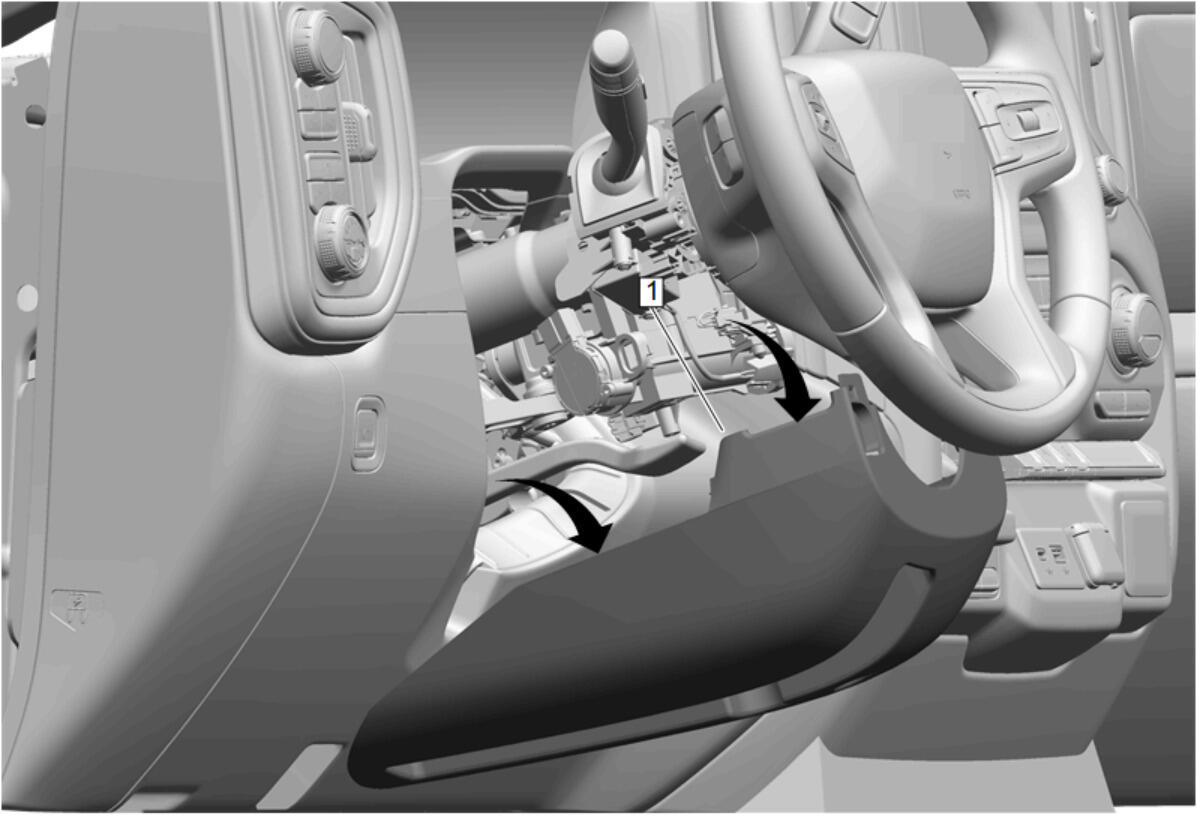

Remove the instrument panel steering column lower trim cover (1) from the steering column.
Courtesy of GENERAL MOTORS COMPANY

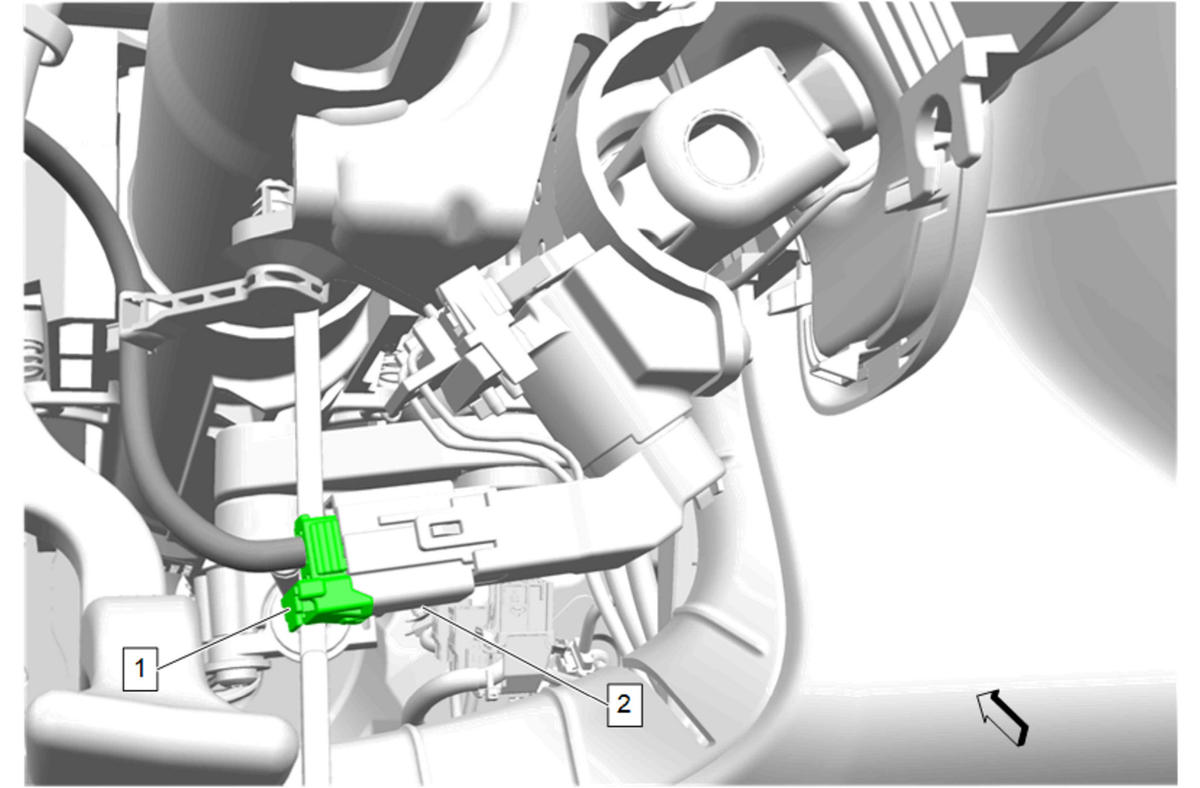

Disconnect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

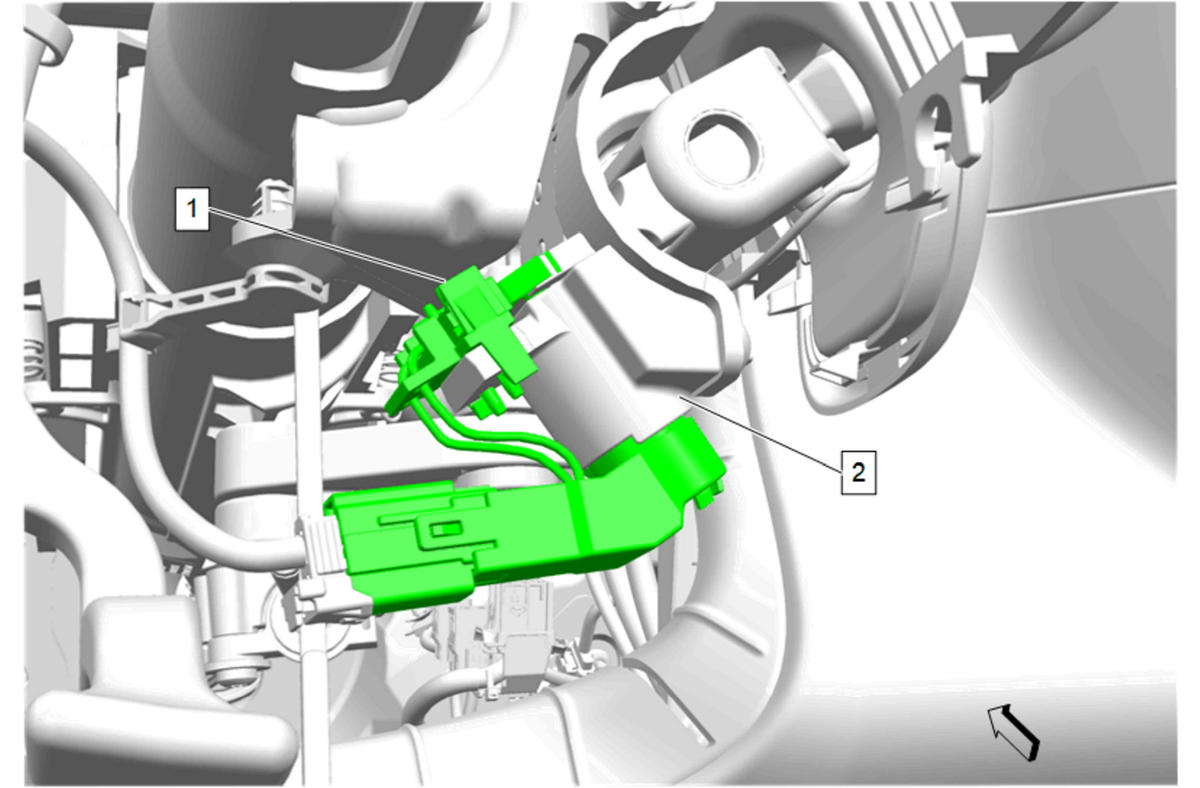

Disconnect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

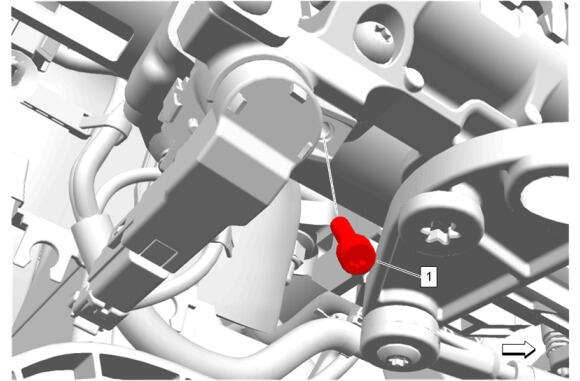

Remove the automatic transmission shift lock control solenoid bolt. (1)
Courtesy of GENERAL MOTORS COMPANY

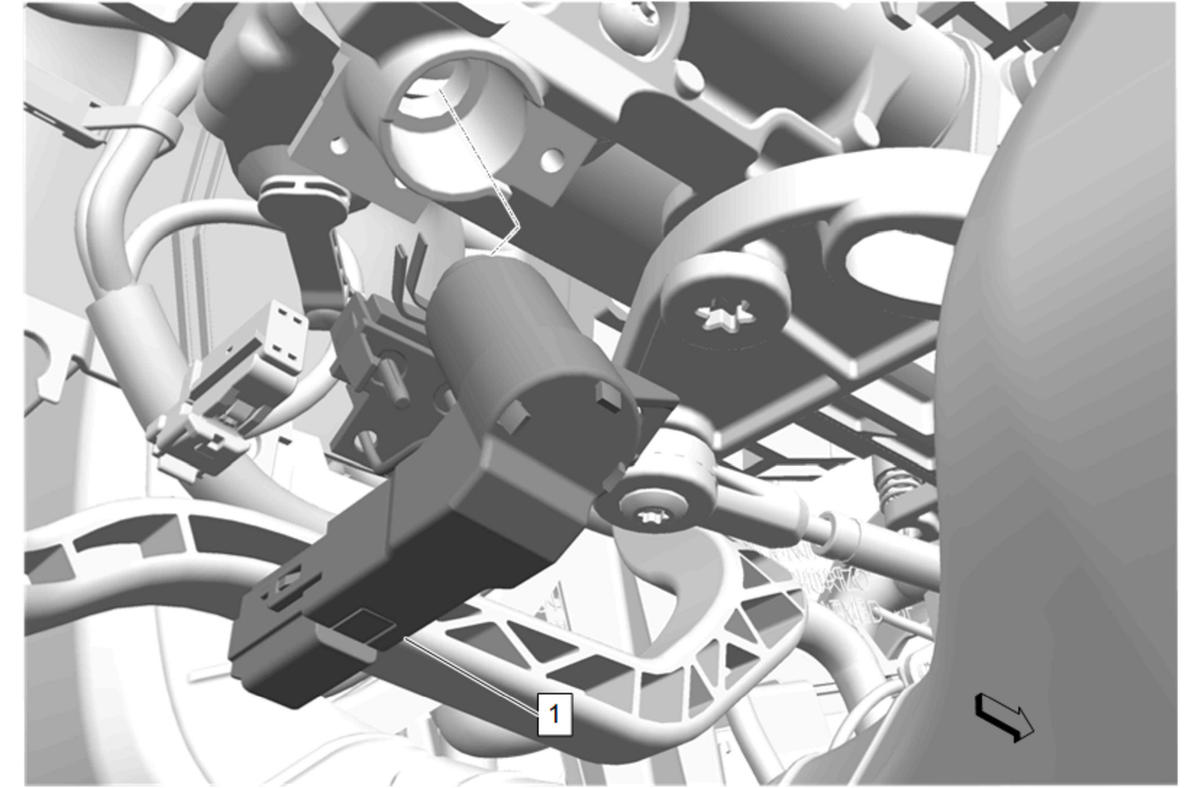

Remove the automatic transmission shift lock control solenoid. (1)
