Removal Procedure

Remove the spare tire and wheel assembly.

NOTE:

Service mode will be automatically enabled when the ride height sensors detect the vehicle has been lifted off the ground. Service mode will automatically be disabled when the vehicle reaches 16 km/h (10 MPH).

Using the scan tool, deflate the automatic level control air supply reservoir.
Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

Remove the air intake/exhaust line (1) from the body grommet.
Remove the air line retaining clip (2).
Courtesy of GENERAL MOTORS COMPANY

Remove the air intake filter retainer (1).
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connector (1).
Remove the wire harness retainer (3).
Disconnect the electrical connector (2).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The air lines and air suspension controller are color coded.

Remove the 5 automatic level control air compressor tube fittings (1) from the air suspension controller.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The new automatic level control module air suspension controller will have new automatic level control air compressor tube fittings installed.

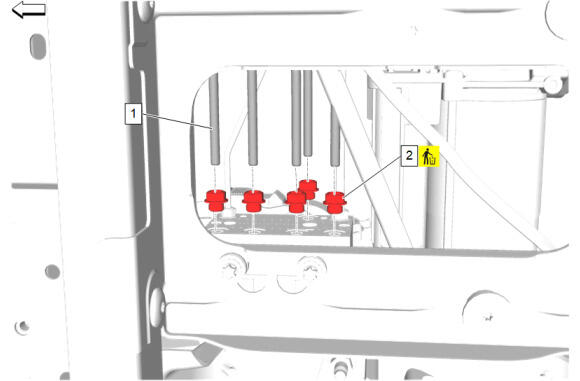

Remove and DISCARD the 5 old automatic level control air compressor tube fittings (2) and bite rings from the 5 automatic level control air compressor tubes (1).
Courtesy of GENERAL MOTORS COMPANY

Disconnect the air suspension controller electrical connector (1).
Courtesy of GENERAL MOTORS COMPANY

Automatic Level Control Module Bolt (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

Automatic Level Control Module (1) - Remove
