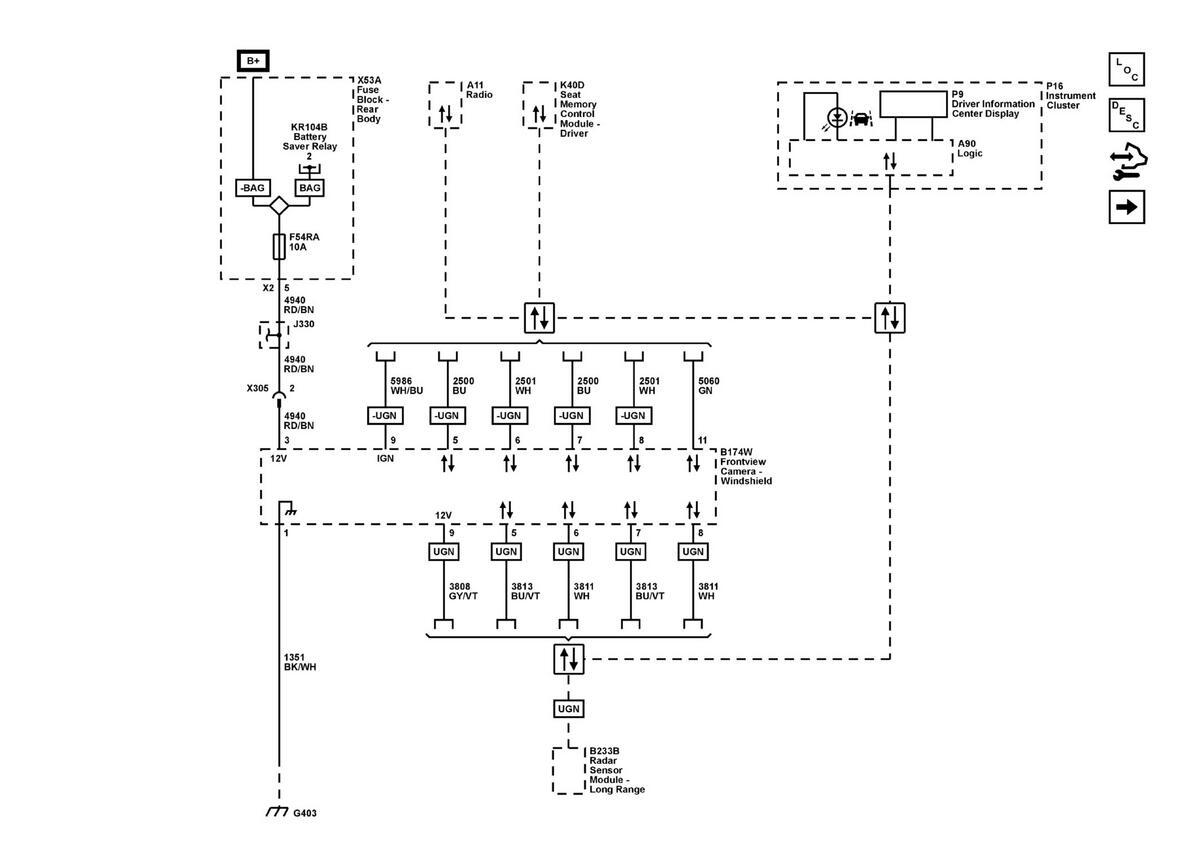

Lane Keep Assist and Forward Collision - Module Power, Ground, and Serial Data
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
