Instrument Panel Components

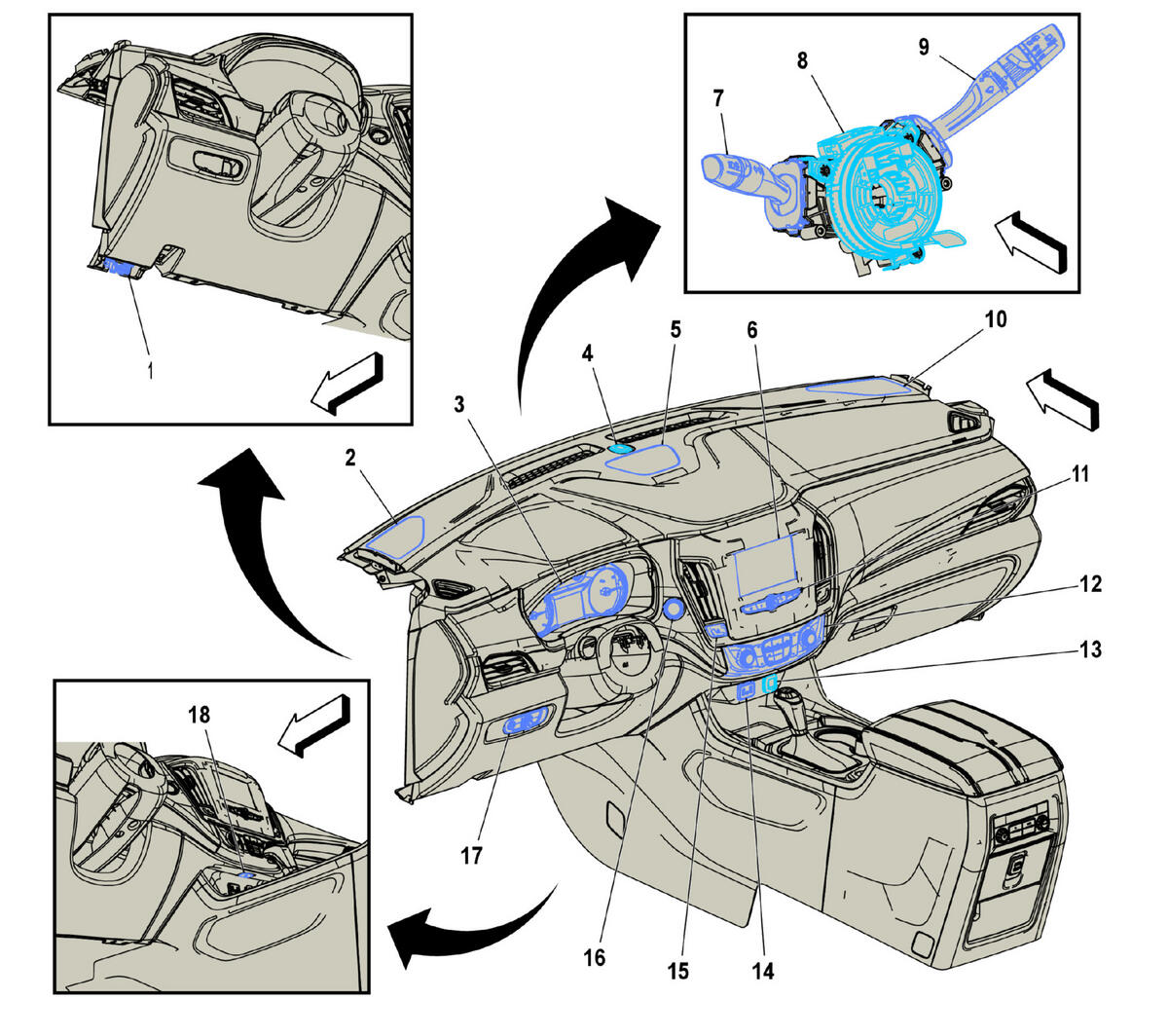

GM6356698Courtesy of GENERAL MOTORS COMPANY
Items
1. X84 Data Link Connector X84 Data Link Connector
2. P19J Speaker - Left Instrument Panel P19J Speaker - Left Instrument Panel (UQA) , or P19J Speaker - Left Instrument Panel (UQF)
3. P16 Instrument Cluster P16 Instrument Cluster (UDC) , or P16 Instrument Cluster (UDD/UHS)
4. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor
5. P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel (UQA)
6. A22 Radio Controls (IOS or IOU)
7. S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch
8. X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1 , or X85 Steering Wheel Air Bag Coil X2
9. S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch
10. P19W Speaker - Right Instrument Panel P19W Speaker - Right Instrument Panel (UQA) , or P19W Speaker - Right Instrument Panel (UQF)
11. A11 Radio A11 Radio X1 (IOR) , or A11 Radio X1 (IOS/IOU) , or A11 Radio X10 (IOS/IOU) , or A11 Radio X2 (IOR) , or A11 Radio X2 (UQF+(IOS/IOU)) , or A11 Radio X3 (IOR+(UE1/UER)) , or A11 Radio X3 (IOS/IOU) , or A11 Radio X4 (IOR) , or A11 Radio X4 (IOS/IOU) , or A11 Radio X5 (UVB/UV2) , or A11 Radio X6 (IOR) , or A11 Radio X6 (IOS/IOU) , or A11 Radio X7 ((IOS/IOU)+U2K) , or A11 Radio X7 (IOR+U2K) , or A11 Radio X8 (IOR) , or A11 Radio X8 (IOS/IOU) , or A11 Radio X9 (IOS/IOU)
12. A26 HVAC Controls A26 HVAC Controls
13. X80F Accessory Power Receptacle - Front X80F Accessory Power Receptacle - Front (-DUJ) , or X80F Accessory Power Receptacle - Front (DUJ)
14. X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 (IOR) , or X83 Auxiliary Audio Input X1 (IOS/IOU) , or X83 Auxiliary Audio Input X2 (IOR) , or X83 Auxiliary Audio Input X2 (IOS/IOU)
15. S26 Hazard Warning Switch S26 Hazard Warning Switch
16. S38 Ignition Mode Switch S38 Ignition Mode Switch
17. S30 Headlamp Switch S30 Headlamp Switch
18. E1GA Accent Lamp - Left Middle Instrument Panel E1GA Accent Lamp - Left Middle Instrument Panel
