Chassis Control Module Replacement (LT4)

Courtesy of GENERAL MOTORS COMPANY

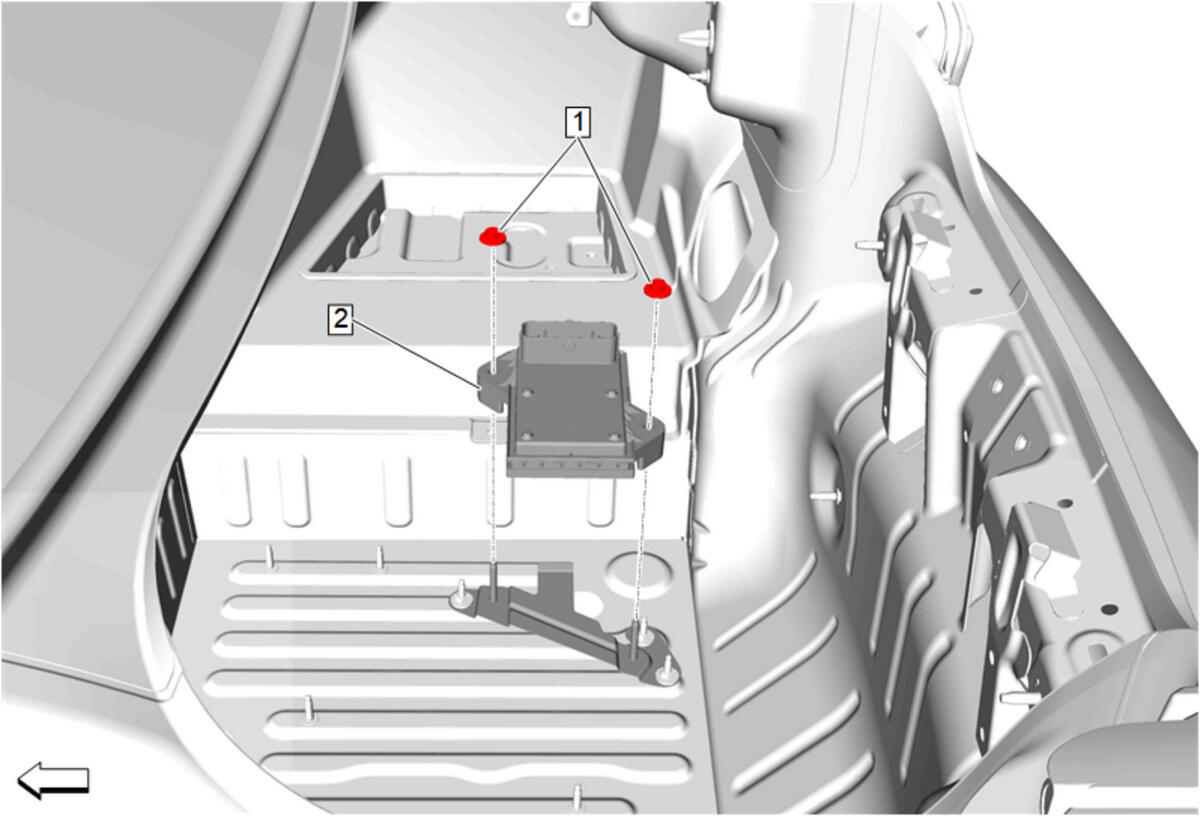

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Rear Compartment Floor Panel Trim Replacement {If equipped} Remove rear compartment bin. Disconnect the chassis control module electrical connector.
1	Chassis Control Module Nut [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Chassis Control Module Procedure If replacing chassis control module, program the control module. Control Module References

Callout

Component Name

Preliminary Procedure

Chassis Control Module Nut [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Chassis Control Module
Procedure
If replacing chassis control module, program the control module. Control Module References
