Installation Procedure

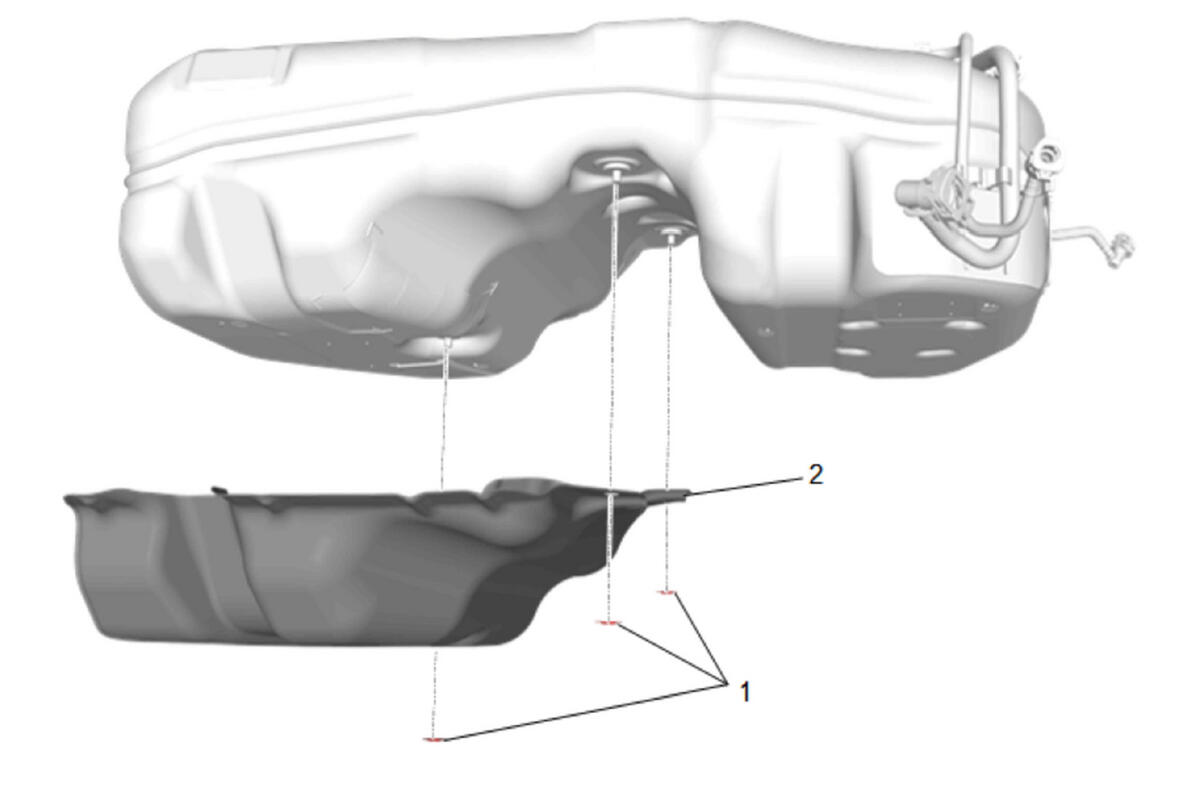

  1. GM6075042Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Shield (2) - Install

  2. Fuel Tank Shield Retainer (1) - Install [3x]
  3. Fuel Tank - Install - Fuel Tank Replacement (AWD) , or Fuel Tank Replacement (FWD)
