Removal Procedure
- Disable the SIR system. SIR Disabling and Enabling
- Front Side Door Trim - Remove - Front Side Door Trim Removal and Installation
Front Side Door Armrest Bracket Bolt (1) - Remove [2x]
- Front Side Door Armrest Bracket (2) - Remove
Front Side Door Water Deflector (1) - Remove
Front Side Door Lock Cylinder Cover (1) - Remove
Front Side Door Outside Handle Access Hole Plug (1) - Remove
- NOTE:
- USE HAND TOOL ONLY. Using a battery operated gun or power tool can BREAK the component.
- Around 10 to 12 rotations is enough to allow the front side door outside handle to be removed.
- Support the front side door outside handle while loosening the front side door outside handle bracket.
Front Side Door Outside Handle Bracket Screw (1) - Loosen
Disconnect the electrical connector (1)
- Pull the front side door outside handle rearward to release it from the handle housing.
- Front Side Door Outside Handle (2) - Remove
Place the front side door window in the halfway position to gain access to the window sash (1).
- Front Side Door Window Regulator Sash Retainer (1) - Release [2x]
Place the front side door window (1) in the full up position and tape in place.
- Place the front side door window regulator in the full down position.
- Disconnect the electrical connector.
Front Side Door Window Regulator Nut (1) - Remove [5x]
- Front Side Door Window Regulator (2) - Remove
Front Side Door Window Channel Retainer Bolt (1) - Remove [2x]
- Front Side Door Window Channel Retainer (2) - Remove
Front Side Door Outside Handle Bracket Screw (1) - Remove
Front Side Door Latch Bolt (1) - Loosen
Front Side Door Latch Bolt (1) - Remove [3x]
- Disconnect all electrical connectors.
Remove the front side door latch with front side door outside handle bracket (1) from front side door.
- Disconnect the wiring harness retainers as necessary.

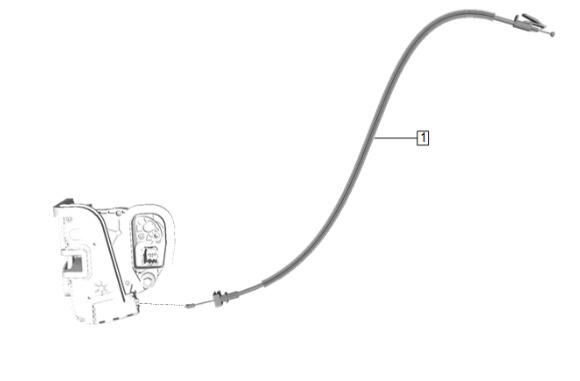

Front Side Door Inside Handle Cable (1) - Remove
