Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

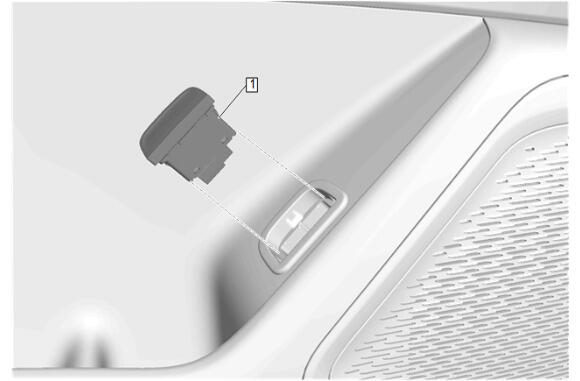

Liftgate Release Switch - Interior (1) - Install
Courtesy of GENERAL MOTORS COMPANY

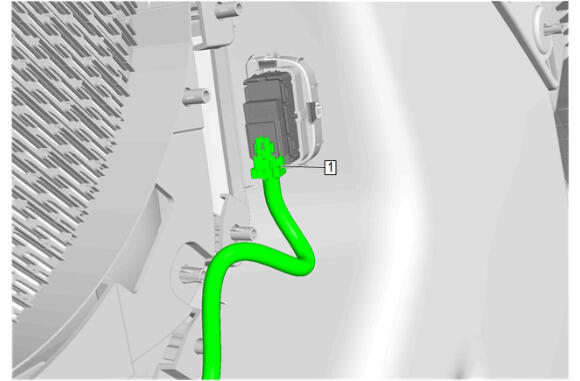

Connect the electrical connector (1).
Courtesy of GENERAL MOTORS COMPANY

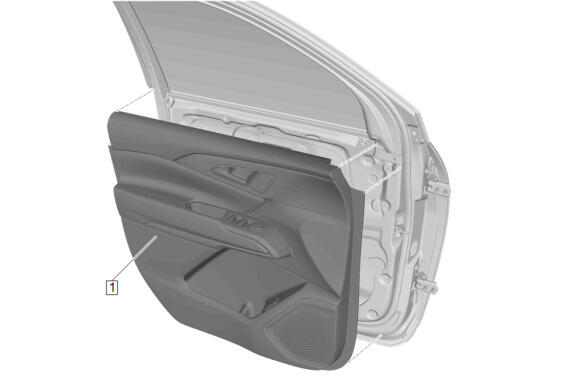

Front Side Door Trim (1) - Install
1. Connect the electrical connector.
2. Connect the door lock retainer cable to the front side door trim (1) and the inside handle.
Engage most forward locator pin.
Engage remaining retainers starting from the bottom to the front and rear.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

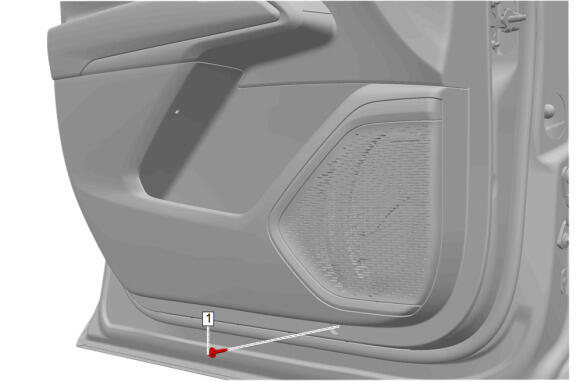

Front Side Door Trim Panel Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

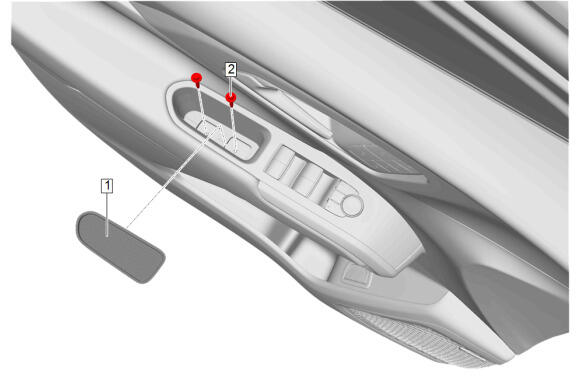

Front Side Door Armrest Pull Cup Bolt (2) - Install and tighten [2x] - Fastener Specifications
Front Side Door Pull Cup Liner (1) - Install
