Rear of Transmission Components

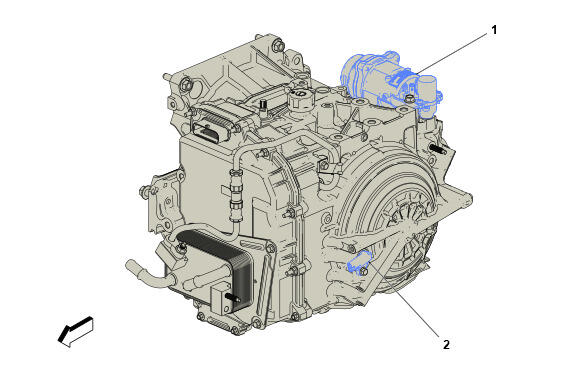

GM6431871Courtesy of GENERAL MOTORS COMPANY
Callout Items
1 B280 Transmission Fluid Pressure Accumulator Solenoid Valve B280 Transmission Fluid Pressure Accumulator Solenoid Valve
2 B14E Automatic Transmission Input / Intermediate Shaft Speed Sensor B14E Automatic Transmission Input / Intermediate Shaft Speed Sensor
