Installation Procedure

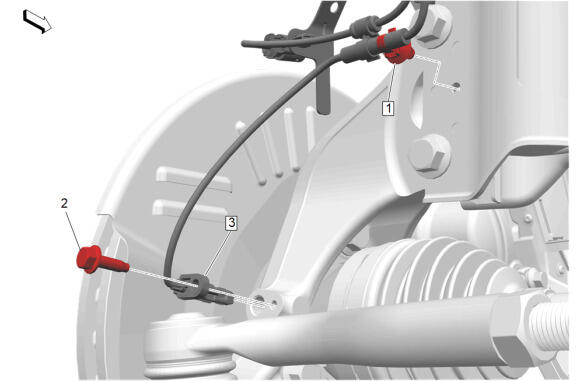

  1. GM6385974Courtesy of GENERAL MOTORS COMPANY

    Wheel Speed Sensor (1) - Install

    2. CAUTION:

    Fastener Caution

  2. Wheel Speed Sensor Bolt (1) - Install and tighten - Fastener Specifications
  3. Retainer (1) @ Strut Assembly - Secure
  4. GM6385972Courtesy of GENERAL MOTORS COMPANY

    {if equipped} Front Wheel Speed Sensor Bolt (1) - Install and tighten - Fastener Specifications

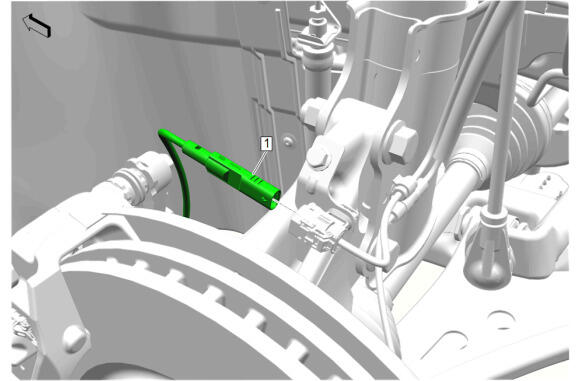

  5. GM6386771Courtesy of GENERAL MOTORS COMPANY

    {if equipped} Front Disc Brake Pad Wear Sensor (1) - Connect

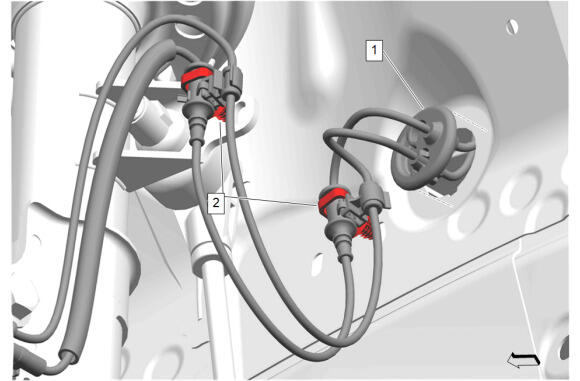

  6. GM6383152Courtesy of GENERAL MOTORS COMPANY

    Install the grommet (1).

  7. Retainer (2) - Secure [2x]
  8. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
  9. Remove the support and lower the vehicle.

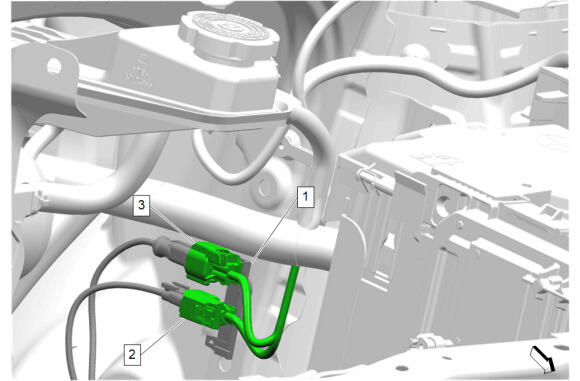

  10. GM6383151Courtesy of GENERAL MOTORS COMPANY

    { If equipped } Electrical Connector (3) - Connect

  11. Electrical Connector (2) - Connect
  12. Install the retainer (1) securing the 2 connectors (2, 3).

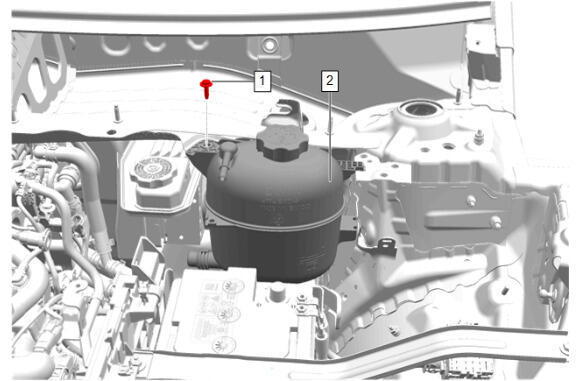

  13. GM6382664Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank (2) - Install

    14. CAUTION:

    Refer to Fastener Caution .

  14. Radiator Surge Tank Bolt (1) - Install and tighten - Fastener Specifications
  15. Install the hose retainers as necessary.
  16. Verify the repair is complete. Diagnostic Repair Verification
