Installation Procedure

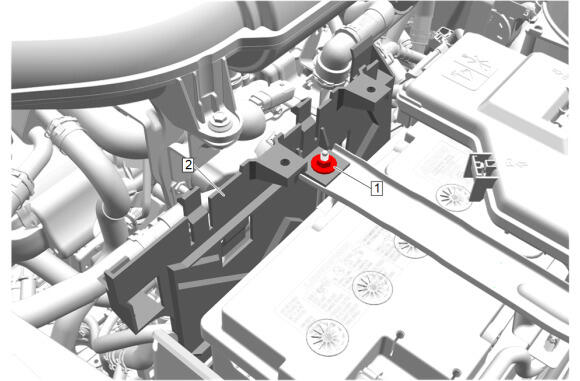

  1. GM6380304Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module Bracket (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Hold Down Retainer Nut (1) - Install and tighten - Fastener Specifications
  3. Connect the wiring harness retainers as necessary.
  4. GM6382673Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank Outlet Hose Clip (1, 2) - Install [2x]

  5. GM6380344Courtesy of GENERAL MOTORS COMPANY

    Powertrain Control Module (2) - Install

  6. Connect the electrical connectors. (1)
  7. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
