Installation Procedure

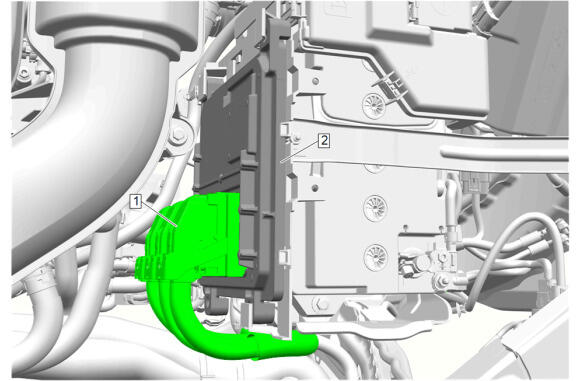

  1. GM6380344Courtesy of GENERAL MOTORS COMPANY

    Powertrain Control Module (2) - Install

  2. Connect the electrical connectors. (1)
  3. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  4. Perform the necessary programming and setup procedure: Control Module References
  5. Use the scan tool to reset the engine oil life remaining back to the original percentage recorded.
