K43 Power Steering Control Module X2
 Courtesy of GENERAL MOTORS COMPANY
|

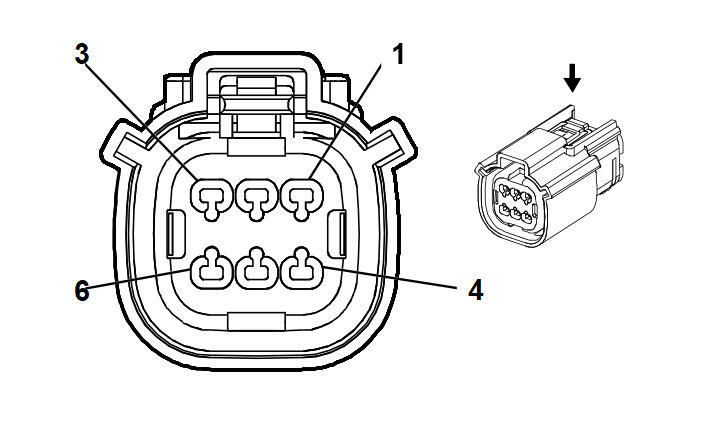

Connector Part Information
- Harness Type: Engine Wiring Harness
- OEM Connector: 13591721
- Service Connector: 13578533
- Description: 6-Way F 1.5 MX Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
I |
- |
| 2 |
0.5 |
BU / YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
I |
- |
| 3 |
0.5 |
BU / YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
I |
- |
| 4 |
0.5 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
I |
- |
| 5 - 6 |
- |
- |
- |
Not Occupied |
- |
- |
