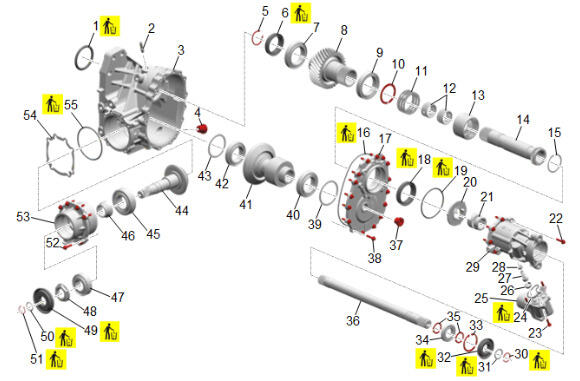

| 1 |
Power Transfer Unit Face Seal - O-Ring |
| 2 |
Power Transfer Unit Vent Hose Connector |
| 3 |
Power Transfer Unit Housing |
| 4 |
Power Transfer Unit Drain Plug |
| 5 |
Power Transfer Input Shaft Clip |
| 6 |
Power Transfer Unit Input Shaft Seal - Case |
| 7 |
Power Transfer Unit Bearing |
| 8 |
Power Transfer Unit Input Shaft |
| 9 |
Power Transfer Unit Bearing |
| 10 |
Power Transfer Input Connect Spring Clip |
| 11 |
Power Transfer Unit Connect Spring |
| 12 |
Input Disconnect Shaft Needle Bearing [2x] |
| 13 |
Power Transfer Unit Shift Sleeve |
| 14 |
Power Transfer Unit Input Disconnect Shaft |
| 15 |
Power Transfer Unit Wave Ring |
| 16 |
Power Transfer Unit Cover Housing Seal |
| 17 |
Power Transfer Unit Cover Housing |
| 18 |
Power Transfer Unit Input Shaft Seal - Cover |
| 19 |
Extension Housing Cover Seal - O-Ring |
| 20 |
Power Transfer Disconnect Linear Cam |
| 21 |
Power Transfer Disconnect Rotary Cam |
| 22 |
Power Transfer Unit Rear Pinion Housing Bolt [7x] |
| 23 |
Power Transfer Unit Shift Actuator Bolt [3x] |
| 24 |
Power Transfer Unit Shift Actuator Seal |
| 25 |
Power Transfer Unit Shift Actuator |
| 26 |
Power Transfer Unit Actuator Worm Gear Bearing |
| 27 |
Power Transfer Unit Actuator Worm Gear |
| 28 |
Power Transfer Unit Actuator Worm Gear Sleeve |
| 29 |
Power Transfer Unit Extension Housing |
| 30 |
Power Transfer Unit Intermediate Drive Shaft Clip |
| 31 |
Power Transfer Unit Half Shaft Seal - O-Ring |
| 32 |
Power Transfer Unit Intermediate Drive Shaft Seal |
| 33 |
Power Transfer Unit Intermediate Drive Shaft Bearing Retainer |
| 34 |
Power Transfer Unit Intermediate Drive Shaft Bearing |
| 35 |
Power Transfer Unit Intermediate Drive Shaft Bearing Retaining Ring [2x] |
| 36 |
Power Transfer Unit Intermediate Drive Shaft |
| 37 |
Power Transfer Unit Fill Plug |
| 38 |
Power Transfer Unit Cover Housing Bolt [13x] |
| 39 |
Power Transfer Unit Bearing Race Shim |
| 40 |
Power Transfer Unit Bearing |
| 41 |
Power Transfer Unit Idler Shaft |
| 42 |
Power Transfer Unit Bearing |
| 43 |
Power Transfer Unit Bearing Race Shim |
| 44 |
Power Transfer Unit Rear Output Shaft |
| 45 |
Power Transfer Unit Rear Output Shaft Bearing |
| 46 |
Power Transfer Unit Pinion Compression Sleeve |
| 47 |
Power Transfer Unit Rear Output Shaft Bearing |
| 48 |
Power Transfer Unit Pinion Preload Nut |
| 49 |
Power Transfer Unit Output Shaft Seal |
| 50 |
Power Transfer Unit Propeller Shaft Seal - O-Ring |
| 51 |
Power Transfer Unit Propeller Shaft Retainer |
| 52 |
Power Transfer Unit Rear Pinion Housing Bolt [8x] |
| 53 |
Power Transfer Unit Rear Output Shaft Housing |
| 54 |
Power Transfer Unit Rear Output Shaft Shim |
| 55 |
Power Transfer Unit Pinion Seal - O-Ring |
