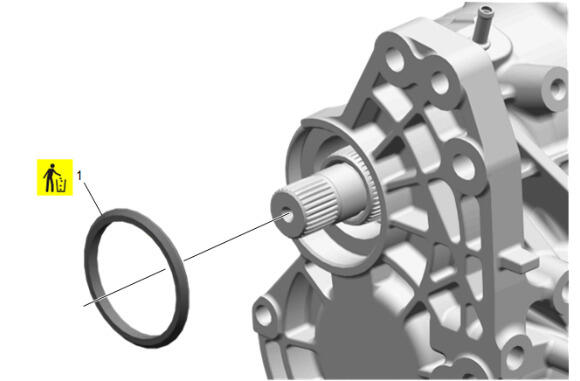

Power Transfer Unit Seal View
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Power Transfer Unit Face Seal - O-Ring
