Installation Procedure

  1. GM4738492Courtesy of GENERAL MOTORS COMPANY

    Liftgate Close Switch (1) - Install

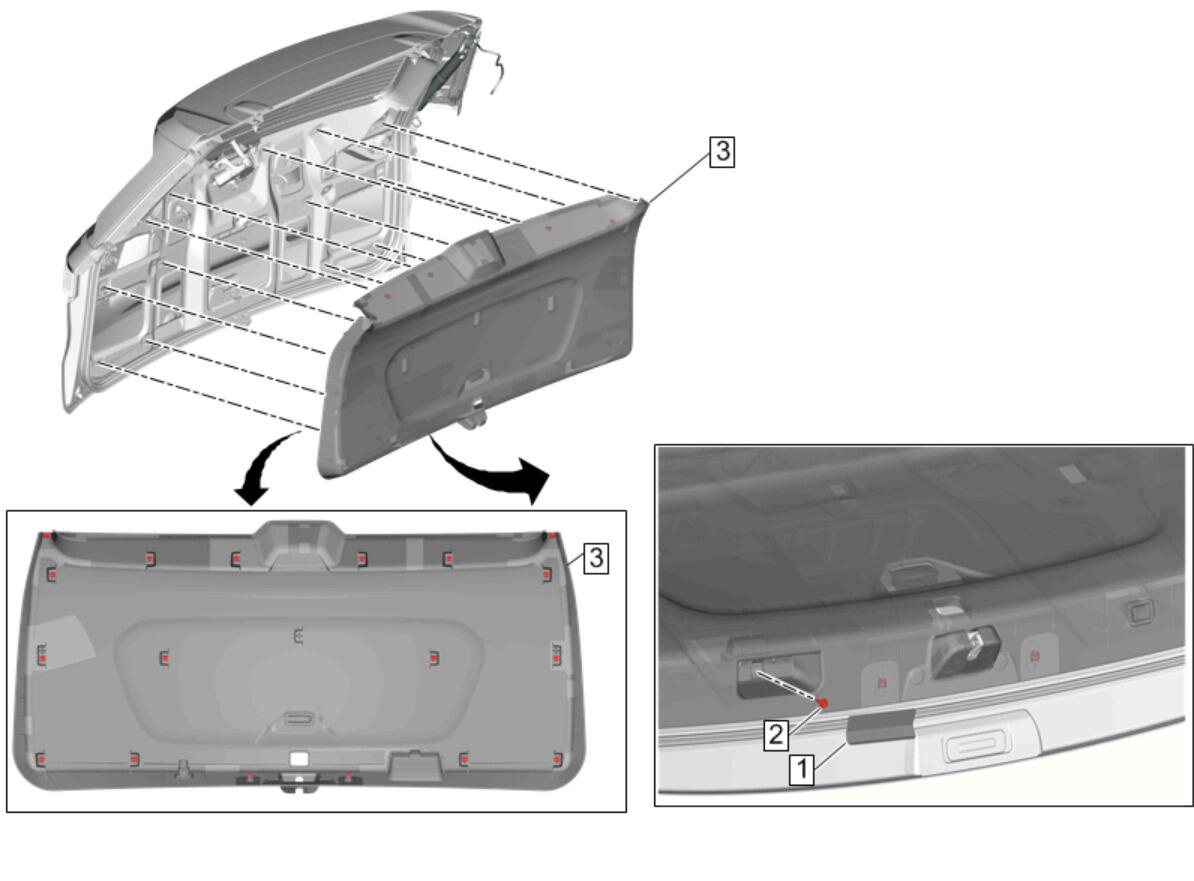

  2. GM4755895Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  3. Liftgate Lower Trim Finish Panel (3) - Install
    4. CAUTION:

    Refer to Fastener Caution .

  4. Liftgate Lower Trim Finish Panel Bolt (2) - Install and tighten - Fastener Specifications
  5. Liftgate Lower Trim Finish Panel Access Hole Cover (1) - Install
