Installation Procedure

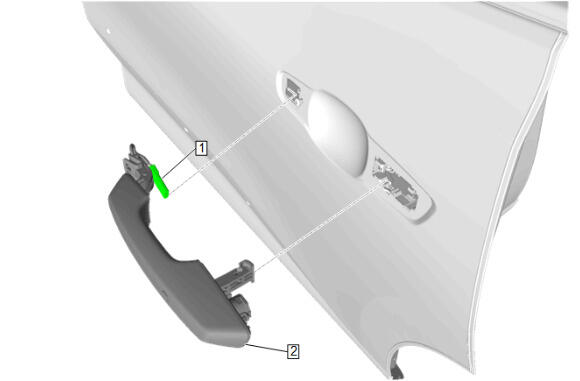

  1. GM6389462Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Outside Handle (2) - Install

  2. Connect the electrical connector (1)

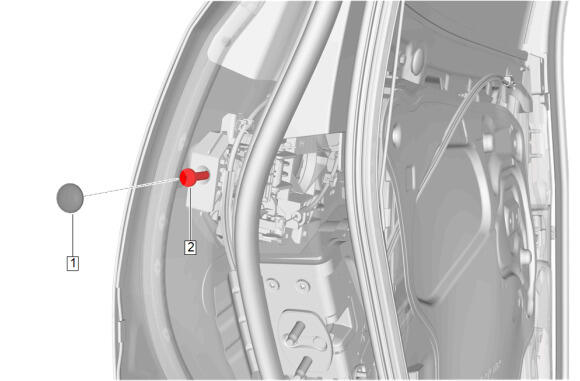

  3. GM6422824Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Rear Side Door Outside Handle Bracket Screw (2) - Install and tighten - Fastener Specifications

  4. Rear Side Door Outside Handle Access Hole Plug (1) - Install

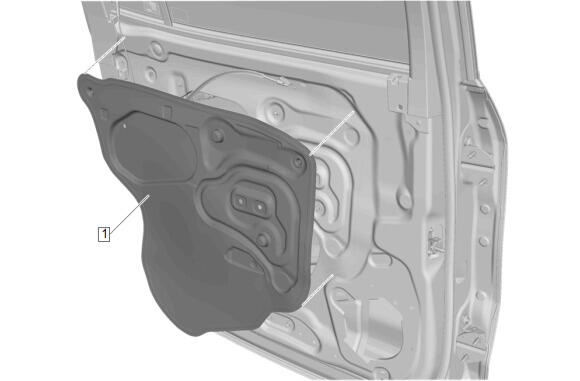

  5. GM6399536Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    When reinstalling the rear side door water deflector (1) ensure that the integral locators are installed properly and that the rear side door water deflector (1) is secured and leakproof.

    Route the rear side door inside handle cable through the hole in rear side door water deflector (1) while installing it to the door.

  6. Rear Side Door Water Deflector (1) - Install

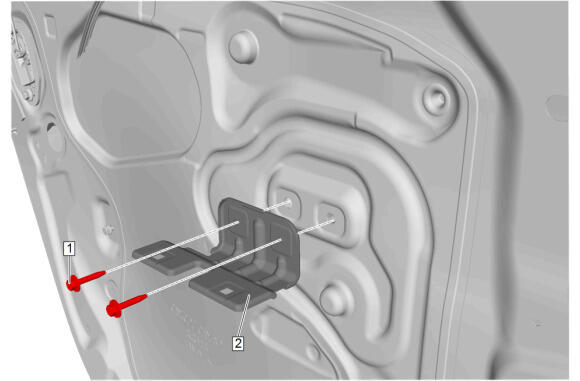

  7. GM6399533Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Armrest Pull Cup Bracket (2) - Install

  8. Rear Side Door Armrest Pull Cup Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  9. Rear Side Door Trim - Install - Rear Side Door Trim Removal and Installation
