Installation Procedure

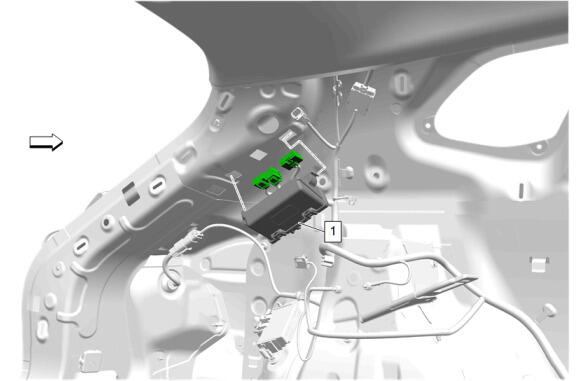

Rear Gate Module (1) - Install
- Connect the electrical connectors.
- NOTE:
Feed the rear seat belt through the quarter lower rear trim panel.

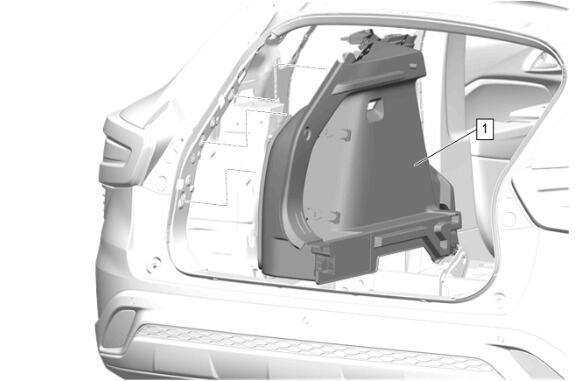

Quarter Lower Rear Trim Panel (1) - Install

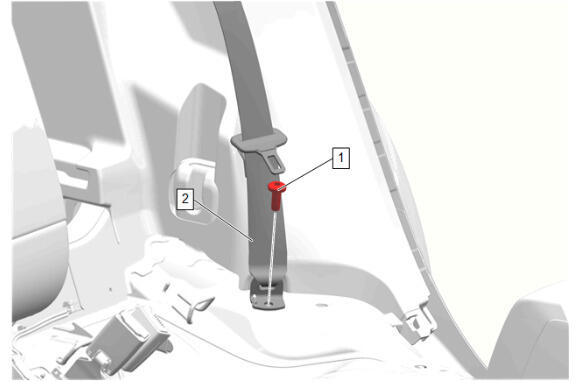

Rear Seat Belt Retractor (2) - Install
- Rear Seat Belt Retractor Bolt (1) - Install and tighten - Fastener Specifications
Rear Side Door Sill Garnish Molding (1) - Install

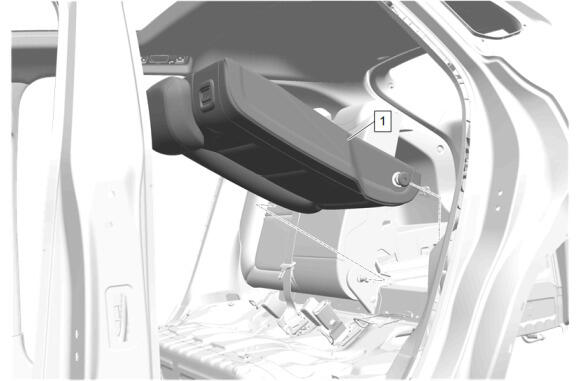

Rear Seat Back Cushion (1) - Install - Rear Seat Back Cushion Removal and Installation (40 Percent Seat) - 40%
Body Lock Pillar Upper Trim Panel (2) - Install
- Quarter Window Trim Finish Panel Bolt (1) - Install
- Close the quarter window trim finish panel bolt cap.
Connect the electrical connector.
- Rear Compartment Courtesy Lamp (1) - Install
- NOTE:
Both sides shown. The quantity is for the one side.
Cargo Tie Down Loop - Left Side (2) - Remove
- Cargo Tie Down Loop Fastener - Left Side (1) - Install and tighten - Fastener Specifications
Liftgate Sill Garnish Molding (1) - Install
Load Floor Stowage Compartment Cover (1) - Install
Luggage Shade (1) - Install
- Install the luggage shade straps to the luggage shade pivot on both sides.
- Close the liftgate.
- Perform the necessary programming and setup procedure: Control Module References
CAUTION:
Refer to Fastener Caution .
