Fastener Specifications

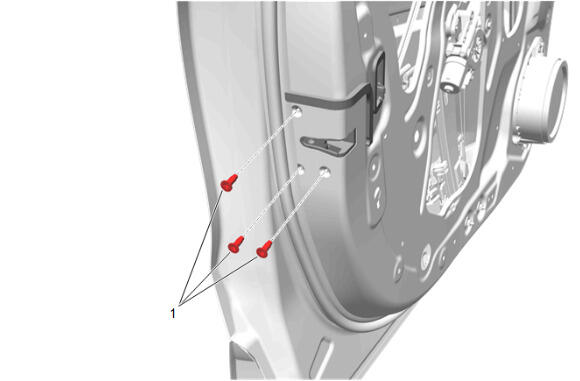

GM5925374Courtesy of GENERAL MOTORS COMPANY
Front Side Door Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Latch Bolt [3x] - - 9 N.m (80 lb in) Front Side Door Latch Replacement

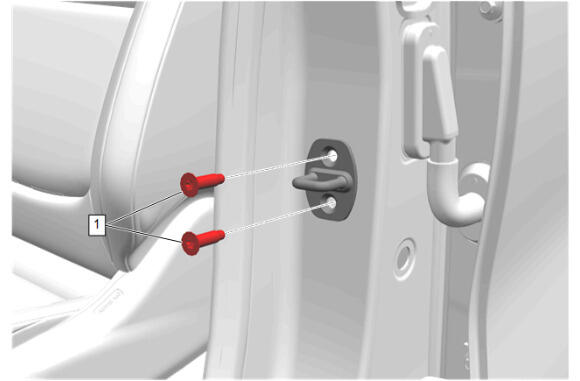

GM5757393Courtesy of GENERAL MOTORS COMPANY
Front Side Door Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Latch Striker Bolt [2x] - - 22 N.m (16 lb ft) Front Side Door Latch Striker Replacement
GM5925371Courtesy of GENERAL MOTORS COMPANY
Front Side Door Outside Handle Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Outside Handle Bracket Fastener - - 4.7 N.m (42 lb in) Front Side Door Outside Handle Bracket Replacement

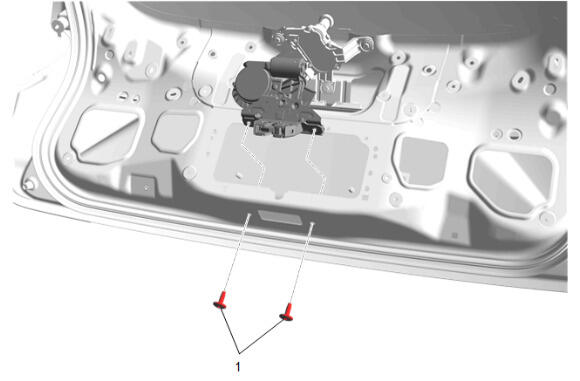

GM5949856Courtesy of GENERAL MOTORS COMPANY
Liftgate Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Latch Bolt [2x] - Yes 22 N.m (16 lb ft) Liftgate Latch Replacement

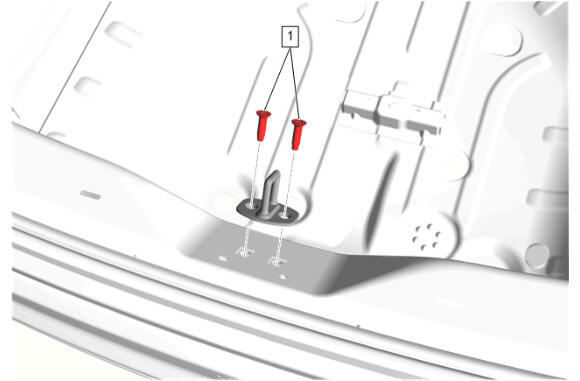

GM5949857Courtesy of GENERAL MOTORS COMPANY
Liftgate Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Latch Striker Bolt [2x] - - 22 N.m (16 lb ft) Liftgate Latch Striker Replacement

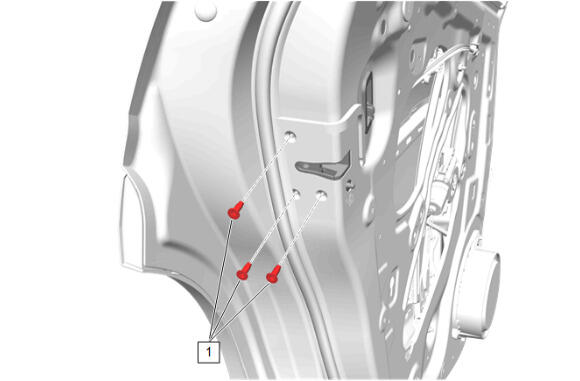

GM5925390Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Latch Bolt [3x] - - 9 N.m (80 lb in) Rear Side Door Latch Replacement

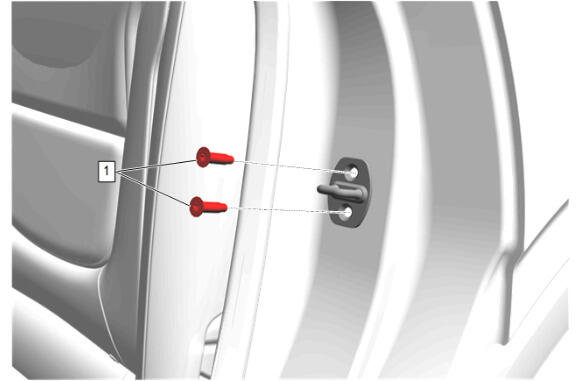

GM5757397Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Latch Striker Bolt [2x] - - 22 N.m (16 lb ft) Rear Side Door Latch Striker Replacement

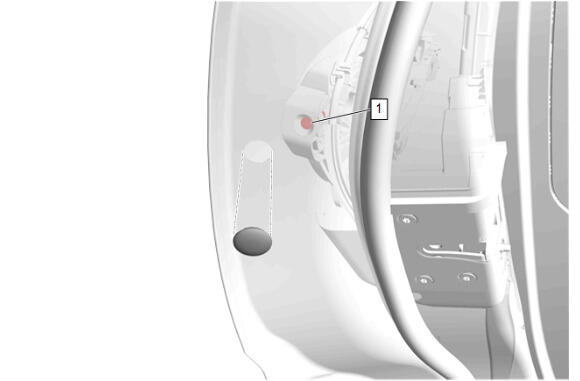

GM5757396Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Outside Handle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Outside Handle Bracket Bolt - - 4.7 N.m (42 lb in) Rear Side Door Outside Handle Replacement

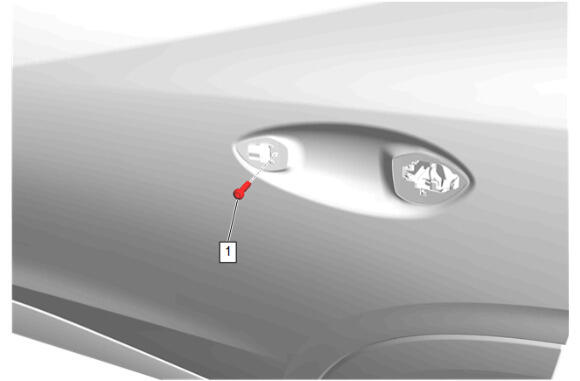

GM5925388Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Outside Handle Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Outside Handle Bracket Fastener - - 4.7 N.m (42 lb in) Rear Side Door Outside Handle Bracket Replacement
