Installation Procedure

  1. GM6166455Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Front Pipe (1) @ Vehicle - Install

  2. GM6166454Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Front Pipe (1) @ Fuel Feed Pipe - Underbody (2) - Connect - Metal Collar Quick Connect Fitting Service

  3. GM6166453Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Front Pipe (1) @ Fuel Pump (2) - Connect - Metal Collar Quick Connect Fitting Service

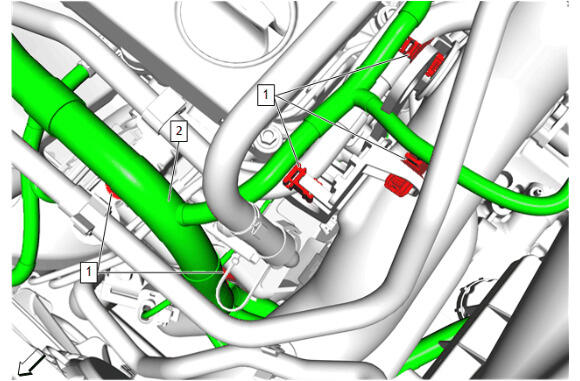

  4. GM6166452Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness (2) - Install

  5. Wiring Harness Retainer (1) - Install [5x]
