Removal Procedure

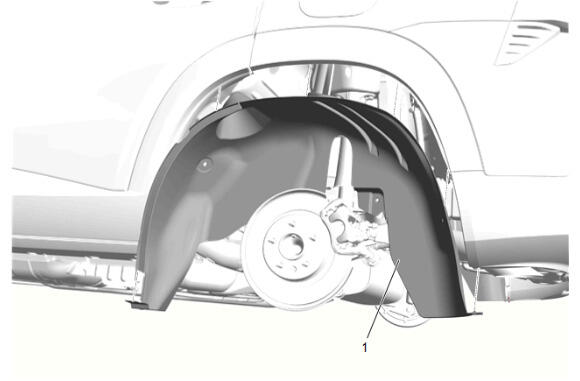

  1. GM5925337Courtesy of GENERAL MOTORS COMPANY

    Rear Wheelhouse Liner - Left Side (1) - Remove - Rear Wheelhouse Liner Replacement

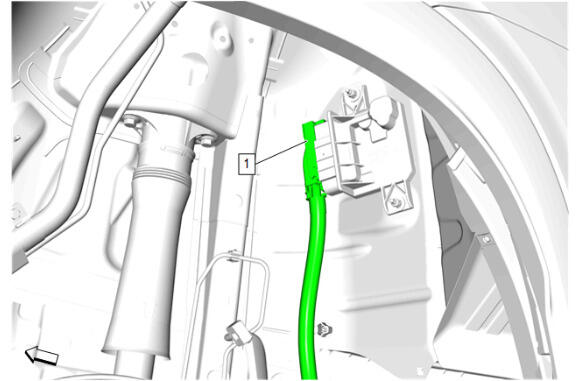

  2. GM6165861Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Disconnect

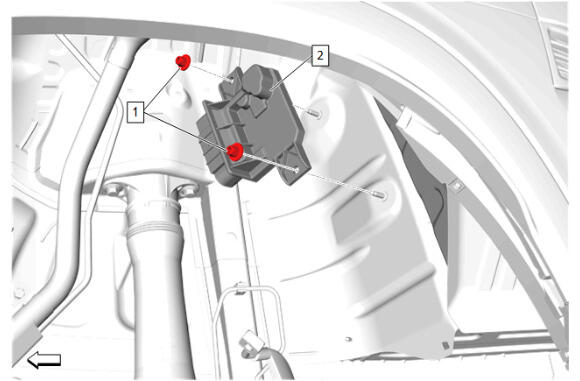

  3. GM6165862Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Power Control Module Nut (1) - Remove [2x]

  4. Fuel Pump Power Control Module (2) - Remove
