Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

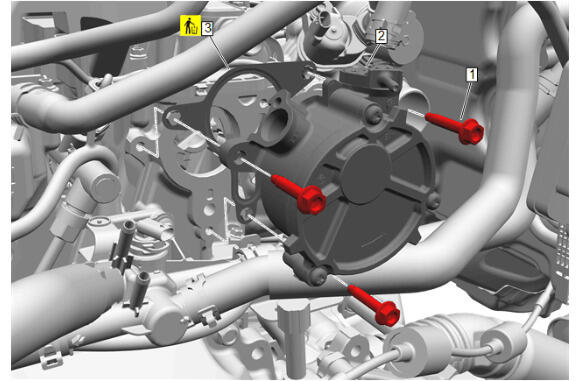

Vacuum Pump Gasket (3) - Install NEW
Vacuum Pump (2) - Install
Vacuum Pump Bolt (3) - Install and hand tighten [3x]
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

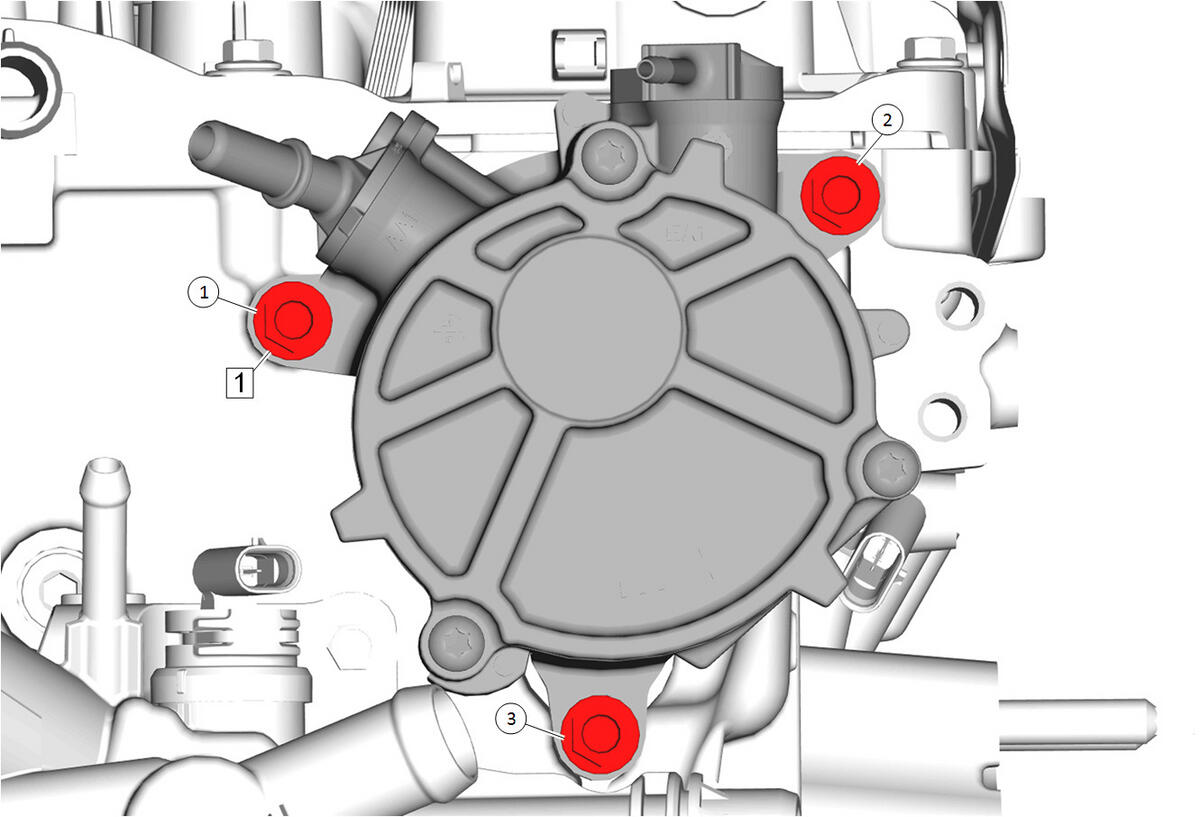

Vacuum Pump Bolt (1) - Tighten in sequence [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

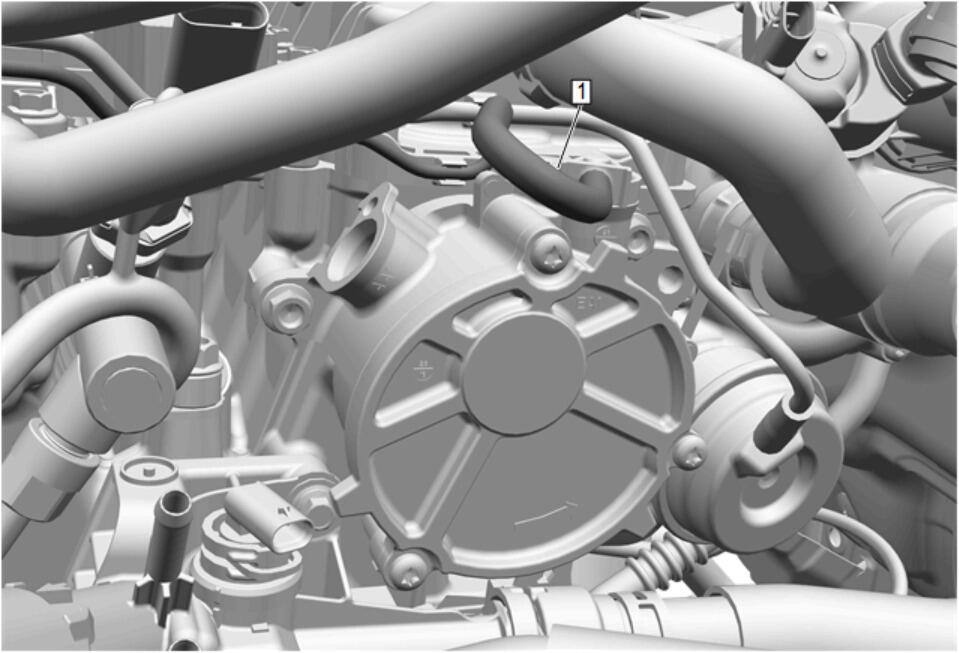

Turbocharger Wastegate Actuator Vacuum Control Solenoid Valve Hose (1) @ Vacuum Pump - Install
Courtesy of GENERAL MOTORS COMPANY

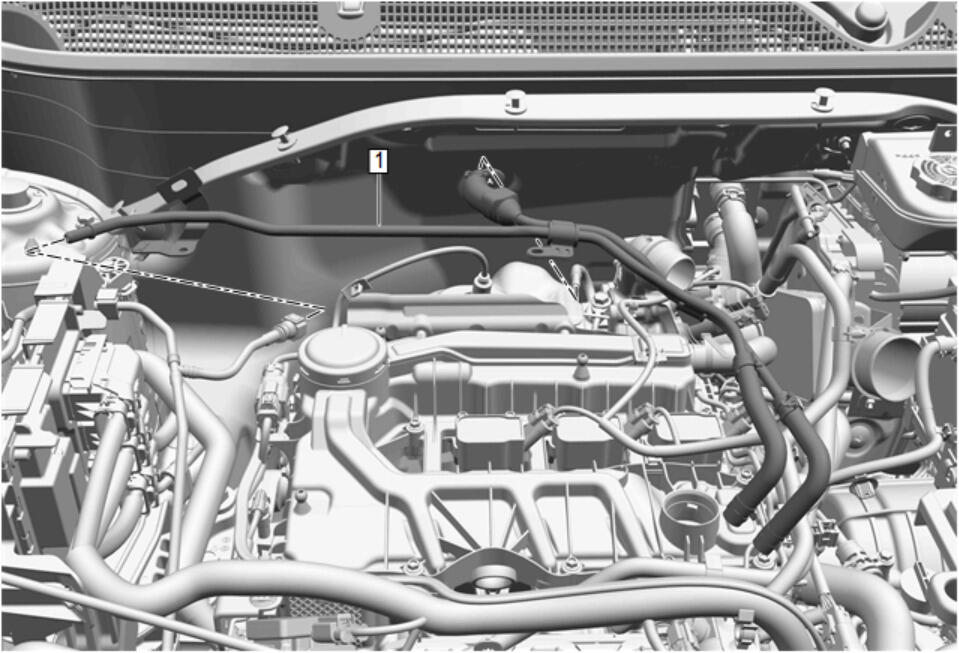

Turbocharger Coolant Return Pipe (2) - Install
Courtesy of GENERAL MOTORS COMPANY

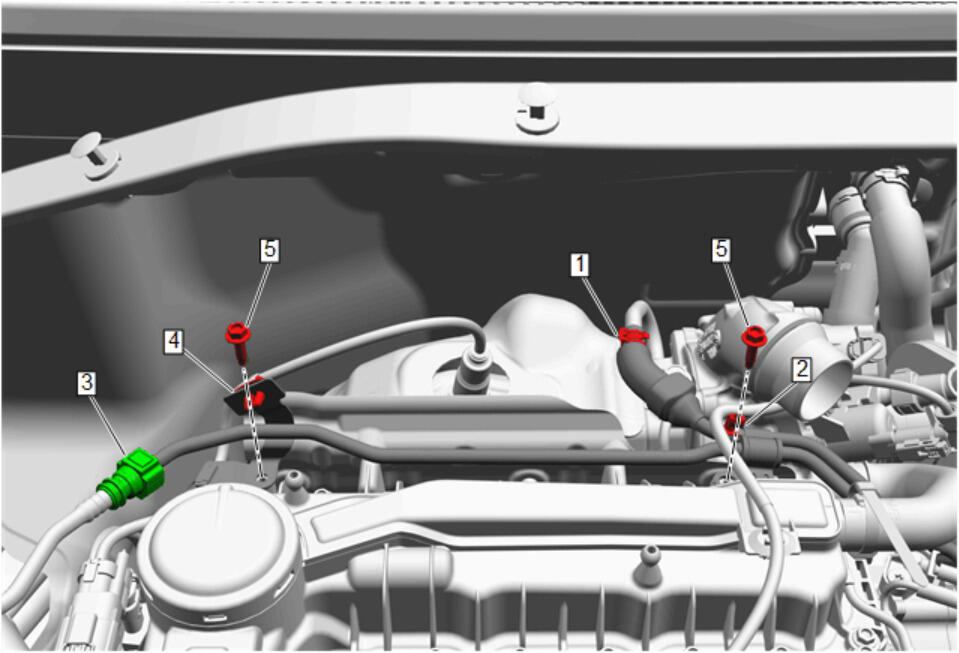

Turbocharger Coolant Return Pipe Bolt (5) - Install and tighten [2x] - Fastener Specifications
Engine Coolant Air Bleed Hose (3) @ Turbocharger Coolant Return Pipe - Install
Retainer (2, 4) - Connect

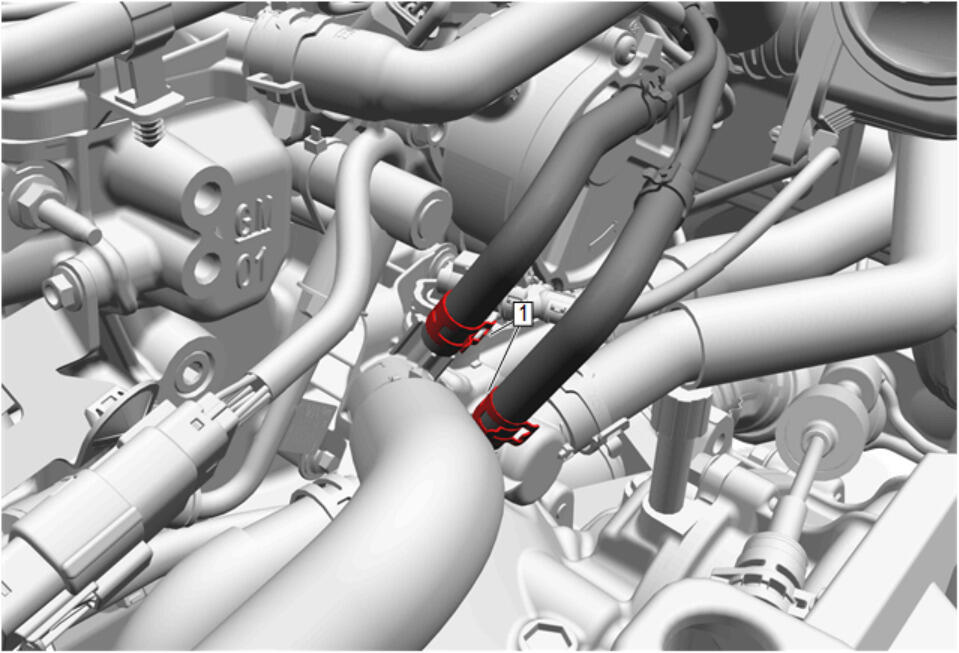

Turbocharger Coolant Return Hose Clamp (1) @ Compressor Air Intake Turbocharger - Engage - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

Turbocharger Coolant Return Hose Clamp (1) @ Compressor Air Intake Turbocharger - Engage - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

Turbocharger Coolant Return Hose Clamp (1) @ Water Outlet - Engage - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Inlet Air Hose @ Turbocharger Assembly - Install
Charge Air Cooler Inlet Air Hose Retainer Spring (1) - Engage
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Inlet Air Hose Clamp Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Tube Clip (2) - Install [2x]
Wiring Harness Retainer (1) - Install [3x]
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Rear Duct (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Retainer Spring (4) - Engage
Positive Crankcase Ventilation Oil Separator Hose (3) @ Air Cleaner Outlet Rear Duct - Install
Hose Clamp (2) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Wiring Harness Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Front Duct (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct Clamp (2) - Tighten - Fastener Specifications
Air Cleaner Clamp (1) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Assembly (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Front Duct (2) @ Air Cleaner Assembly (3) - Install
Air Cleaner Clamp (1) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Wiring Harness Retainer (2) - Install
Electrical Connector (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

Turbocharger Wastegate Actuator Vacuum Control Solenoid Valve Filter Hose (1) @ Air Cleaner Assembly (2) - Install
Courtesy of GENERAL MOTORS COMPANY

Intake Air Duct (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Intake Air Duct Retainer (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover (3) - Install
Oil Filler Cap Seal (2) - Install
Oil Filler Cap (1) - Install
Fill the cooling system to the proper level. Cooling System Draining and Filling (GE 47716) , or Cooling System Draining and Filling (Static)
Start the engine and check for leaks.
