Fastener Specifications

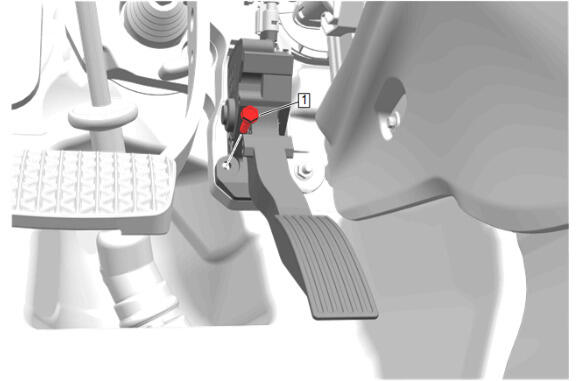

GM5950064Courtesy of GENERAL MOTORS COMPANY
Accelerator Pedal Assembly

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Accelerator Pedal Assembly Bolt - - 6 N.m (53 lb in) Accelerator Pedal Assembly Replacement
GM6196341Courtesy of GENERAL MOTORS COMPANY

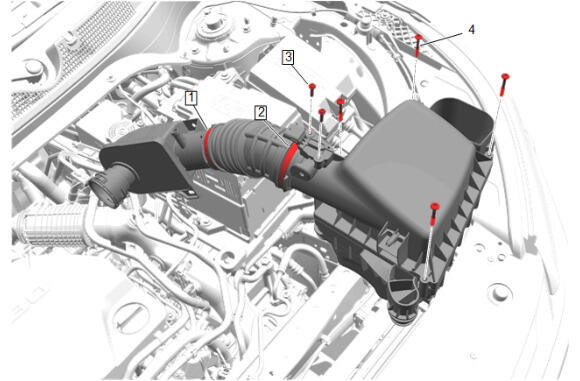

Air Cleaner Assembly with Mass Airflow Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Cleaner Outlet Duct Clamp - - 3 N.m (27 lb in) Air Cleaner Outlet Rear Duct Replacement
2 Air Cleaner Clamp - - 3 N.m (27 lb in) Air Cleaner Outlet Rear Duct Replacement
3 Mass Airflow Sensor Bolt [2x] - - 1.3 N.m (12 lb in) Mass Airflow Sensor Replacement
4 Air Cleaner Housing Cover Bolt [4x] - - 1.6 N.m (14 lb in) Air Cleaner Element Replacement

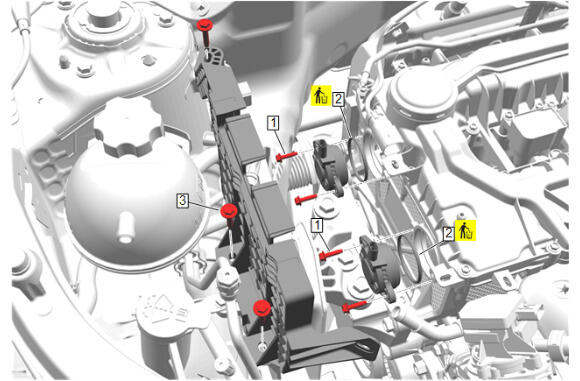

GM6196342Courtesy of GENERAL MOTORS COMPANY
Camshaft Position Actuator Solenoid Valve & Engine Control Module Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Camshaft Position Actuator Solenoid Valve Bolt [4x] - - 8.5 N.m (75 lb in) Camshaft Position Actuator Solenoid Valve Replacement - Intake
Camshaft Position Actuator Solenoid Valve Replacement - Exhaust
2 Camshaft Position Actuator Magnet Gasket [2x] Yes - - Camshaft Position Actuator Solenoid Valve Replacement - Intake
Camshaft Position Actuator Solenoid Valve Replacement - Exhaust
3 Engine Control Module Bracket Bolt [3x] - - 9 N.m (80 lb in) Engine Control Module Bracket Replacement

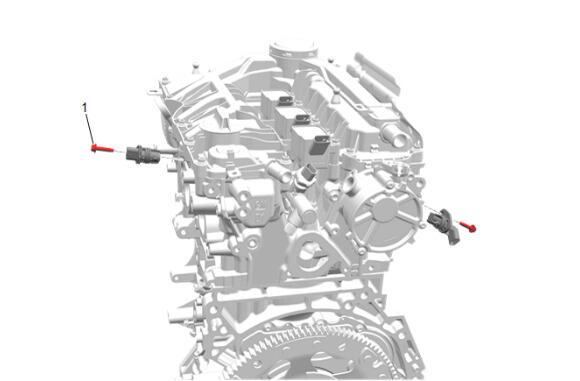

GM6196343Courtesy of GENERAL MOTORS COMPANY
Camshaft Position Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Camshaft Position Sensor Bolt [2x] - - 8.5 N.m (75 lb in) Camshaft Position Sensor Replacement - Intake
Camshaft Position Sensor Replacement - Exhaust
GM6196344Courtesy of GENERAL MOTORS COMPANY

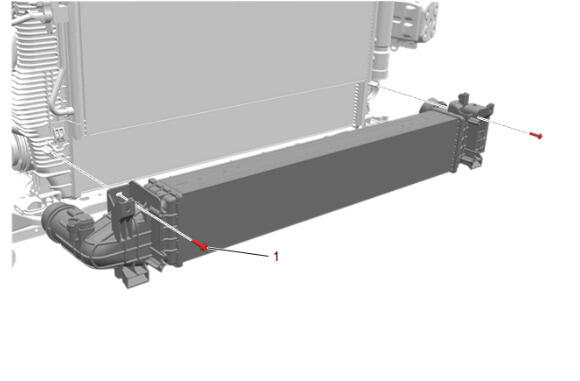

Charge Air Cooler

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Charge Air Cooler Bolt [2x] - - 3 N.m (27 lb in) Charge Air Cooler Replacement

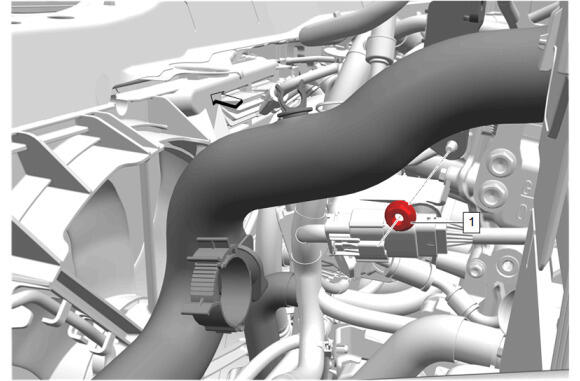

GM6178546Courtesy of GENERAL MOTORS COMPANY
Charge Air Cooler Inlet Air Hose

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Charge Air Cooler Inlet Air Hose Clamp Nut - - 6 N.m (53 lb in) Charge Air Cooler Inlet Air Hose Replacement

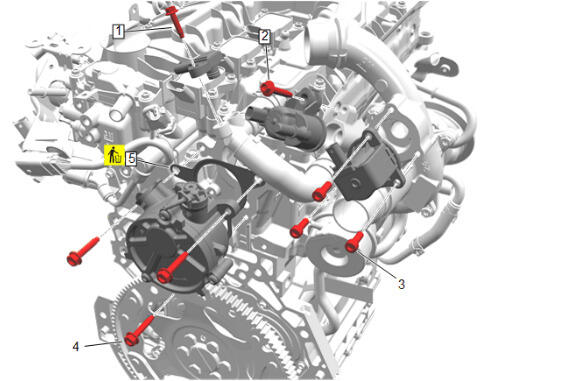

GM6196345Courtesy of GENERAL MOTORS COMPANY
Crankcase Pressure Sensor & Evaporative Emission Canister Purge Solenoid Valve & Turbocharger Bypass Valve Solenoid & Vacuum Pump

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Crankcase Pressure Sensor Bolt - - 8.5 N.m (75 lb in) Crankcase Pressure Sensor Replacement
2 Evaporative Emission Canister Purge Solenoid Valve Bolt - - 8.5 N.m (75 lb in) Evaporative Emission Canister Purge Solenoid Valve Replacement
3 Turbocharger Bypass Valve Solenoid Bolt [3x] - - 7 N.m (62 lb in) Turbocharger Bypass Valve Solenoid Replacement
4 Vacuum Pump Bolt [3x] - - 15 N.m (11 lb ft) Vacuum Pump Replacement
5 Vacuum Pump Gasket Yes - - Vacuum Pump Replacement

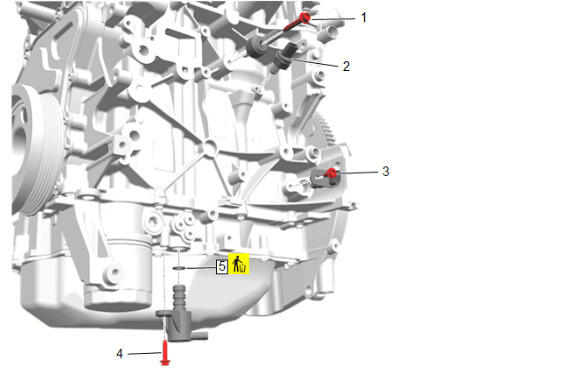

GM6196346Courtesy of GENERAL MOTORS COMPANY
Crankshaft Position Sensor & Engine Oil Pressure Sensor & Knock Sensor & Oil Pump Flow Control Solenoid Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Knock Sensor Bolt - - 15 N.m (11 lb ft) Knock Sensor Replacement
2 Engine Oil Pressure Sensor - - 35 N.m (26 lb ft) Engine Oil Pressure Sensor Replacement
3 Crankshaft Position Sensor Bolt - - 8.5 N.m (75 lb in) Crankshaft Position Sensor Replacement (KL9) , or Crankshaft Position Sensor Replacement (- KL9)
4 Oil Pump Flow Control Solenoid Valve Bolt - - 8.5 N.m (75 lb in) Oil Pump Flow Control Solenoid Valve Replacement
5 Oil Pump Flow Control Solenoid Valve Seal Yes - - Oil Pump Flow Control Solenoid Valve Replacement
GM6196347Courtesy of GENERAL MOTORS COMPANY

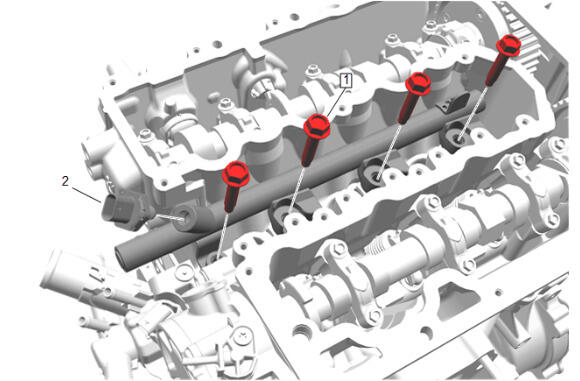

Direct Fuel Injection Fuel Rail & Fuel Rail Pressure Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Injection Fuel Rail Bolt [4x] - - Fuel Injection Fuel Rail Bolt Sequence  Direct Fuel Injection Fuel Rail Replacement
2 Fuel Rail Pressure Sensor - - 32.5 N.m (24 lb ft) Fuel Rail Pressure Sensor Replacement
GM6196348Courtesy of GENERAL MOTORS COMPANY

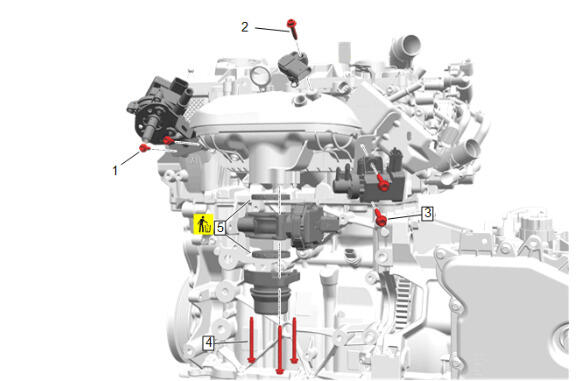

Evaporative Emission Canister Purge Pump & Intake Air Pressure and Temperature Sensor & Throttle Body Assembly & Turbocharger Wastegate Regulator Solenoid Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Evaporative Emission Canister Purge Pump Bolt [2x] - - 8.5 N.m (75 lb in) Evaporative Emission Canister Purge Pump Replacement (With Bracket) , or Evaporative Emission Canister Purge Pump Replacement (Without Bracket)
2 Intake Air Pressure and Temperature Sensor Bolt - - 8.5 N.m (75 lb in) Intake Air Pressure and Temperature Sensor Replacement
3 Turbocharger Wastegate Regulator Solenoid Valve Bolt [2x] - - 15 N.m (11 lb ft) Turbocharger Wastegate Regulator Solenoid Valve Replacement
4 Throttle Body Assembly Bolt [3x] - - 8.5 N.m (75 lb in) Throttle Body and Throttle Body Adapter Assembly Replacement
5 Throttle Body Seal [2x] Yes - - Throttle Body and Throttle Body Adapter Assembly Replacement
GM6473019Courtesy of GENERAL MOTORS COMPANY

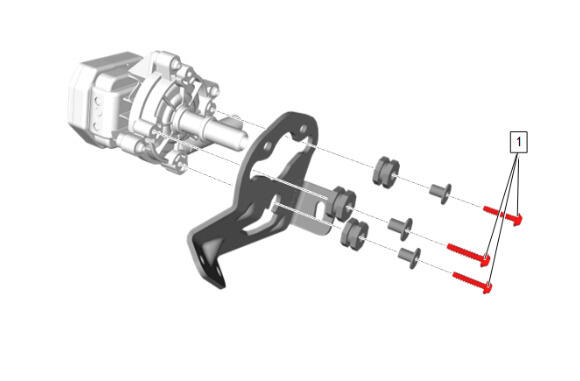

Evaporative Emission Canister Purge Pump Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Evaporative Emission Canister Purge Pump Bolt [3x] - - 1.8 N.m (16 lb in) Evaporative Emission Canister Purge Pump Bracket Replacement
GM6196349Courtesy of GENERAL MOTORS COMPANY

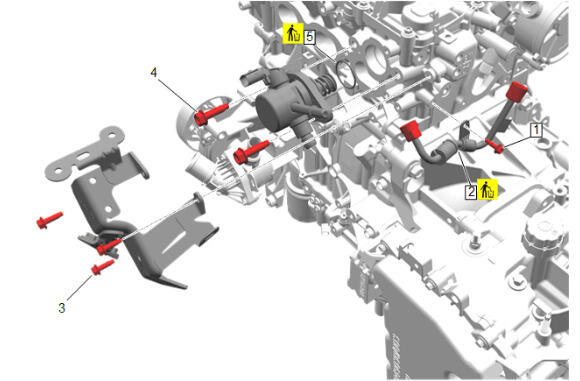

Fuel Feed Intermediate Pipe & Fuel Pump & Fuel Pump Cover

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Feed Intermediate Pipe Bolt - - 8.5 N.m (75 lb in) Fuel Feed Intermediate Pipe Replacement
2 Fuel Feed Intermediate Pipe Yes - 30 N.m (22 lb ft) Fuel Feed Intermediate Pipe Replacement
3 Fuel Pump Shield Bolt [3x] - - 8.5 N.m (75 lb in) Fuel Pump Cover Replacement
4 Fuel Pump Bolt [2x] - - 36 N.m (27 lb ft) Fuel Pump Replacement
5 Fuel Pump Housing Seal Yes - - Fuel Pump Replacement

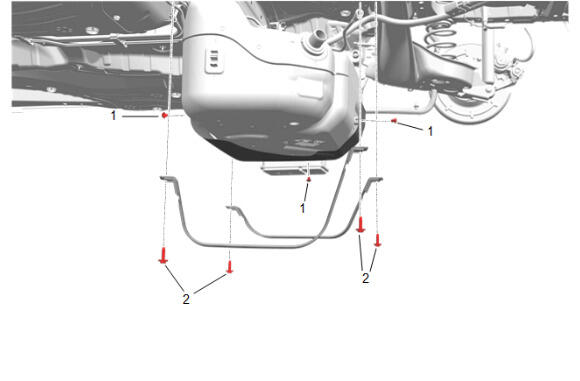

GM6196350Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Shield & Fuel Tank Strap

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Tank Shield Nut [3x] - - 2 N.m (18 lb in) Fuel Tank Shield Replacement
2 Fuel Tank Strap Bolt [4x] - - 22 N.m (16 lb ft) Fuel Tank Replacement
GM6196351Courtesy of GENERAL MOTORS COMPANY

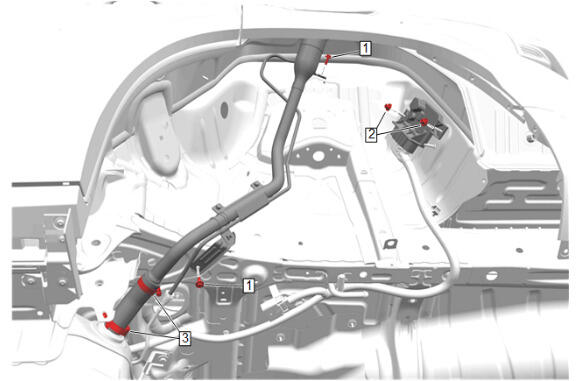

Fuel Pump Power Control Module & Fuel Tank Filler Pipe & Fuel Tank Filler Hose

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Tank Filler Pipe Bolt [2x] - - 9 N.m (80 lb in) Fuel Tank Filler Pipe Replacement
2 Fuel Pump Power Control Module Nut [2x] - - 5 N.m (44 lb in) Fuel Pump Power Control Module Replacement
3 Fuel Tank Filler Hose Clamp [2x] - - 5 N.m (44 lb in) Fuel Tank Filler Hose Replacement

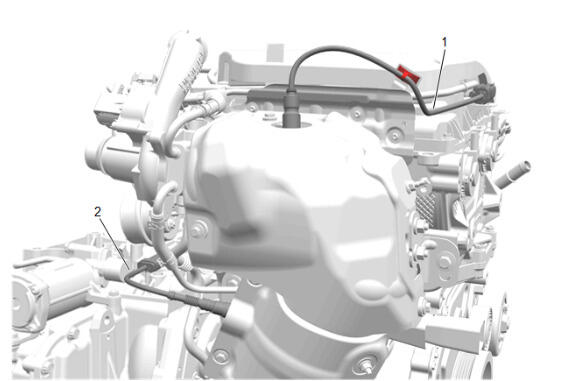

GM6196352Courtesy of GENERAL MOTORS COMPANY
Heated Oxygen Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heated Oxygen Sensor-Sensor 1 - - 42 N.m (31 lb ft) Heated Oxygen Sensor Replacement - Sensor 1
2 Heated Oxygen Sensor-Sensor 2 - - 42 N.m (31 lb ft) Heated Oxygen Sensor Replacement - Sensor 2

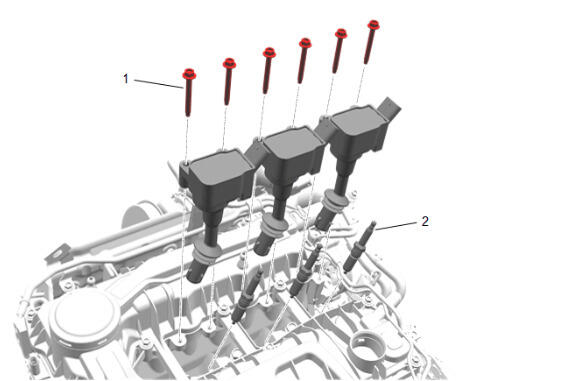

GM6196353Courtesy of GENERAL MOTORS COMPANY
Ignition Coil & Gas Engine Ignition Spark Plug

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Ignition Coil Bolt [6x] - - 8.5 N.m (75 lb in) Ignition Coil Replacement
2 Gas Engine Ignition Spark Plug [3x] - - 16 N.m (12 lb ft) Gas Engine Ignition Spark Plug Replacement
GM6196354Courtesy of GENERAL MOTORS COMPANY

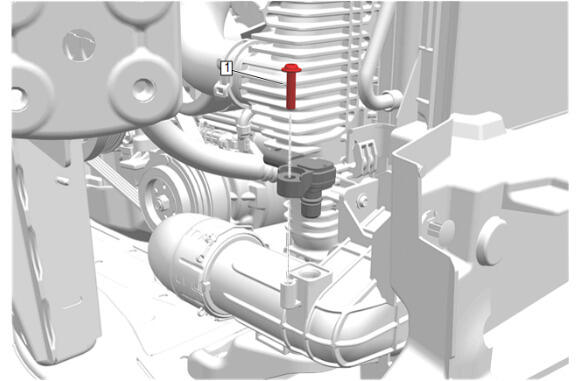

Throttle Inlet Absolute Pressure Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Throttle Inlet Absolute Pressure Sensor Bolt - - 3 N.m (27 lb in) Throttle Inlet Absolute Pressure Sensor Replacement

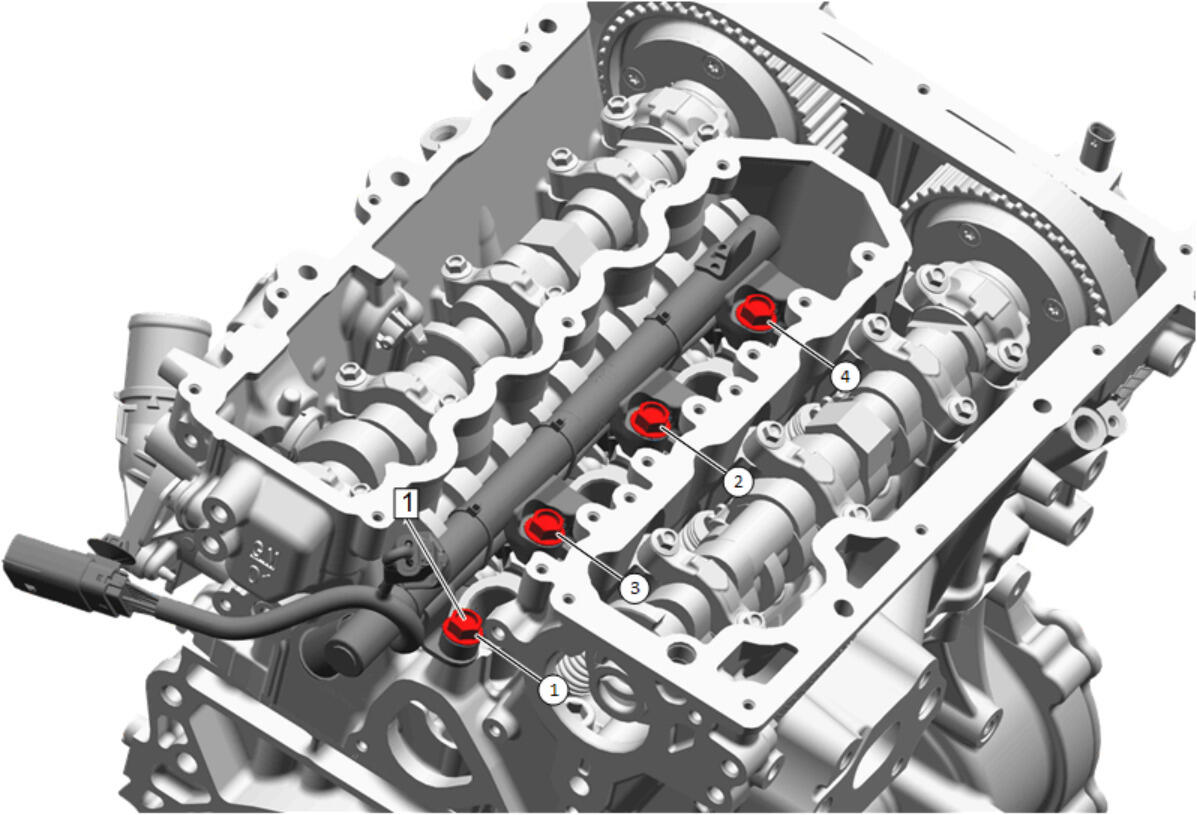

Fuel Injection Fuel Rail Bolt Sequence
GM5389552Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Injection Fuel Rail Bolt [4x] - - 36 N.m (27 lb ft) Direct Fuel Injection Fuel Rail Replacement
