Fastener Specifications

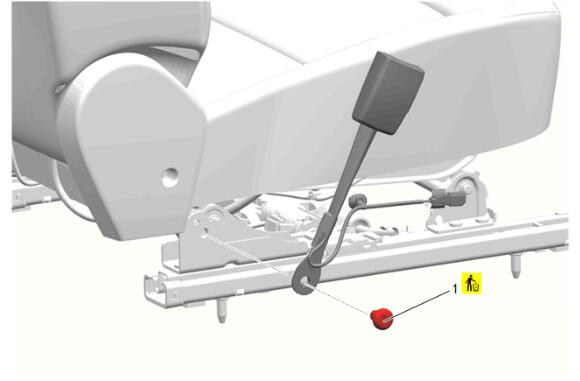

Front Seat Belt Buckle
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Belt Buckle Bolt | Yes | Yes | 45 N.m (33 lb ft) | Front Seat Belt Buckle Replacement |

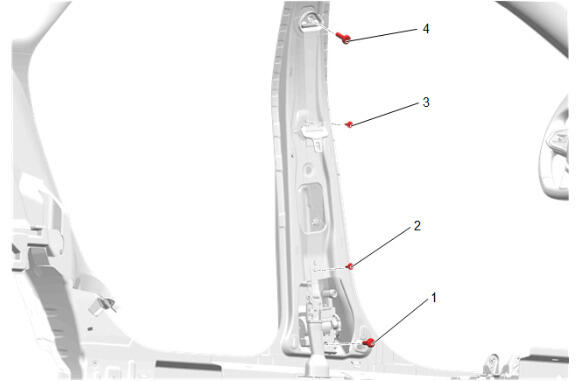

Front Seat Belt Retractor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Belt Retractor Bolt - Lower | - | - | 45 N.m (33 lb ft) | Front Seat Belt Retractor Replacement |
| 2 | Front Seat Belt Retractor Bolt - Middle | - | - | 9 N.m (80 lb in) | Front Seat Belt Retractor Replacement |
| 3 | Front Seat Belt Retractor Bolt - Upper | - | - | 9 N.m (80 lb in) | Front Seat Belt Retractor Replacement |
| 4 | Front Seat Belt Retractor D Ring Bolt | - | - | 45 N.m (33 lb ft) | Front Seat Belt Retractor Replacement |

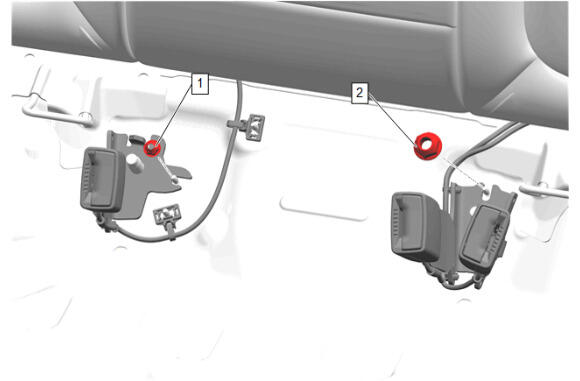

Rear Seat Belt Buckle
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Seat Belt Buckle Nut @ Rear Center Seat Belt Buckle | - | - | 9 N.m (80 lb in) | Rear Center Seat Belt Buckle Replacement |
| 2 | Rear Seat Belt Buckle Nut @ Rear Seat Belt Buckle | - | - | 45 N.m (33 lb ft) | Front Seat Belt Buckle Replacement |

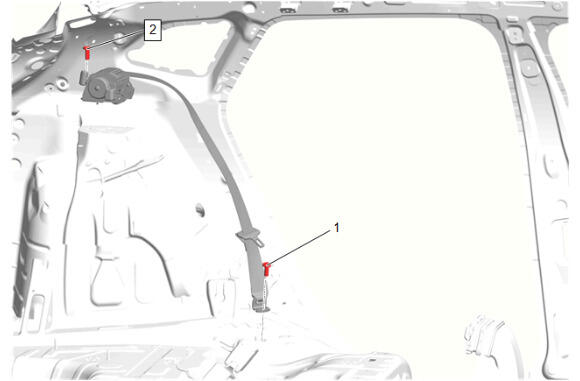

Rear Seat Belt Retractor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Seat Belt Retractor Bolt @ Rear Floor Panel | - | - | 45 N.m (33 lb ft) | Quarter Lower Rear Trim Panel Replacement - Left Side (- K1T) , or Quarter Lower Rear Trim Panel Replacement - Left Side (K1T) |
| Quarter Lower Rear Trim Panel Replacement - Right Side (- K1T) , or Quarter Lower Rear Trim Panel Replacement - Right Side (K1T) | |||||
| 2 | Rear Seat Belt Retractor Bolt @ Rear Seat Belt Retractor | - | - | 45 N.m (33 lb ft) | Rear Seat Belt Retractor Replacement |

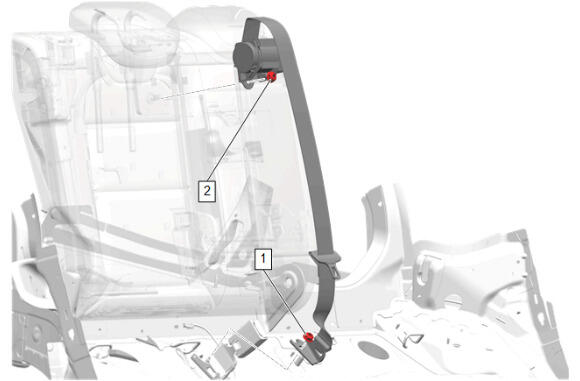

Rear Seat Center Belt Retractor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Seat Center Belt Nut @ Rear Center Seat Belt Buckle | - | - | 45 N.m (33 lb ft) | Rear Seat Cushion Removal and Installation |
| 2 | Rear Seat Center Belt Nut @ Rear Seat Center Belt Retractor | - | - | 45 N.m (33 lb ft) | Rear Seat Center Belt Retractor Replacement |
