Fastener Specifications

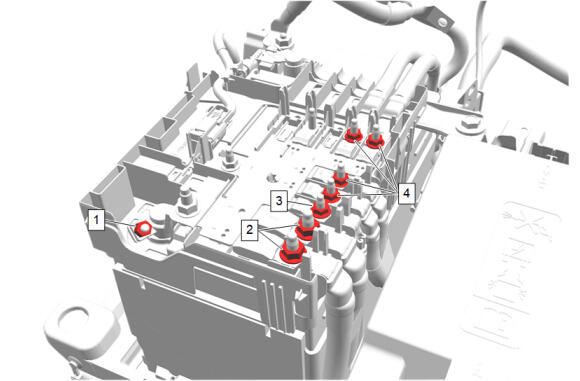

GM5961796

Courtesy of GENERAL MOTORS COMPANY

Battery Distribution Fuse Block

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Battery Positive Post Clamp Nut	-	-	5 N.m (44 lb in)	Battery Distribution Engine Compartment Fuse Block Replacement
2	Battery Positive Cable Nut [2x]	-	-	15 N.m (11 lb ft)
3	Engine Wiring Harness Terminal Nut	-	-	9 N.m (80 lb in)
4	Body Wiring Harness Terminal Nut [4x]	-	-	9 N.m (80 lb in)

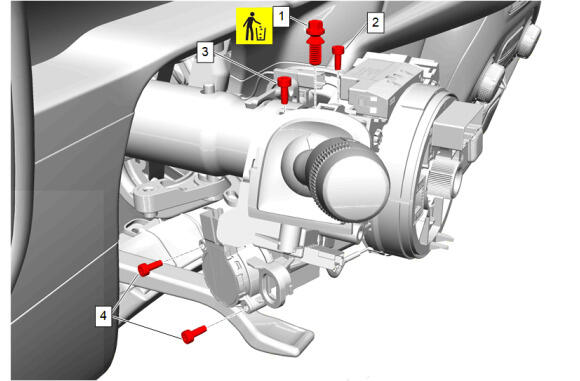

GM5642011

Courtesy of GENERAL MOTORS COMPANY

Ignition Components

Callout	Component Name [Component Quantity]	Single Use Fastener / Component	Thread Locking Adhesive Required	Specification	Procedure Link
Callout	Component Name [Component Quantity]	Single Use Fastener / Component	Thread Locking Adhesive Required	Metric (English)	Procedure Link
1	Ignition and Start Switch Housing Bolt	Yes	-	Tighten until the bolt head breaks off.	Ignition and Start Switch Housing Replacement
2	Ignition and Start Switch Housing Bolt-Right Side	-	-	2.5 N.m (22 lb in)	Ignition and Start Switch Housing Replacement
3	Ignition and Start Switch Housing Bolt-Left Side	-	-	2.5 N.m (22 lb in)	Ignition and Start Switch Housing Replacement
4	Ignition and Start Switch Bolt [2x]	-	-	1.8 N.m (16 lb in)	Ignition and Start Switch Replacement (BTM) , or Ignition and Start Switch Replacement (- BTM)
