Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

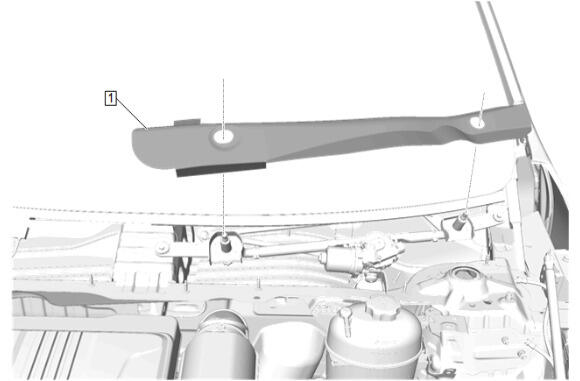

Windshield Wiper System Module Shield (1) - Install
Courtesy of GENERAL MOTORS COMPANY

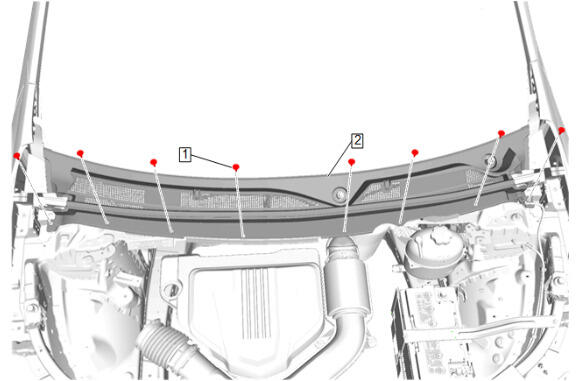

Air Inlet Grille Panel (2) - Install
Windshield Washer Nozzle Hose @ Windshield Washer Pump Hose - Connect
Air Inlet Grille Panel Retainer (1) - Install [8x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

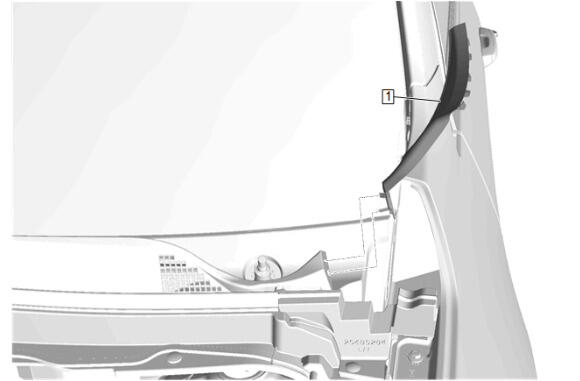

Hood Rear Outer Air Inlet Seal (2) - Install [2x]
Hood Rear Outer Air Inlet Seal Retainer (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

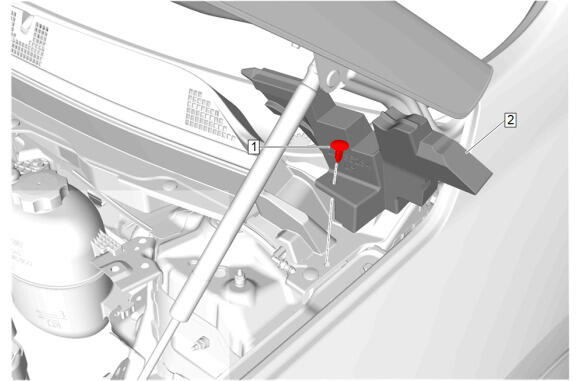

Air Inlet Grille Panel Extension (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

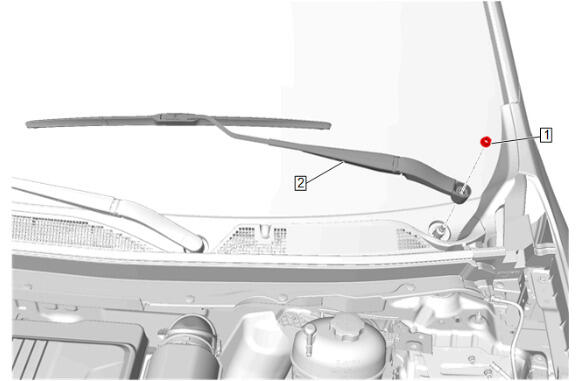

Windshield Wiper Arm (2) - Install [2x]

CAUTION:

Windshield Wiper Arm Nut (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

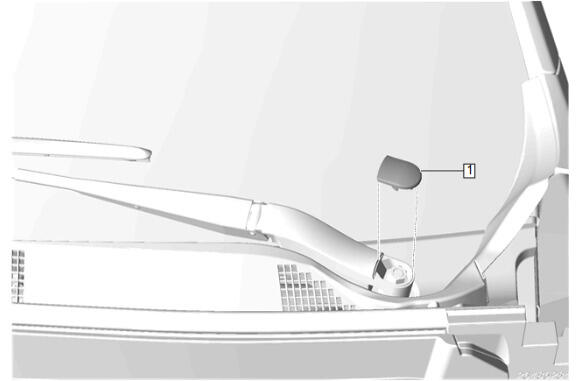

Windshield Wiper Arm Finish Cap (1) - Install [2x]
If required, realign the windshield wipers to their respective alignment circles on the windshield.
Lubricate the windshield with clean washer fluid.
Run the windshield wipers for two complete cycles then turn off the windshield wipers.
Ensure the windshield wipers are in the full park position.
