Behind Instrument Panel Components

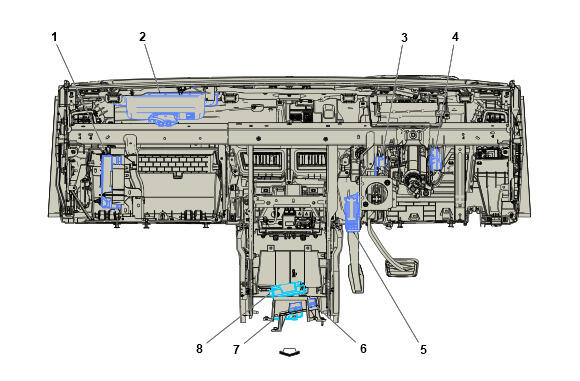

GM6432572Courtesy of GENERAL MOTORS COMPANY
Items
1. A11 Radio A11 Radio X1 , or A11 Radio X10 (- UKL) , or A11 Radio X10 (UKL) , or A11 Radio X2 , or A11 Radio X3 , or A11 Radio X4 , or A11 Radio X5 (IVE) , or A11 Radio X6 (IVE) , or A11 Radio X7 (IVE) , or A11 Radio X8 , or A11 Radio X9
2. F101 Passenger Instrument Panel Air Bag F101 Instrument Panel Airbag
3. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor
4. K99 Steering Column Position Control Module (N38) K99 Steering Column Control Module X1 , or K99 Steering Column Control Module X2
5. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
6. K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7 , or K9 Body Control Module X8
7. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Restraints Control Module X1 , or K36 Restraints Control Module X2
8. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2 , or K56 Serial Data Gateway Module X3
