Lower Center Console Components

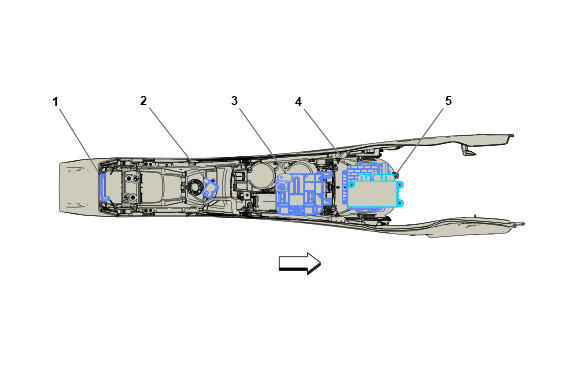

GM6200826Courtesy of GENERAL MOTORS COMPANY
Items
1. T10K Keyless Entry Antenna - Center Console Rear (BTM) T10K Keyless Entry Antenna - Center Console Rear
2. K89 Immobilizer Control Module (BTM / -BTM) K89 Immobilizer Control Module (- BTM) , or K89 Immobilizer Control Module (BTM)
3. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2
4. T22 Mobile Device Wireless Charger Module (K4C) T22 Mobile Device Wireless Charger Module
5. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 , or K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AWZ) , or K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AY0)
