Upper Center Console Components

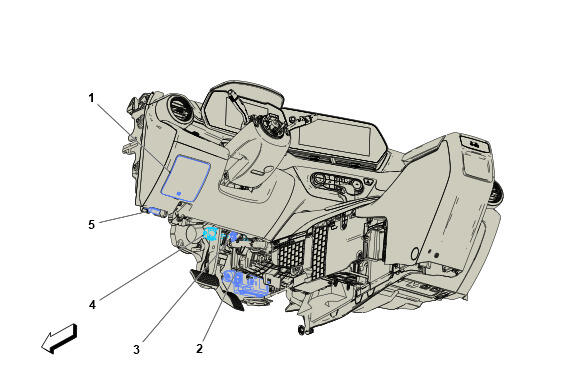

GM6200827Courtesy of GENERAL MOTORS COMPANY
Items
1. X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel , or X51A Fuse Block - Instrument Panel, Wire Entry
2. K84 Keyless Entry Control Module (BTM) K84 Keyless Entry Control Module X1 , or K84 Keyless Entry Control Module X2
3. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
4. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor
5. X84 Data Link Connector X84 Data Link Connector
