Installation Procedure

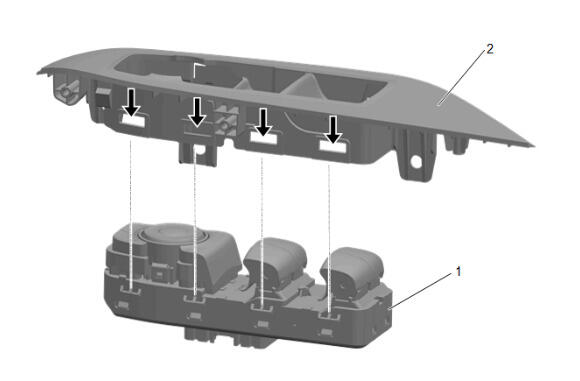

  1. GM6176192Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Control Switch (1) @ Front Side Door Armrest Switch Mount Plate (2) - Install

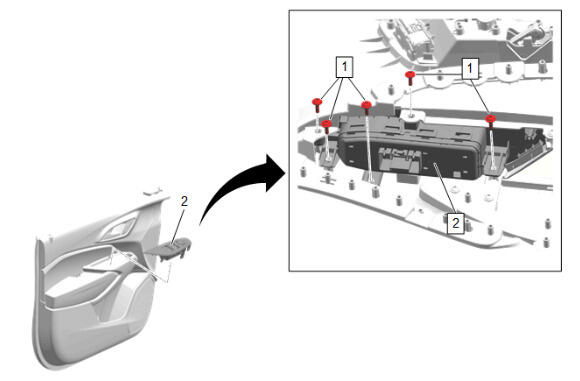

  2. GM6176191Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Armrest Switch Mount Plate (2) - Install

    3. CAUTION:

    Refer to Fastener Caution .

  3. Front Side Door Trim Bolt (1) - Install and tighten [5x] - Fastener Specifications

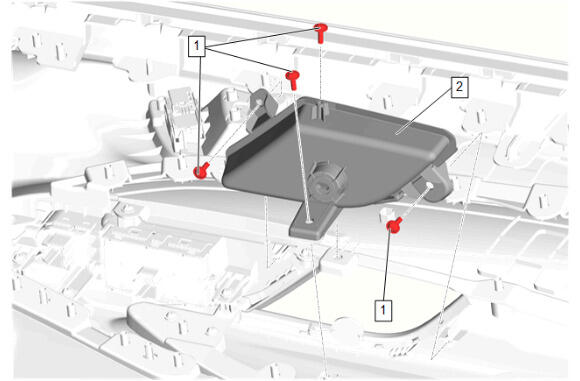

  4. GM5918604Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Armrest Pull Cup (2) - Install

  5. Front Side Door Trim Bolt (1) - Install and tighten [4x] - Fastener Specifications

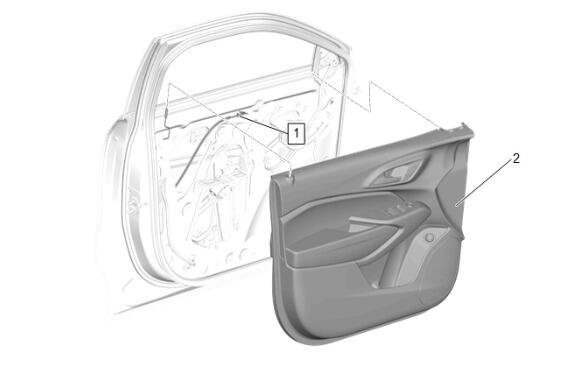

  6. GM5918550Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Trim (2) - Install - Front Side Door Trim Removal and Installation
