Installation Procedure

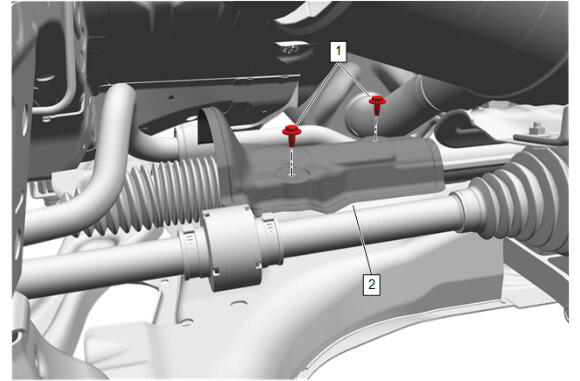

  1. GM5925662Courtesy of GENERAL MOTORS COMPANY

    Steering Gear Heat Shield (2) - Install

    2. CAUTION:

    Fastener Caution

  2. Steering Gear Heat Shield Bolt (1) - Install and tighten [2x] - Fastener Specifications

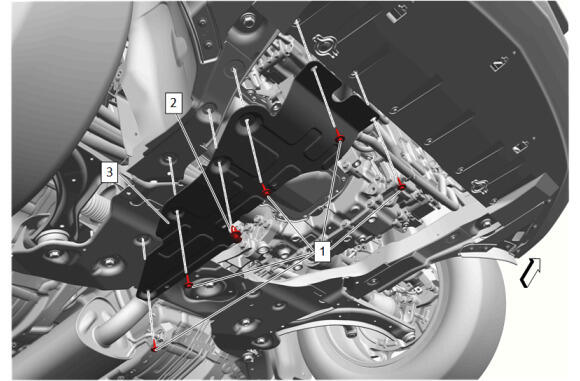

  3. GM5914630Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Splash Shield (3) - Install

  4. Front Compartment Splash Shield Retainer (2) - Install [2x]
  5. Front Compartment Splash Shield Bolt (1) - Install and tighten [5x] - Fastener Specifications
  6. Lower the vehicle.
