Fastener Specifications

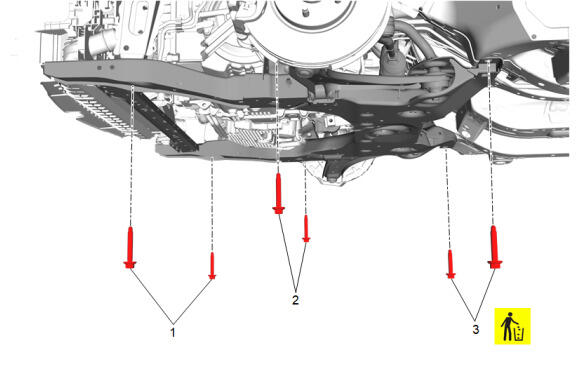

GM5951610Courtesy of GENERAL MOTORS COMPANY
Drivetrain and Front Suspension Cradle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drivetrain and Front Suspension Cradle Front Bolt [2x] - - First Pass: 90 N.m (66 lb ft)
Final Pass: 30 - 45 degrees		 Drivetrain and Front Suspension Cradle Removal and Installation
2 Drivetrain and Front Suspension Cradle Intermediate Bolt [2x] - - First Pass: 90 N.m (66 lb ft)
Final Pass: 30 - 45 degrees		 Drivetrain and Front Suspension Cradle Removal and Installation
3 Drivetrain and Front Suspension Cradle Rear Bolt [2x] Yes - First Pass: 140 N.m (103 lb ft)
Final Pass: 60 - 75 degrees		 Drivetrain and Front Suspension Cradle Removal and Installation

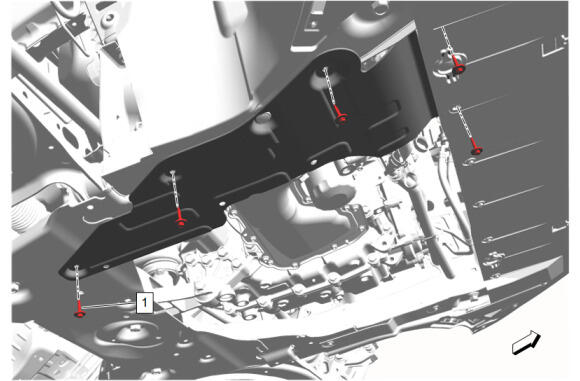

GM5951608Courtesy of GENERAL MOTORS COMPANY
Front Compartment Splash Shield

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Compartment Splash Shield Bolt [5x] - - 2.5 N.m (22 lb in) Front Compartment Splash Shield Replacement

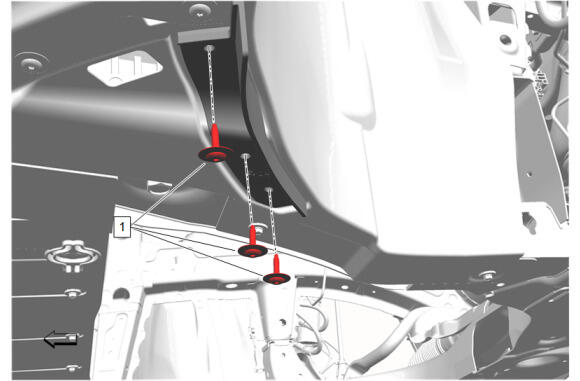

GM5951611Courtesy of GENERAL MOTORS COMPANY
Front Tire Front Air Deflector

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Tire Front Air Deflector Bolt [3x] - - 2.5 N.m (22 lb in) Front Tire Front Air Deflector Replacement

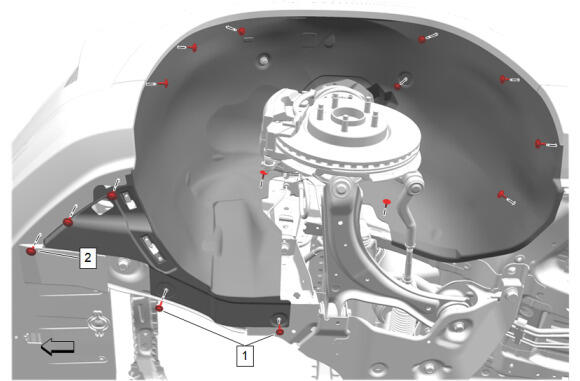

GM5951612Courtesy of GENERAL MOTORS COMPANY
Front Wheelhouse Liner - Left Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Compartment Splash Shield Bolt [2x] - - 2.5 N.m (22 lb in) Front Wheelhouse Liner Replacement - Left Side
2 Front Wheelhouse Liner Bolt [13x] - - 2.5 N.m (22 lb in) Front Wheelhouse Liner Replacement - Left Side

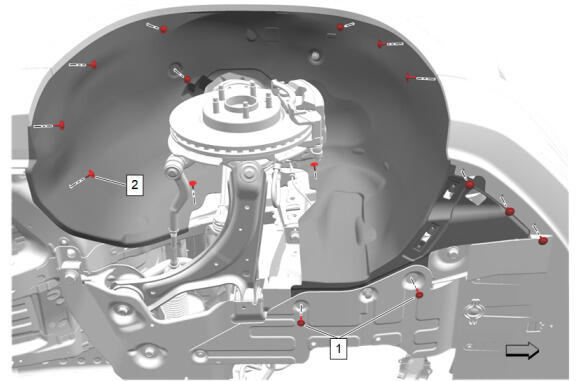

GM5951614Courtesy of GENERAL MOTORS COMPANY
Front Wheelhouse Liner - Right Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Compartment Splash Shield Bolt [2x] - - 2.5 N.m (22 lb in) Front Wheelhouse Liner Replacement - Right Side
2 Front Wheelhouse Liner Bolt [13x] - - 2.5 N.m (22 lb in) Front Wheelhouse Liner Replacement - Right Side

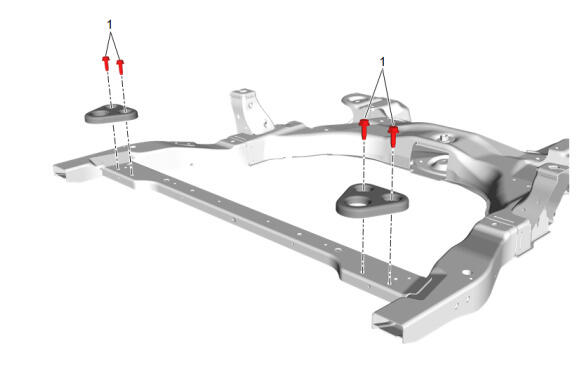

GM5951609Courtesy of GENERAL MOTORS COMPANY
Radiator Lower Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Lower Bracket Bolt [4x] - - 22 N.m (16 lb ft) Drivetrain and Front Suspension Cradle Replacement

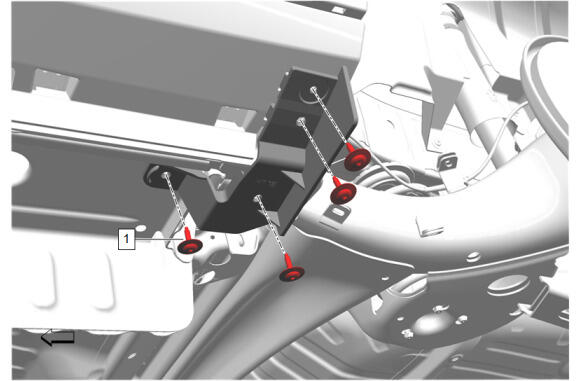

GM5951615Courtesy of GENERAL MOTORS COMPANY
Rear Tire Front Air Deflector

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Tire Front Air Deflector Bolt [4x] - - 2.5 N.m (22 lb in) Rear Tire Front Air Deflector Replacement - Left Side
Rear Tire Front Air Deflector Replacement - Right Side

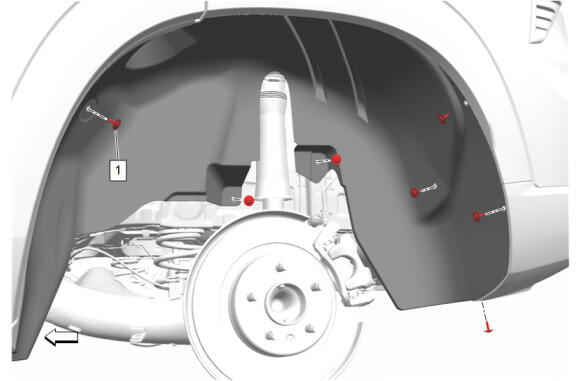

GM5951617Courtesy of GENERAL MOTORS COMPANY
Rear Wheelhouse Liner

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Wheelhouse Liner Bolt [7x] - - 2.5 N.m (22 lb in) Rear Wheelhouse Liner Replacement
