Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Audible Message Center Control | Under dash above glove box. See Figure. |
| Chime Warning Module | Under dash above glove box. |
| EFI Logic Module | At right side cowl. See Figure. |
| EFI Power Module | At left front corner of engine bay. See Figure. |
| Intermittent Wiper Control Unit | On bracket on left lower reinforcement. |

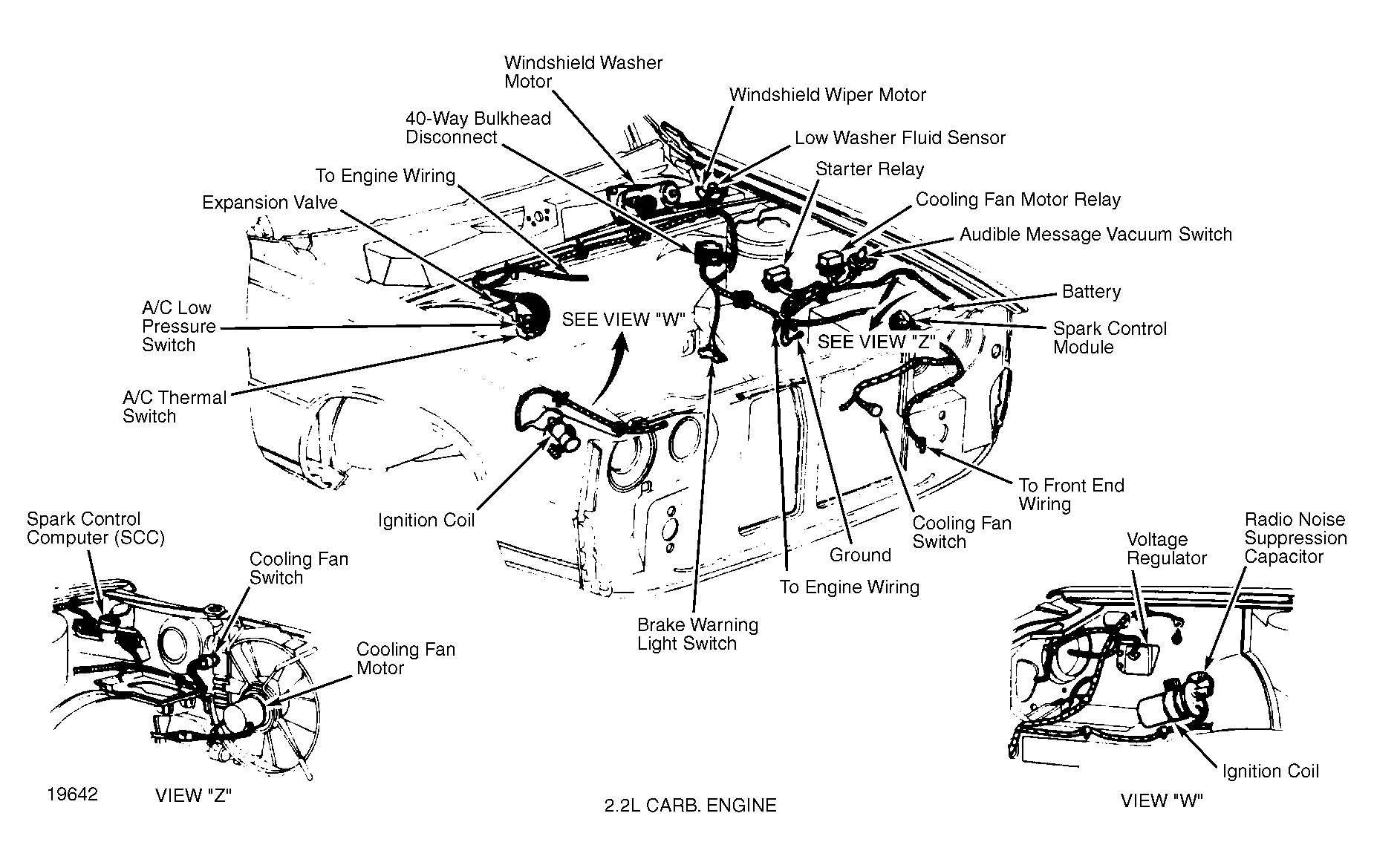

| Spark Control Computer (SCC) | Near ignition coil. See Figure & Figure . |
| Spark Control Module | In front of battery. See Figure. |
| Speed Control Servo | On bottom of battery tray. |
