Front Wheel Drive Models

Lever and cable controls are used to operate heater. One cable operates the heater mode door. The other cable operates the blend air door.

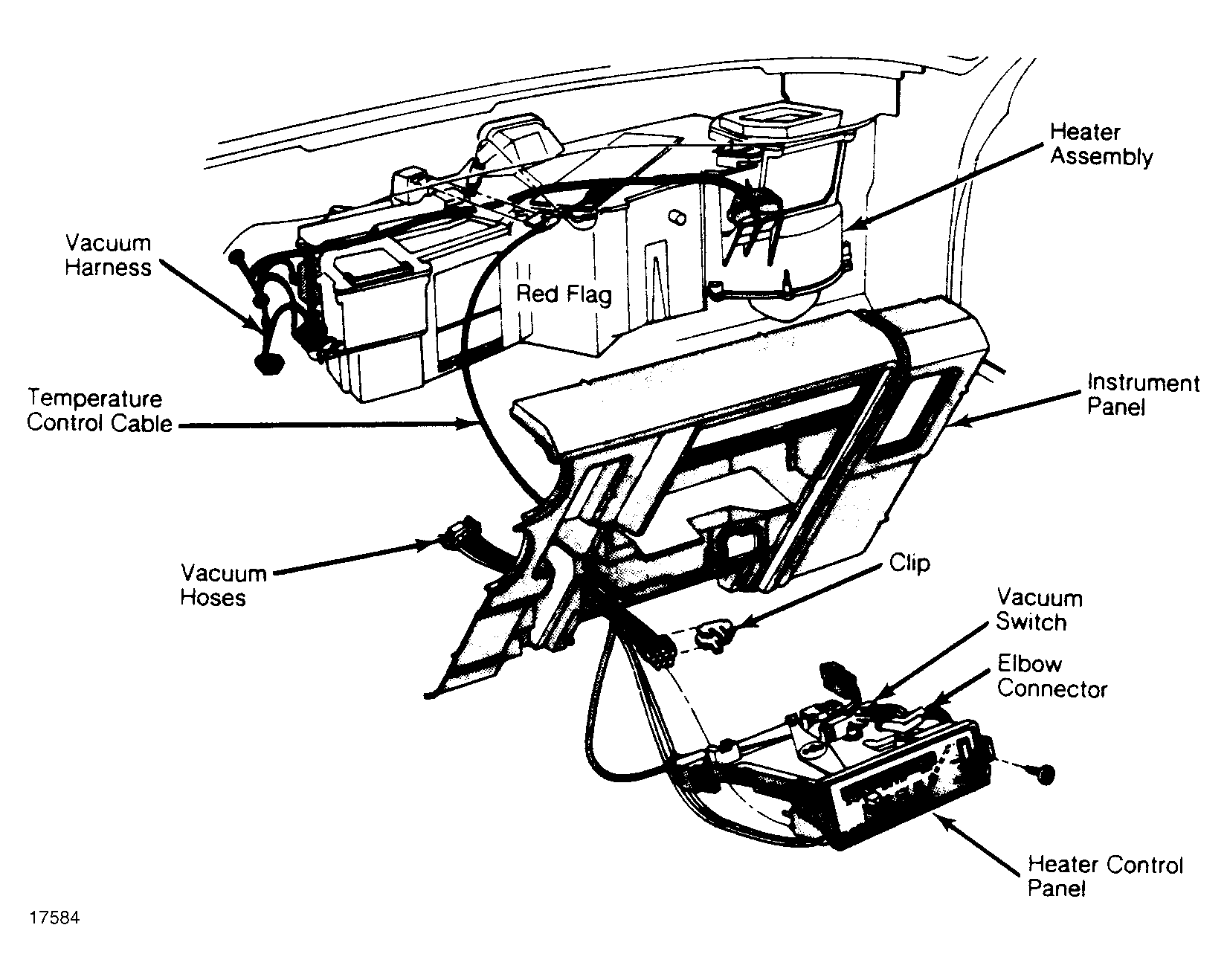

Fig 1: Heater Assembly and Control Cable Routing (Rear Wheel Drive Models)
G17584
VACUUM CONTROL CHART (RWD MODELS)

Mode/Setting Function
Inlet Air Door
Off Inside
Bi-Level Outside
Heat Outside
Defrost Outside
Heat/Hi-Lo Door
Off Bi-Level
Bi-Level Bi-Level
Heat Heat
Defrost Heat
Heat/Def.Door
Off Heat
Bi-Level Heat
Heat Heat
Defrost Defrost
Water Valve
Off (1) *
Bi-Level (1) *
Heat (1) *
Defrost (1) *
Blower
Off Off
Bi-Level (2) On
Heat (2) On
Defrost (2) On
(1) Off with temp. lever in cool position; otherwise on.
(2) 4 Speeds are possible.
