Fuel Injection System - Multi-Point: Description

The Chrysler Multi-Point Electronic Fuel Injection system is an electronically controlled system which combines electronic fuel injection and electronic spark advance. The main sub-systems consist of air induction, fuel delivery, fuel control, emission control, Single Module Engine Controller (SMEC) and data sensors. The SMEC is utilized in place of the former logic and power modules.

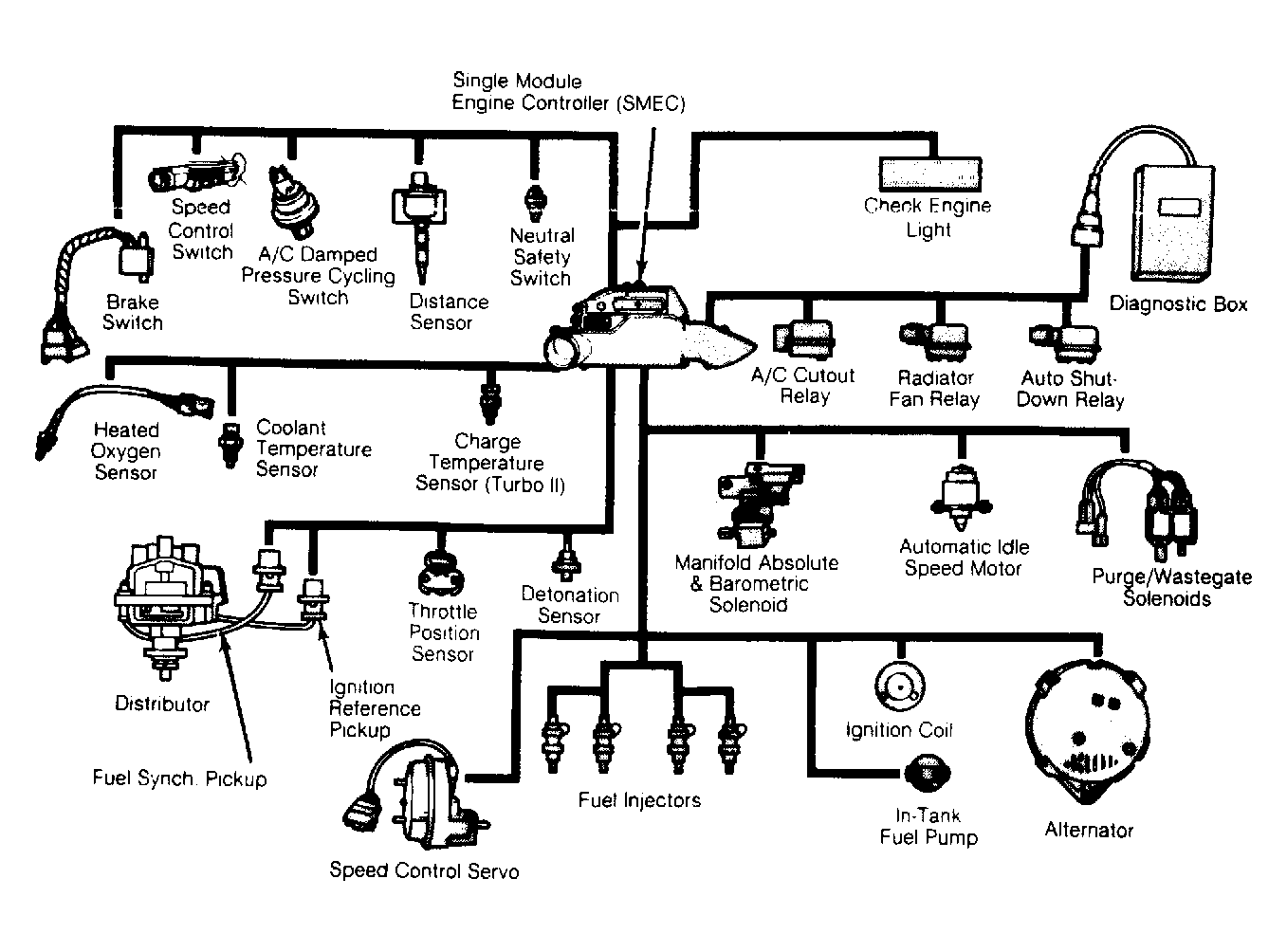

Fig 1: Multi-Point Fuel Injection Components (2.2L Turbo)
G54300

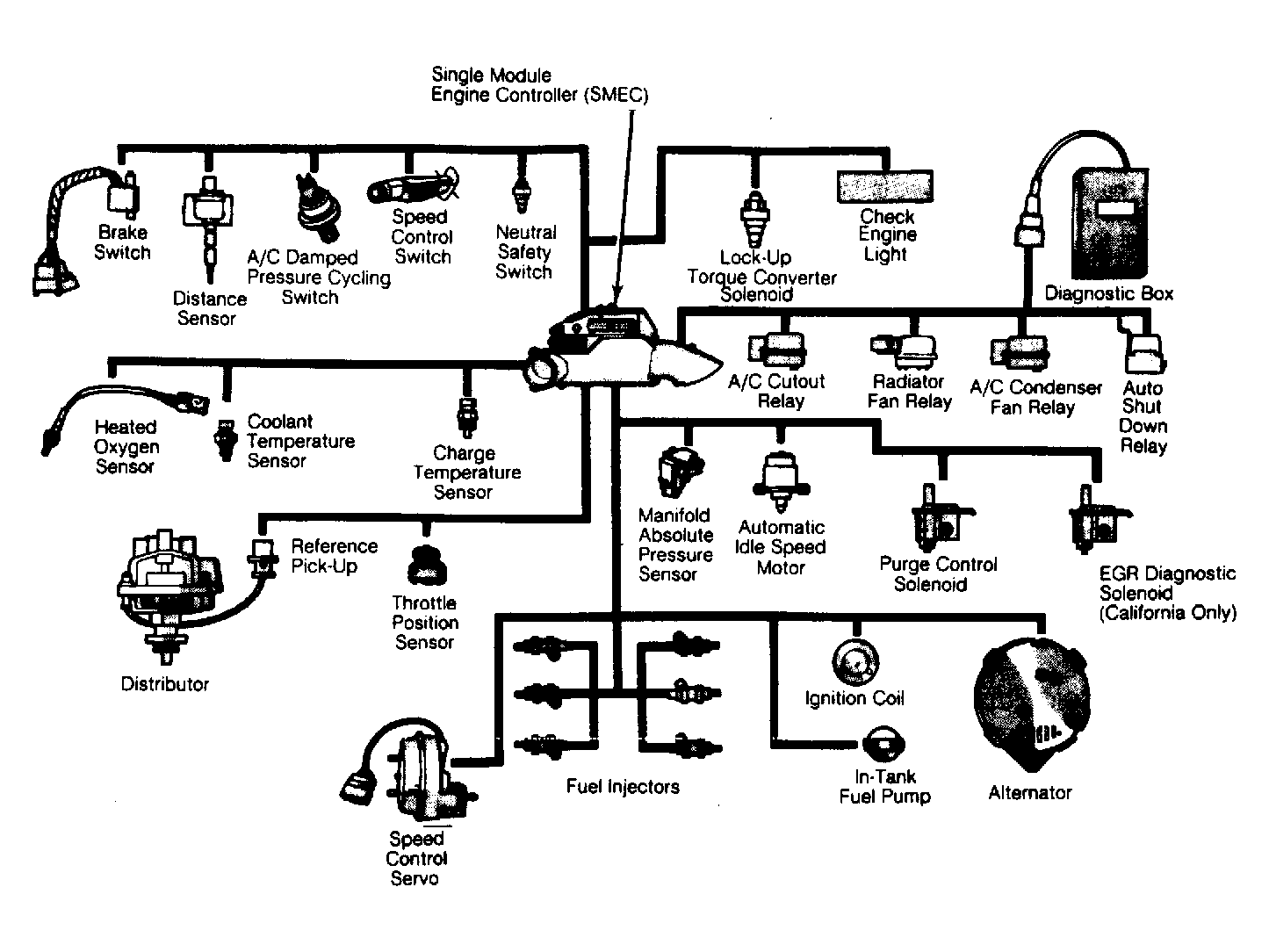

Fig 2: Multi-Point Fuel Injection Components (3.0L)
G54301
