Test 36A: Repairing Temperature Gauge Problems

Fig 1: Test 36A: Circuit Diagram
G91C11439

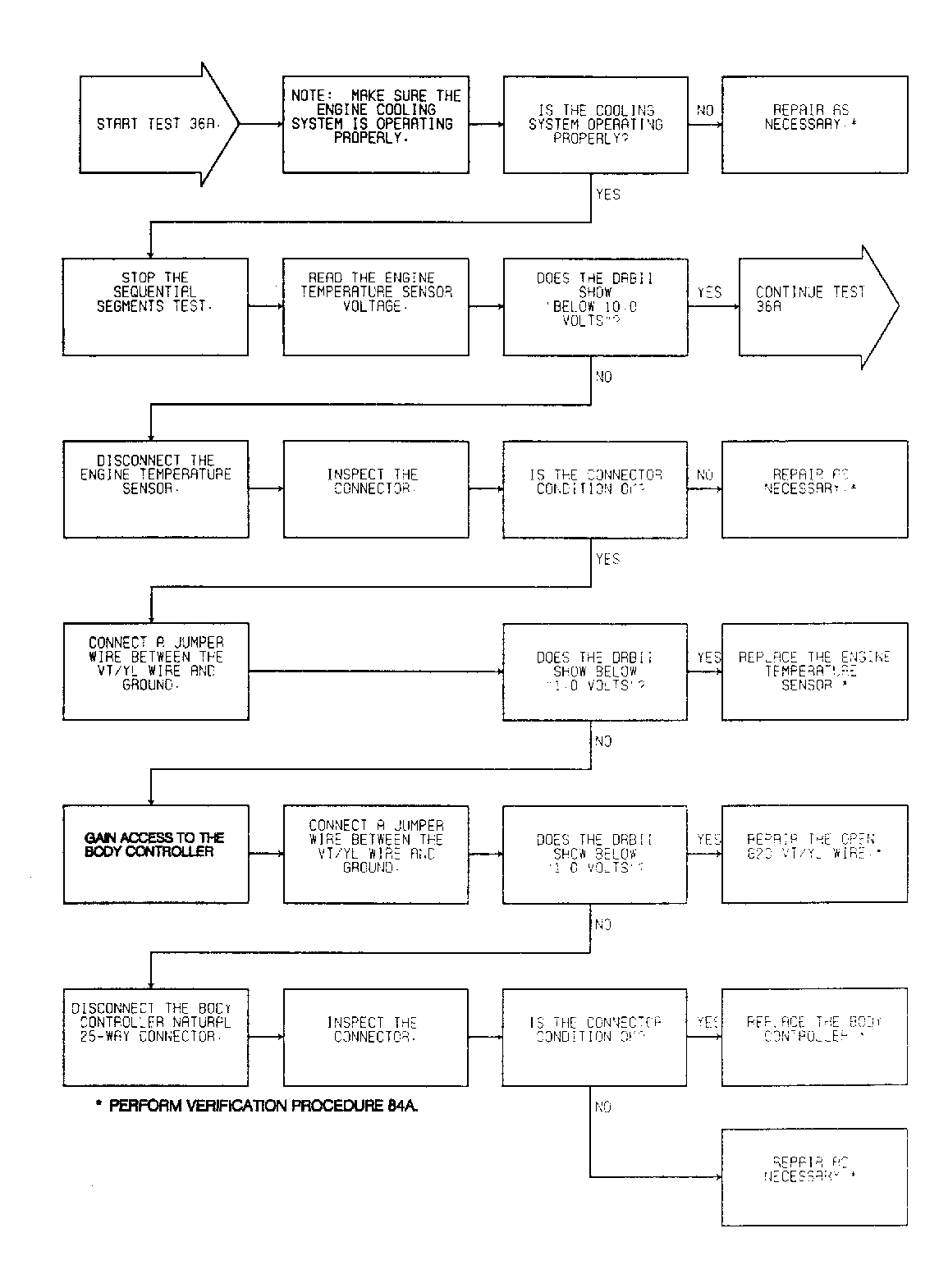

Fig 2: Test 36A: Repairing Temperature Gauge Problems (1 of 2)
G91B11487

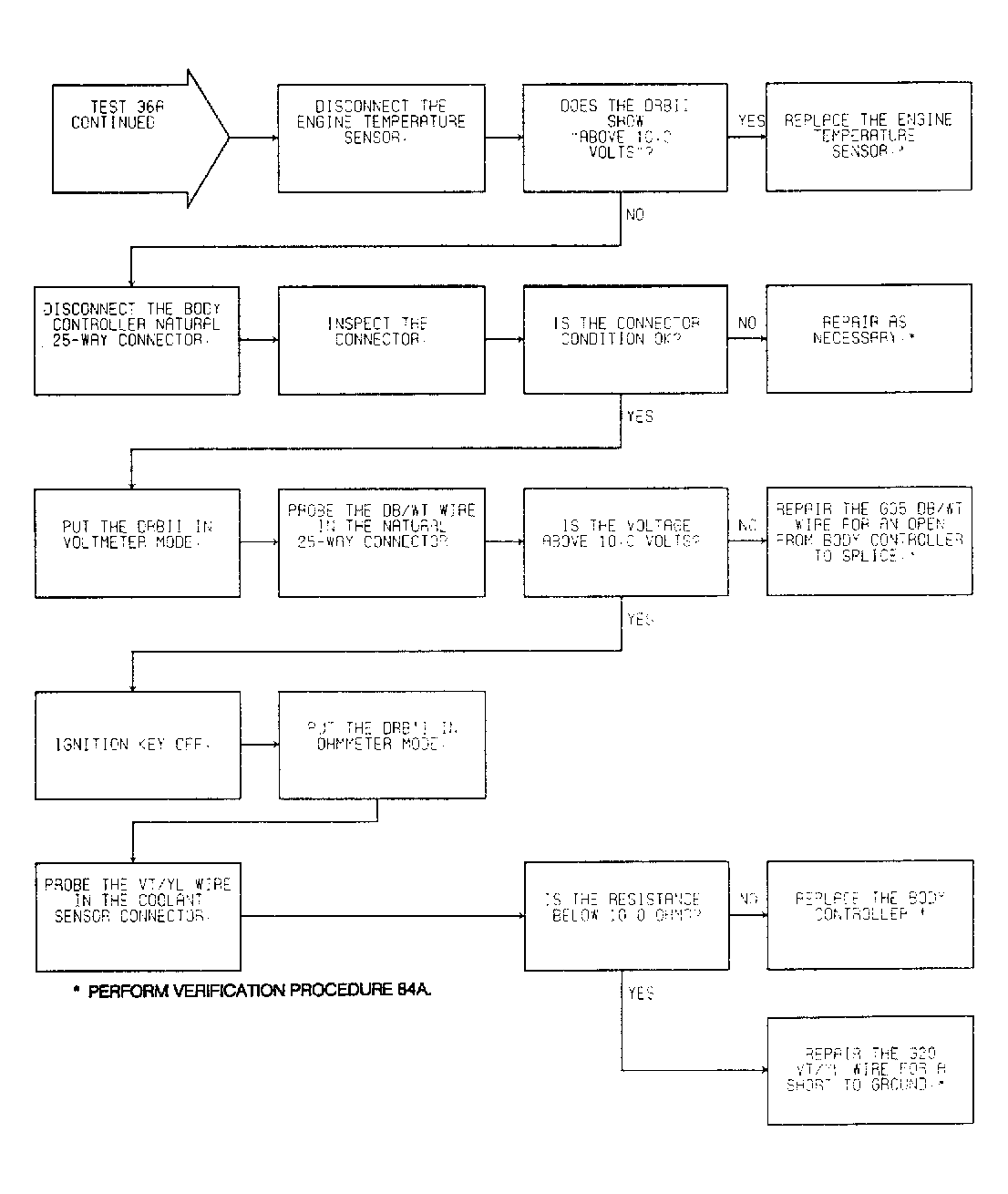

Fig 3: Test 36A: Repairing Temperature Gauge Problems (2 of 2)
G91C11488
