Test 39A: Repairing Brake Warning Light Problem

Fig 1: Test 39A: Circuit Diagram
G91G11441

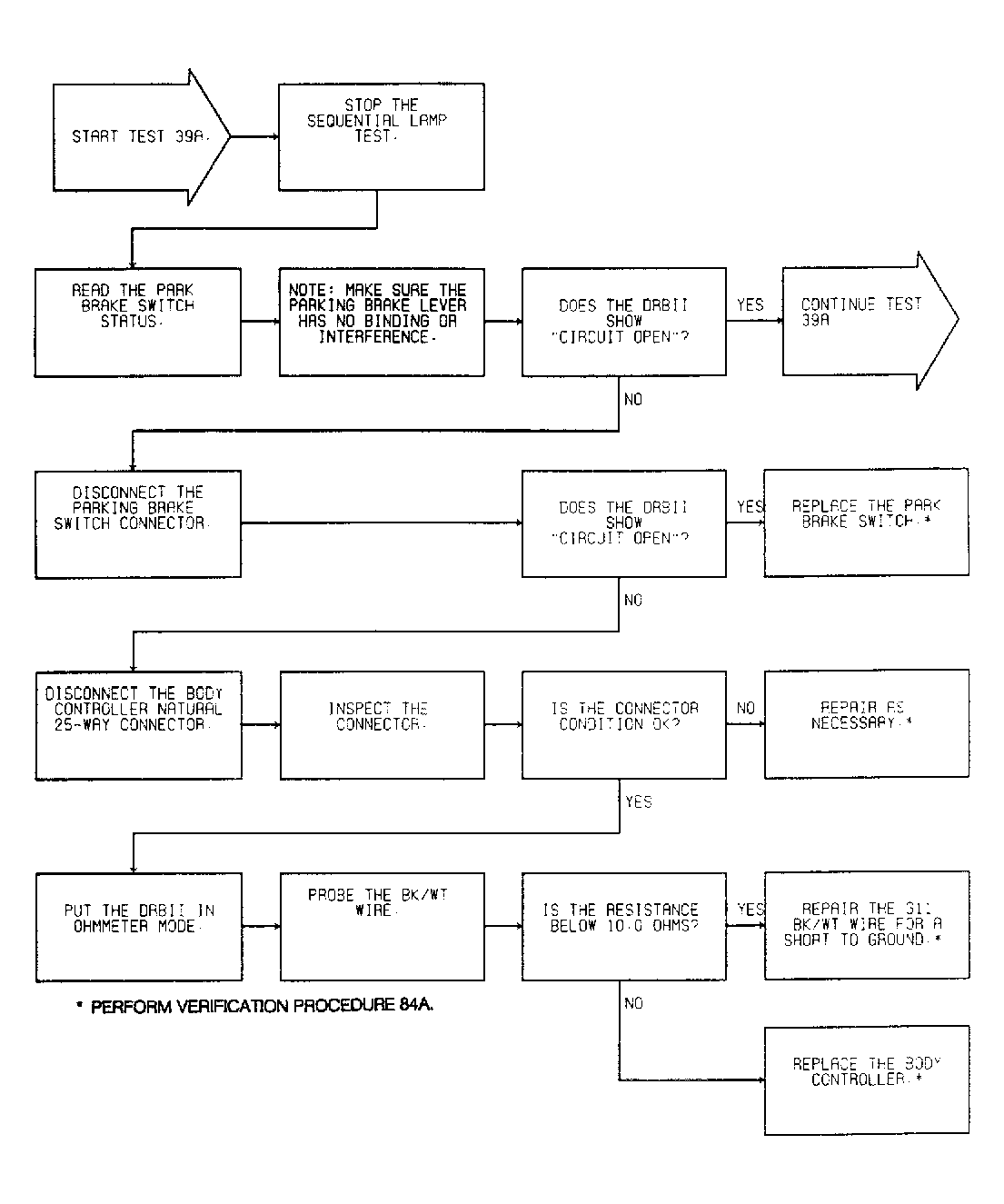

Fig 2: Test 39A: Repairing Brake Warning Light Problem (1 of 2)
G91C11520

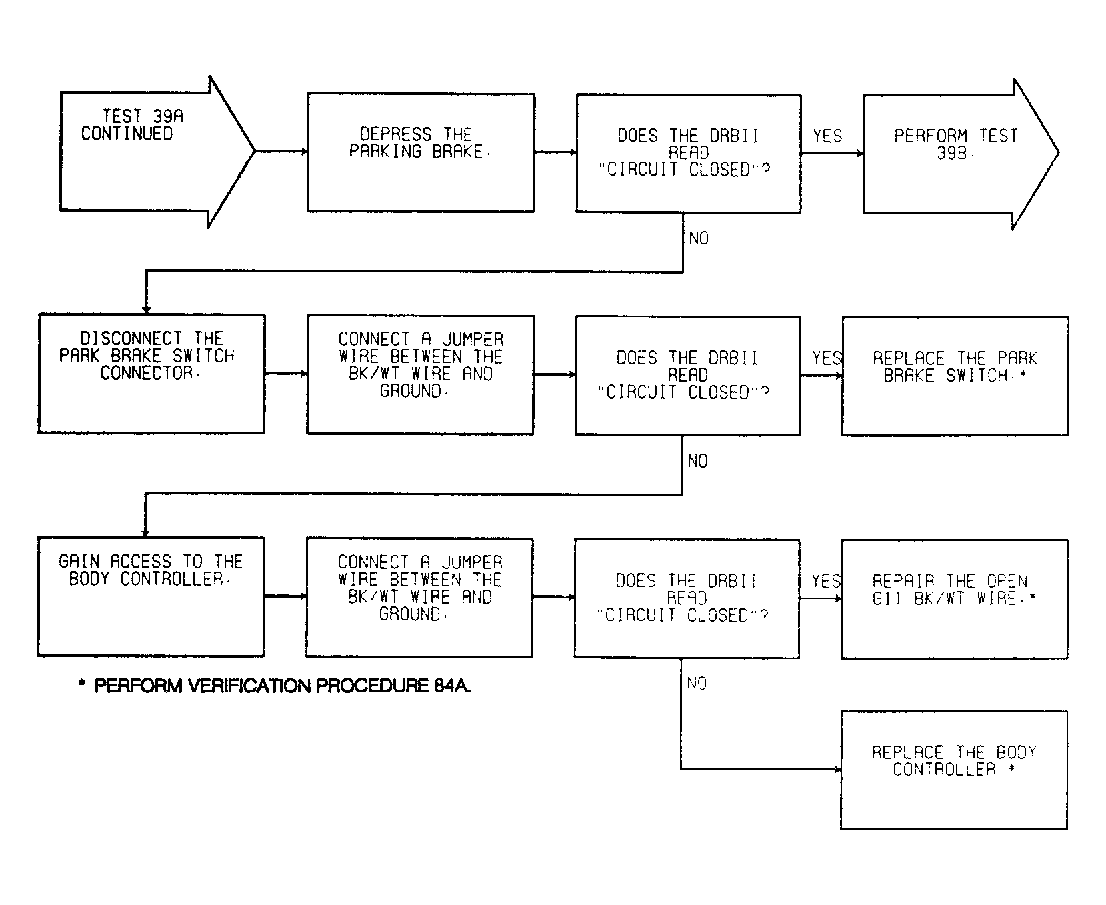

Fig 3: Test 39A: Repairing Brake Warning Light Problem (2 of 2)
G91D11521
