Test 39C: Repairing Brake Warning Light Problem

Fig 1: Test 39C: Circuit Diagram
G91I11443

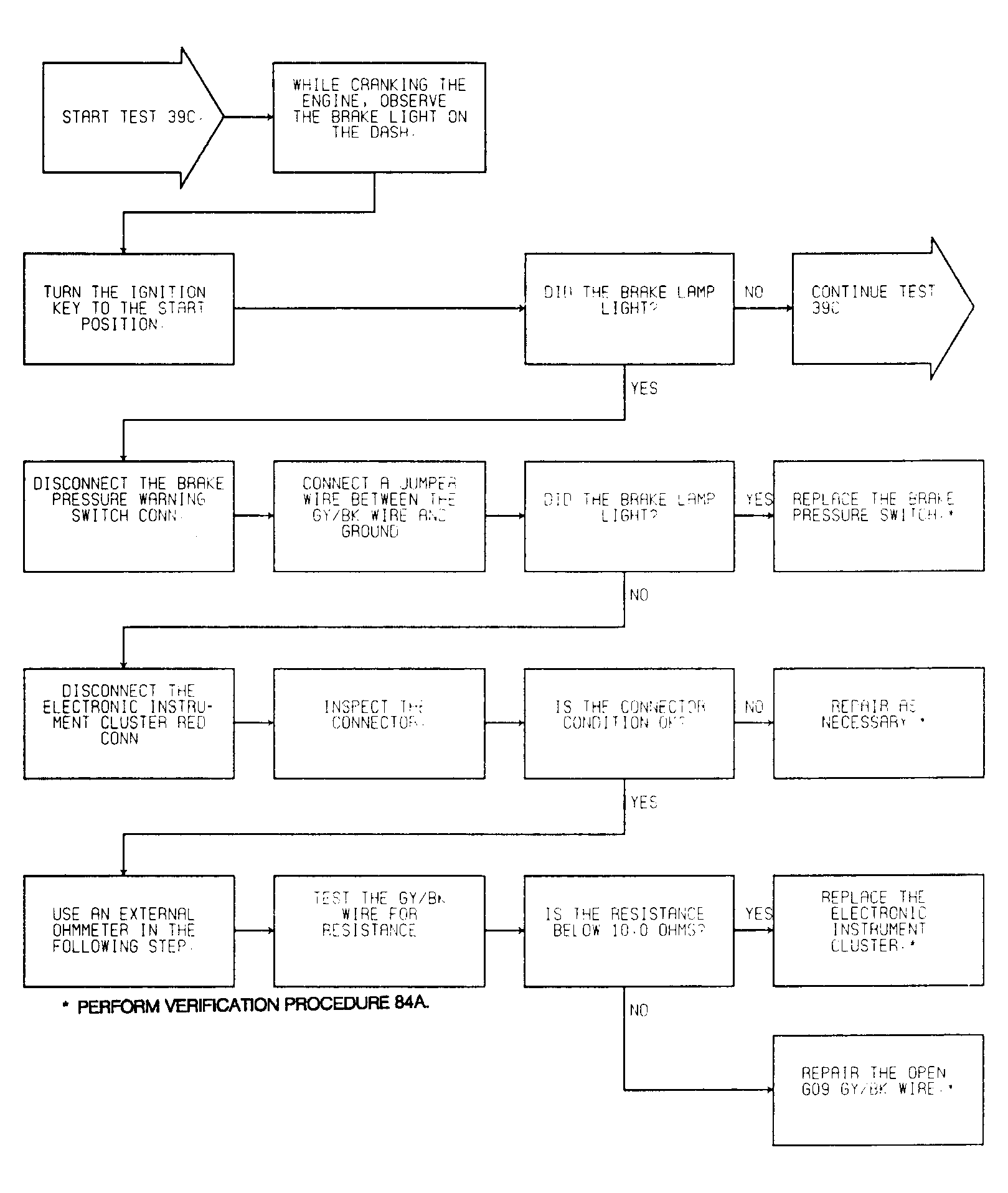

Fig 2: Test 39C: Repairing Brake Warning Light Problem (1 of 2)
G91G11524

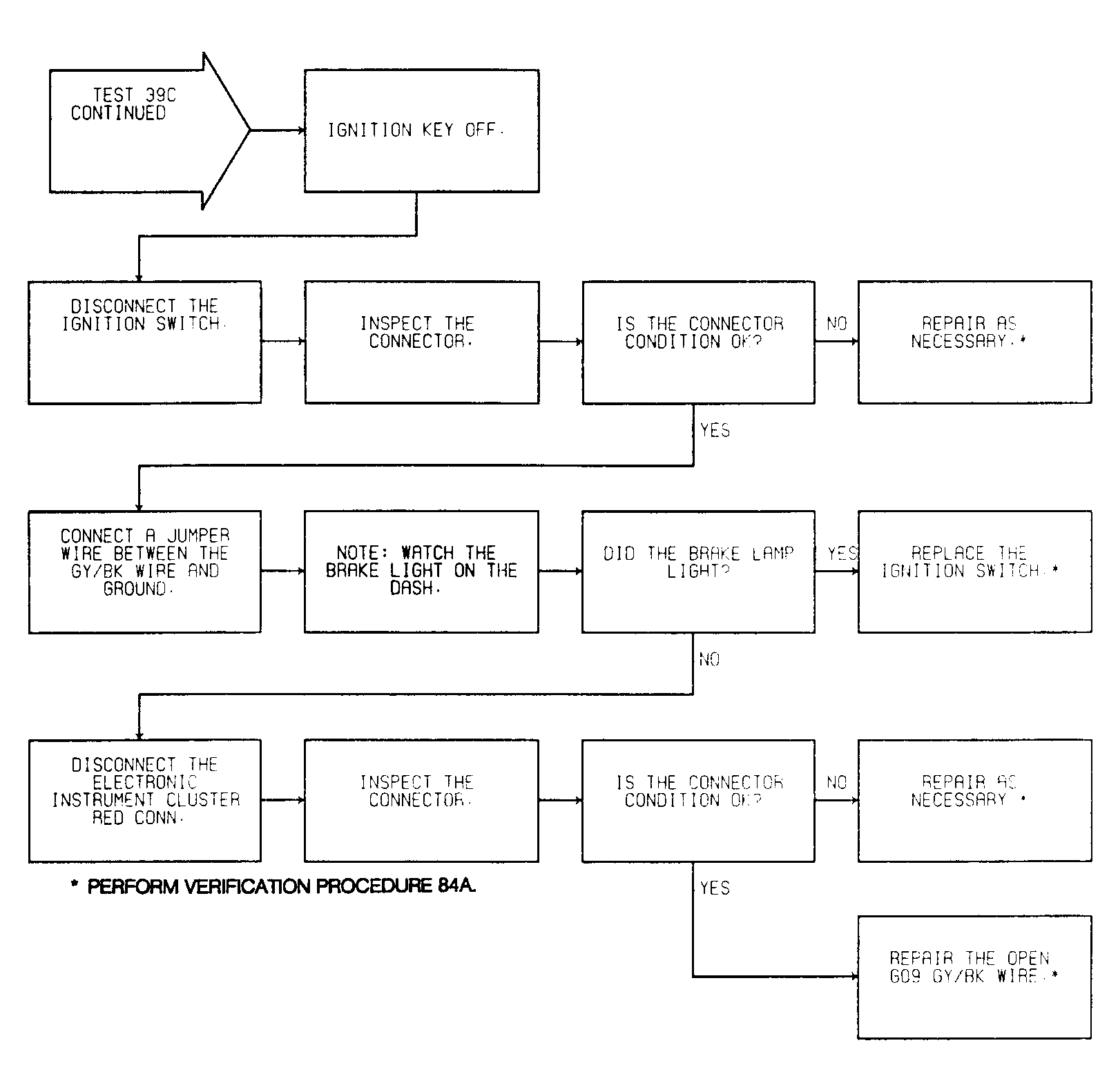

Fig 3: Test 39C: Repairing Brake Warning Light Problem (2 of 2)
G91H11525
