Test 53D: Repairing Motor Wiring For Open

Fig 1: Test 53D: Circuit Diagram
G91B11461

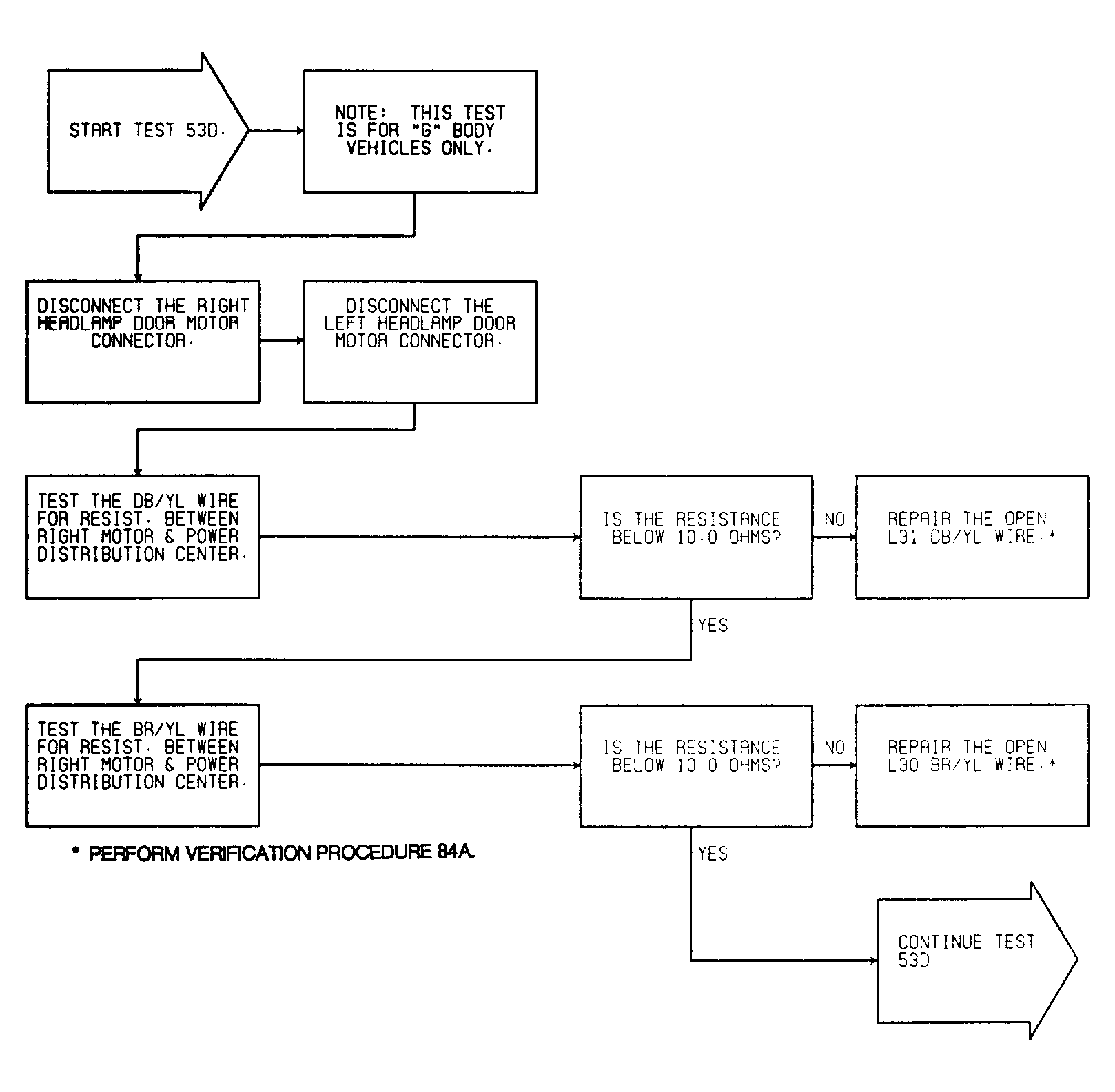

Fig 2: Test 53D: Repairing Motor Wiring for Open (1 of 2)
G91B11578

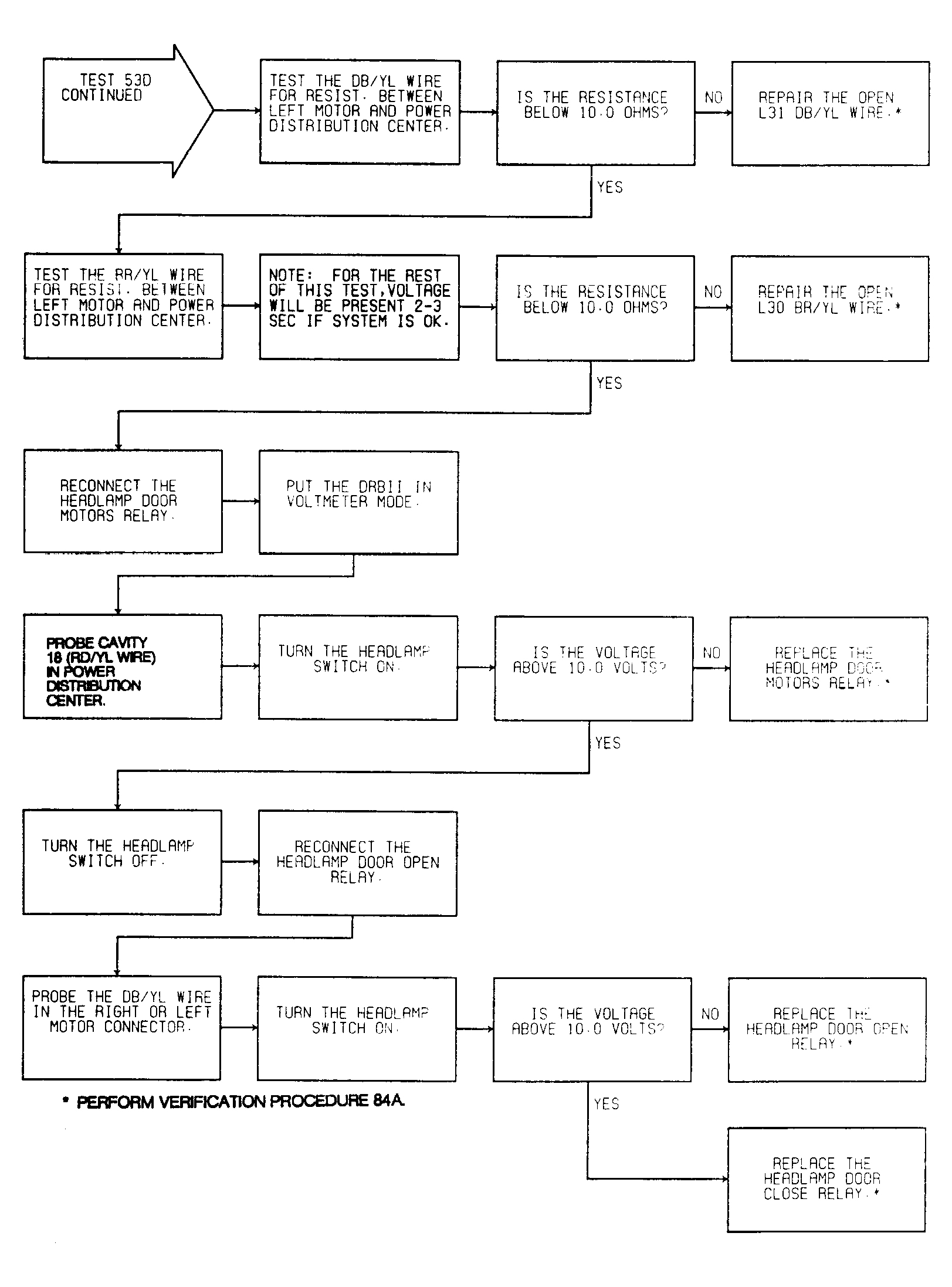

Fig 3: Test 53D: Repairing Motor Wiring for Open (2 of 2)
G91C11579
