Test 59C: Checking Body Controller Input

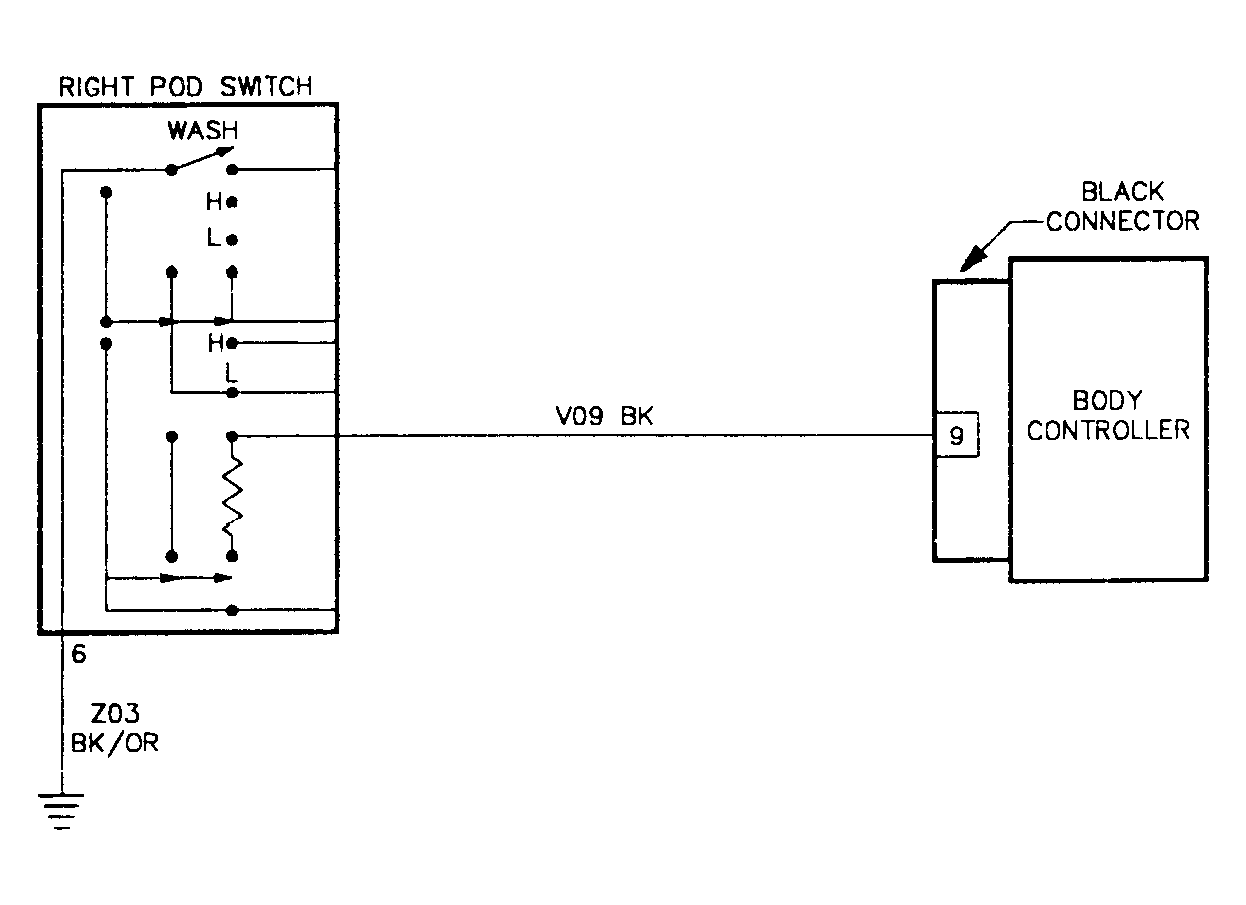

Fig 1: Test 59C: Circuit Diagram
G91F11465

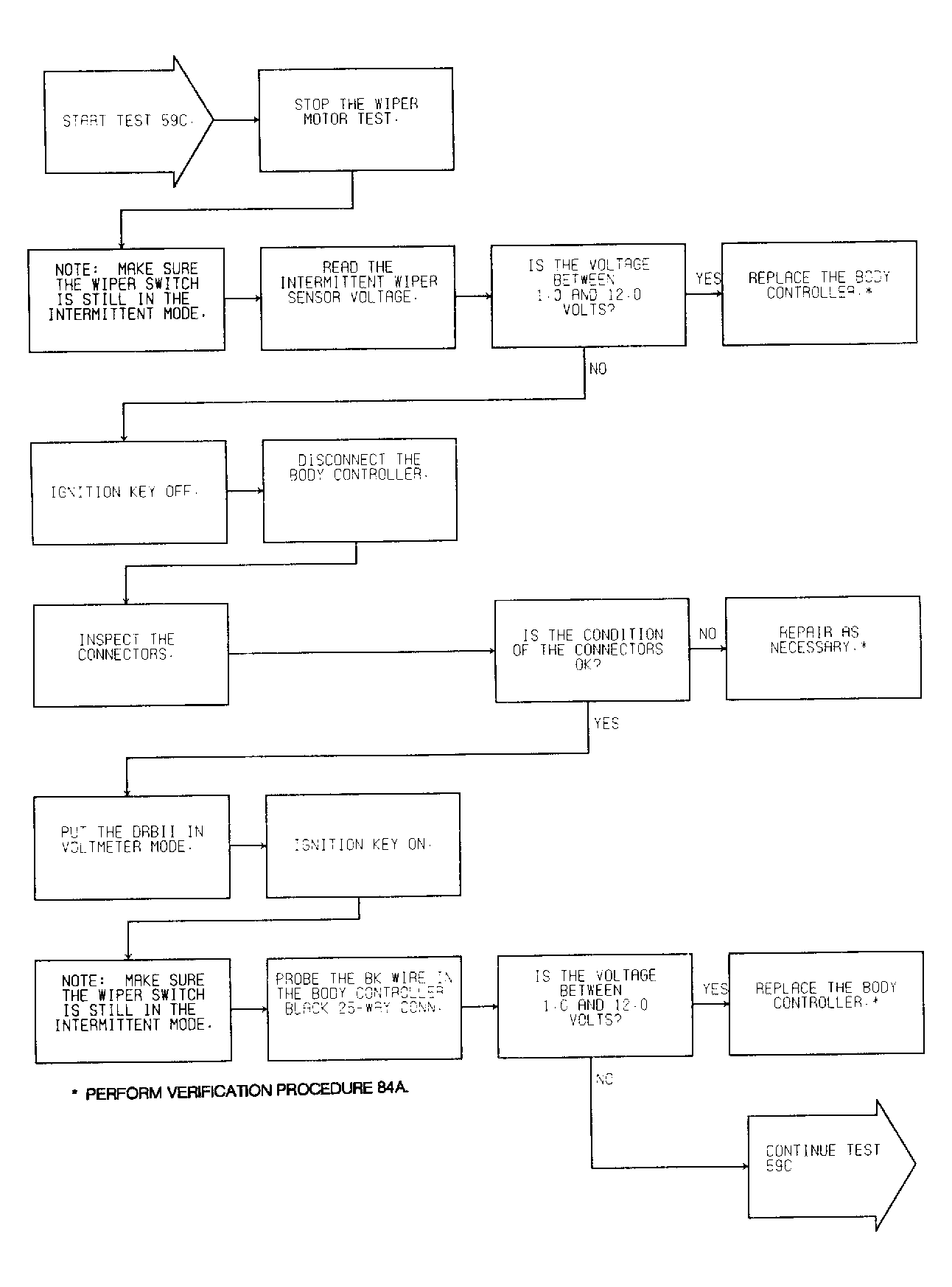

Fig 2: Test 59C: Checking Body Controller Input (1 of 2)
G91E11589

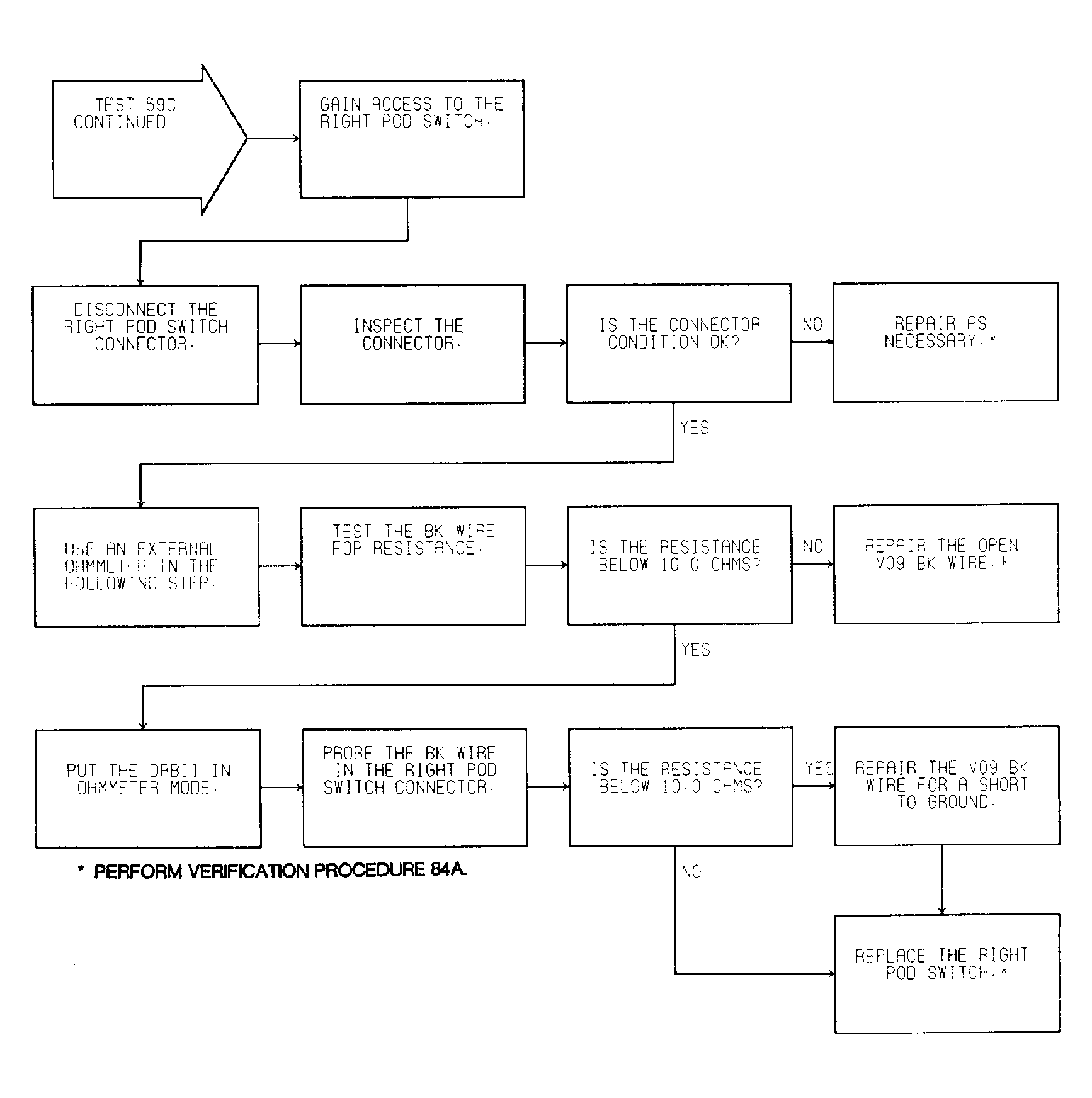

Fig 3: Test 59C: Checking Body Controller Input (2 of 2)
G91H11590
