Test 44A: Theft Alarm Module Indicator Light Circuit

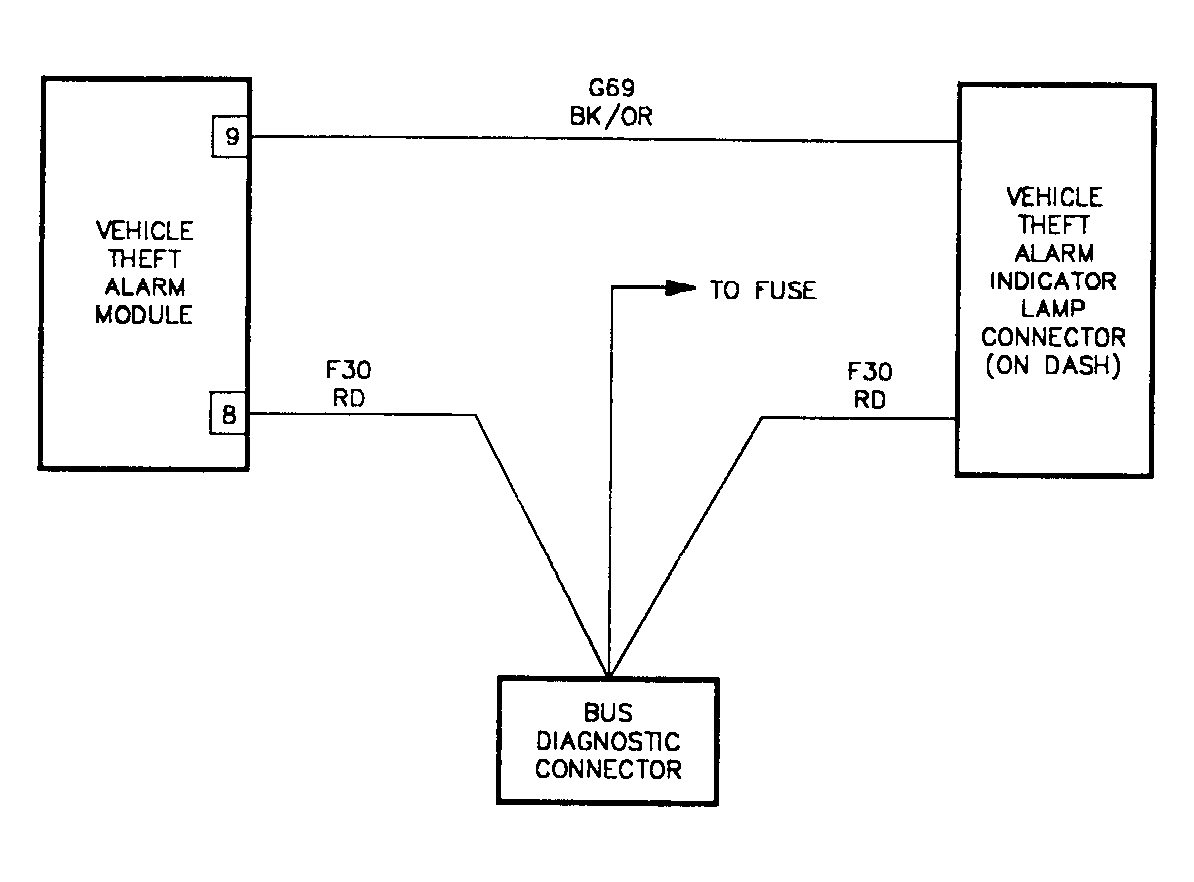

Fig 1: Test 44A: Circuit Diagram.
G91G11169

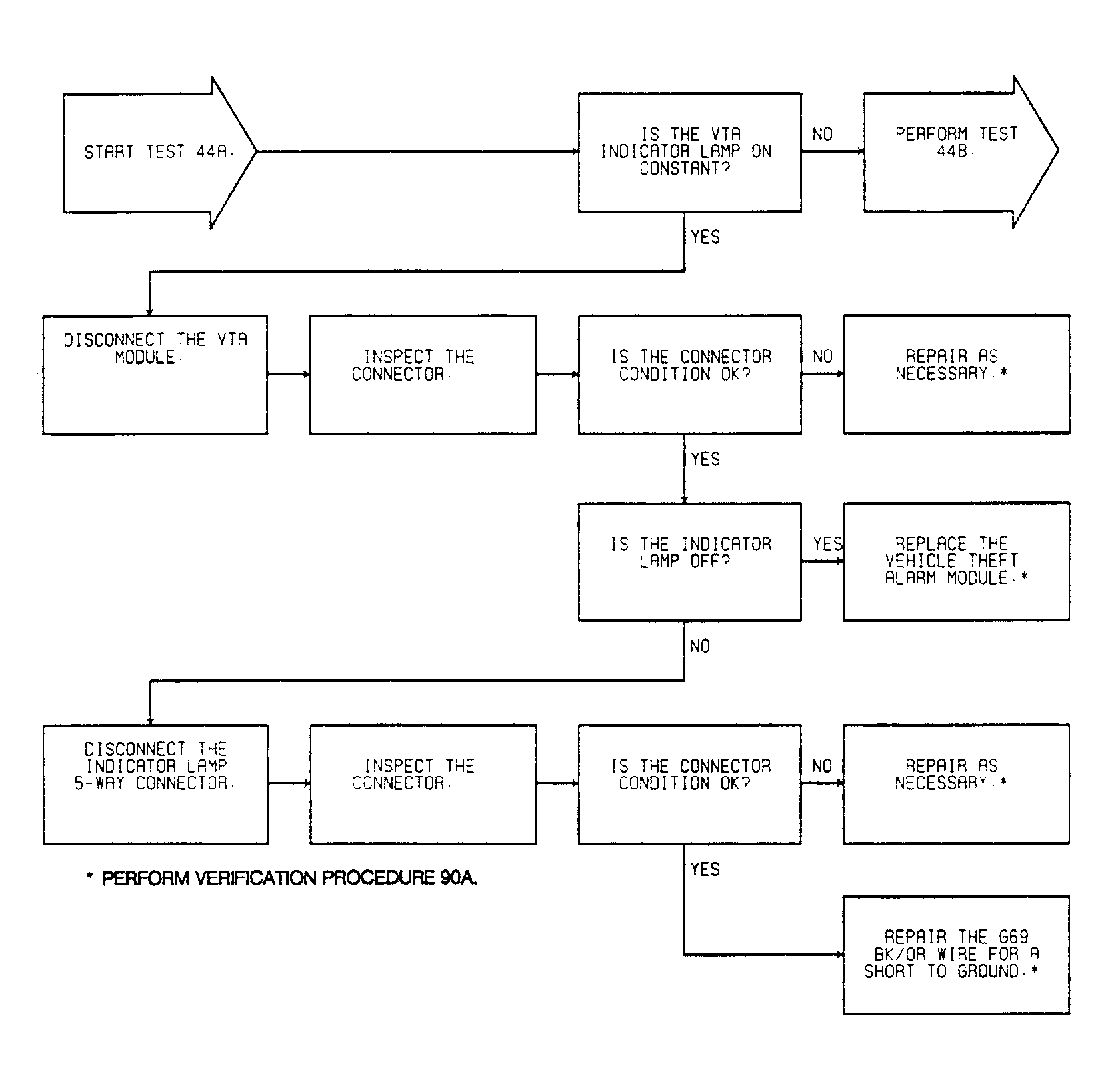

Fig 2: Test 44A: Theft Alarm Indicator Light Circuit
G91F11374
