Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector	See
Automatic Idle Speed (AIS) Motor	Fig 1
Camshaft Sensor	Fig 2
Coolant Temperature Sensor	Fig 3
Crankshaft Sensor	Fig 4
Distance Sensor	Fig 5
Engine Diagnostic	Fig 6
EGR Solenoid	Fig 7
Fuel Injector	Fig 8
Fuel Pump	Fig 9
Ignition Coil	Fig 10
Manifold Absolute Pressure (MAP) Sensor	Fig 11
Oil Pressure Switch	Fig 12
Oxygen (O2) Sensor	Fig 13
Purge Solenoid	Fig 14
Relays: A/C Clutch, Auto Shutdown, Fuel Pump & Radiator Fan Relays	Fig 15
Single Board Engine Controller (SBEC)	Fig 16
Throttle Body Charge Temperature Sensor	Fig 17
Throttle Position Sensor (TPS)	Fig 18
6-Pin Fuel Injector Wiring Harness	Fig 19
10-Pin Fuel Injector Wiring Harness	Fig 20

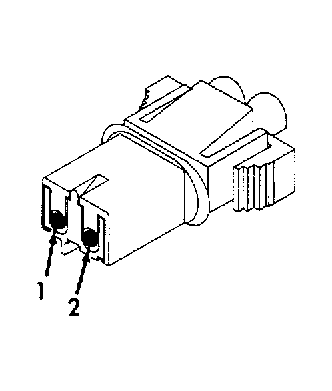

Fig 1: Automatic Idle Speed (AIS) Motor Connector Terminal ID

G92A04767

Courtesy of CHRYSLER MOTORS.

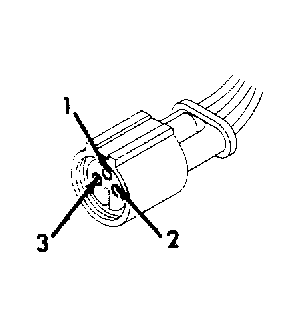

Fig 2: Camshaft Sensor Connector Terminal ID

G92C04768

Courtesy of CHRYSLER MOTORS.

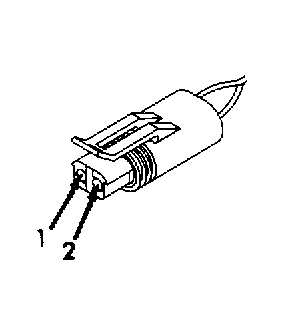

Fig 3: Coolant Temperature Sensor Connector Terminal ID

G92E04769

Courtesy of CHRYSLER MOTORS.

Fig 4: Crankshaft Sensor Connector Terminal ID

G92G04770

Courtesy of CHRYSLER MOTORS.

Fig 5: Distance Sensor Connector Terminal ID

G92I04771

Courtesy of CHRYSLER MOTORS.

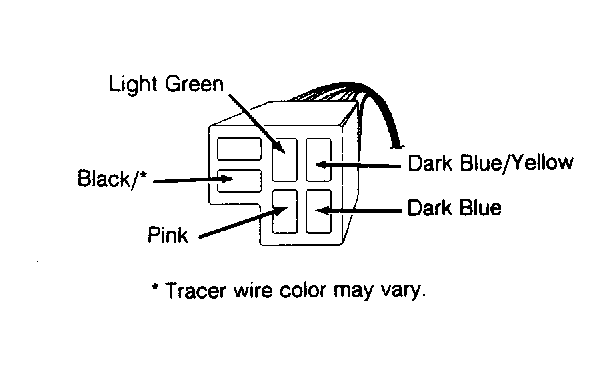

Fig 6: Engine Diagnostic Connector Terminal ID

G92C04773

Courtesy of CHRYSLER MOTORS.

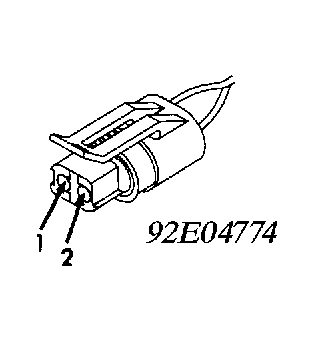

Fig 7: EGR Solenoid Connector Terminal ID

G92E04774

Courtesy of CHRYSLER MOTORS.

Fig 8: Fuel Injector Connector Terminal ID

G92H04775

Courtesy of CHRYSLER MOTORS.

Fig 9: Fuel Pump Connector Terminal ID

G92J04776

Courtesy of CHRYSLER MOTORS.

Fig 10: Ignition Coil Connector Terminal ID

G92D04778

Courtesy of CHRYSLER MOTORS.

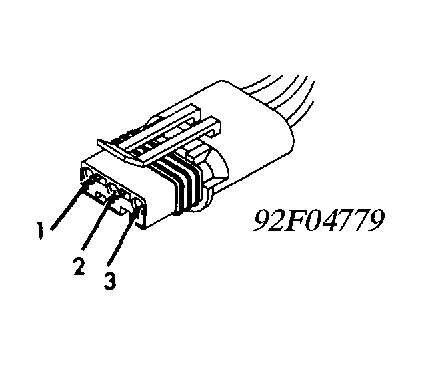

Fig 11: Manifold Absolute Pressure (MAP) Sensor Connector Term. ID

G92F04779

Courtesy of CHRYSLER MOTORS.

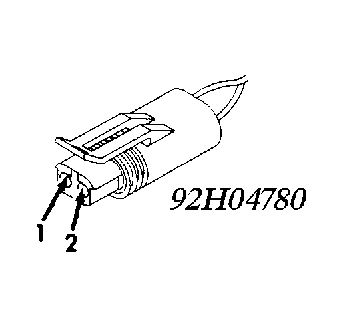

Fig 12: Oil Pressure Switch Connector Terminal ID

G92H04780

Courtesy of CHRYSLER MOTORS.

Fig 13: Oxygen (O2) Sensor Connector Terminal ID

G92J04781

Courtesy of CHRYSLER MOTORS.

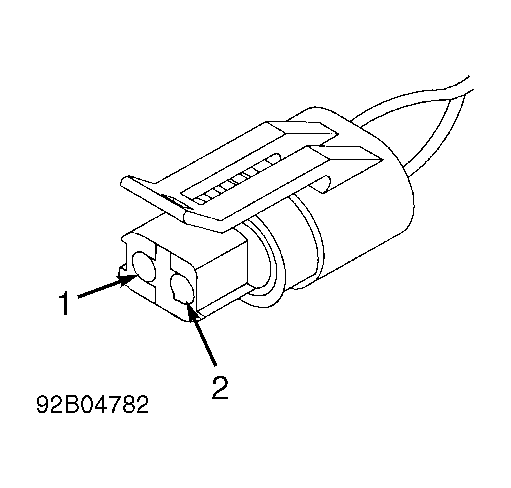

Fig 14: Purge Solenoid Connector Terminal ID

G92B04782

Courtesy of CHRYSLER MOTORS.

Fig 15: Relay Connector Terminal ID (A/C Clutch, ASD, Fuel Pump & Radiator Fan Relay)

G92D04783

Courtesy of CHRYSLER MOTORS.

Fig 16: Single Board Engine Controller (SBEC) Connector Term. ID

G92I04785

Courtesy of CHRYSLER MOTORS.

Fig 17: Throttle Body Charge Temp. Sensor Connector Terminal ID

G92A04786

Courtesy of CHRYSLER MOTORS.

Fig 18: Throttle Position Sensor Connector Terminal ID

G92C04787

Courtesy of CHRYSLER MOTORS.

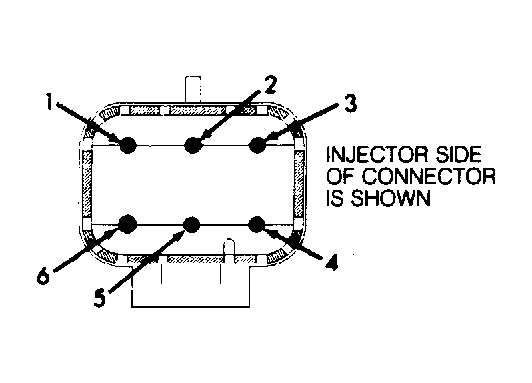

Fig 19: 6-Pin Injector Wiring Harness Connector Terminal ID

G92E04788

Courtesy of CHRYSLER MOTORS.

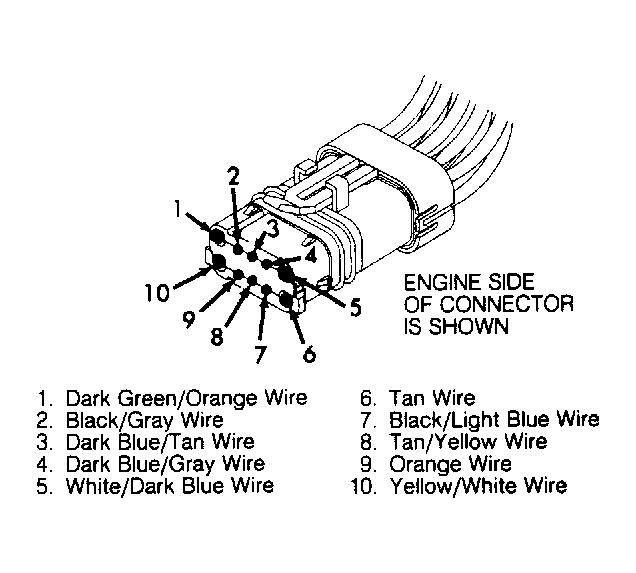

Fig 20: 10-Pin Injector Wiring Harness Connector Terminal ID

G92G04789

Courtesy of CHRYSLER MOTORS.
