Motor Runs With Switch In Off Position

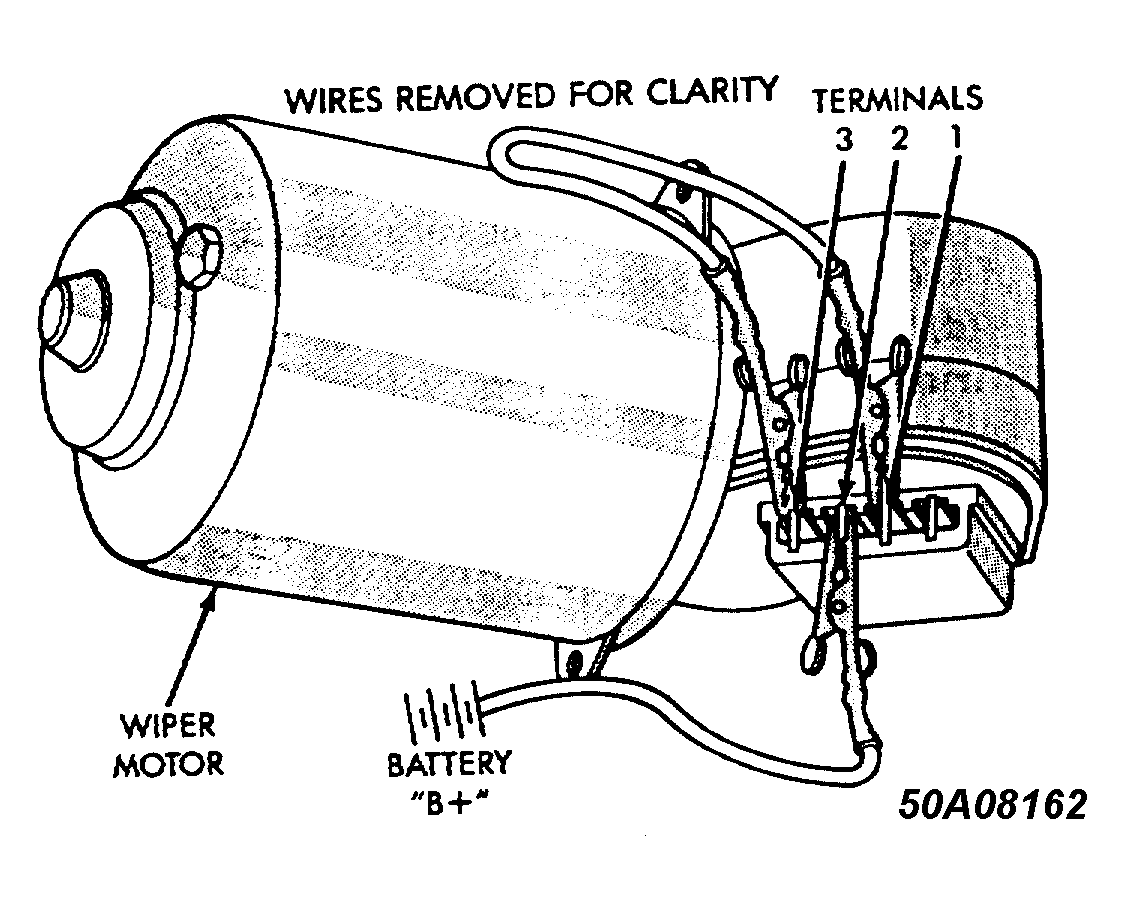

Disconnect motor wiring harness. Connect jumper wire from motor terminal No. 1 to terminal No. 3. Connect battery voltage to motor terminal No. 2. See Figure . If motor runs to park position and stops, replace wiper switch. If motor continues to run, replace motor.
