Starter Relay Test
NOTE:
Perform solenoid test before testing starter relay.

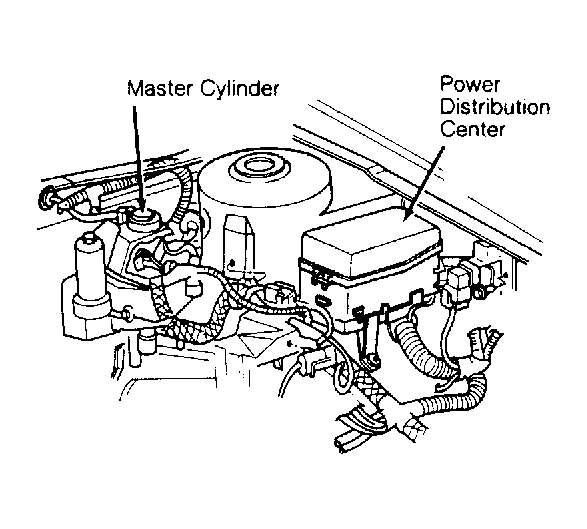

Locate and remove starter relay. Starter relay is located within Power Distribution Center (PDC). See Figure . Connect 12-volt power source to starter relay terminal No. 86 and ground terminal No. 85. See Fig 1 . Using ohmmeter, check continuity across starter relay terminals No. 30 and 87. If continuity is not present, replace starter relay.
