Wipers Run At High Speed With Switch In Low Speed Position. Wipers Operate In Intermittent Mode, But Each Wipe Is At High Speed.

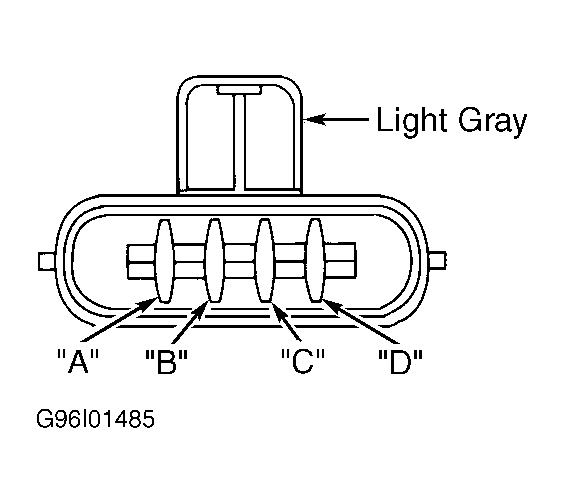

  1. Disconnect wiper motor connector. If motor will not run on low speed, connect jumper wire between positive battery terminal and wiper motor terminal "B". Connect another jumper wire between ground and wiper motor terminal "C". See Figure . If motor runs in low speed, go to next step. If motor runs in high speed, replace wiper motor.

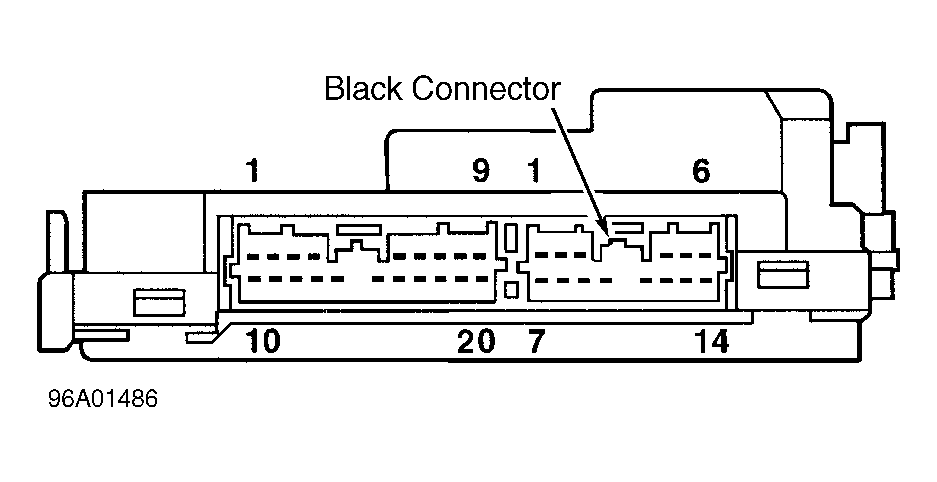

  2. Check for faulty HI/LO wiper relay. Check for crossed wires in harness from HI/LO wiper relay and wiper motor. Disconnect BCM Black 14-pin connector. Remove intermittent wiper relay from PDC. Using ohmmeter, check for continuity at BCM Black 14-pin connector terminal No. 8. See Figure . If continuity exists, repair as necessary. If continuity does not exist, replace BCM.
