Connector Identification

WARNING: This page is about a different car, the 1995 Dodge Stratus and 1995 Chrysler Cirrus. However, it is still accessible from the selected car via links, so may be relevant.

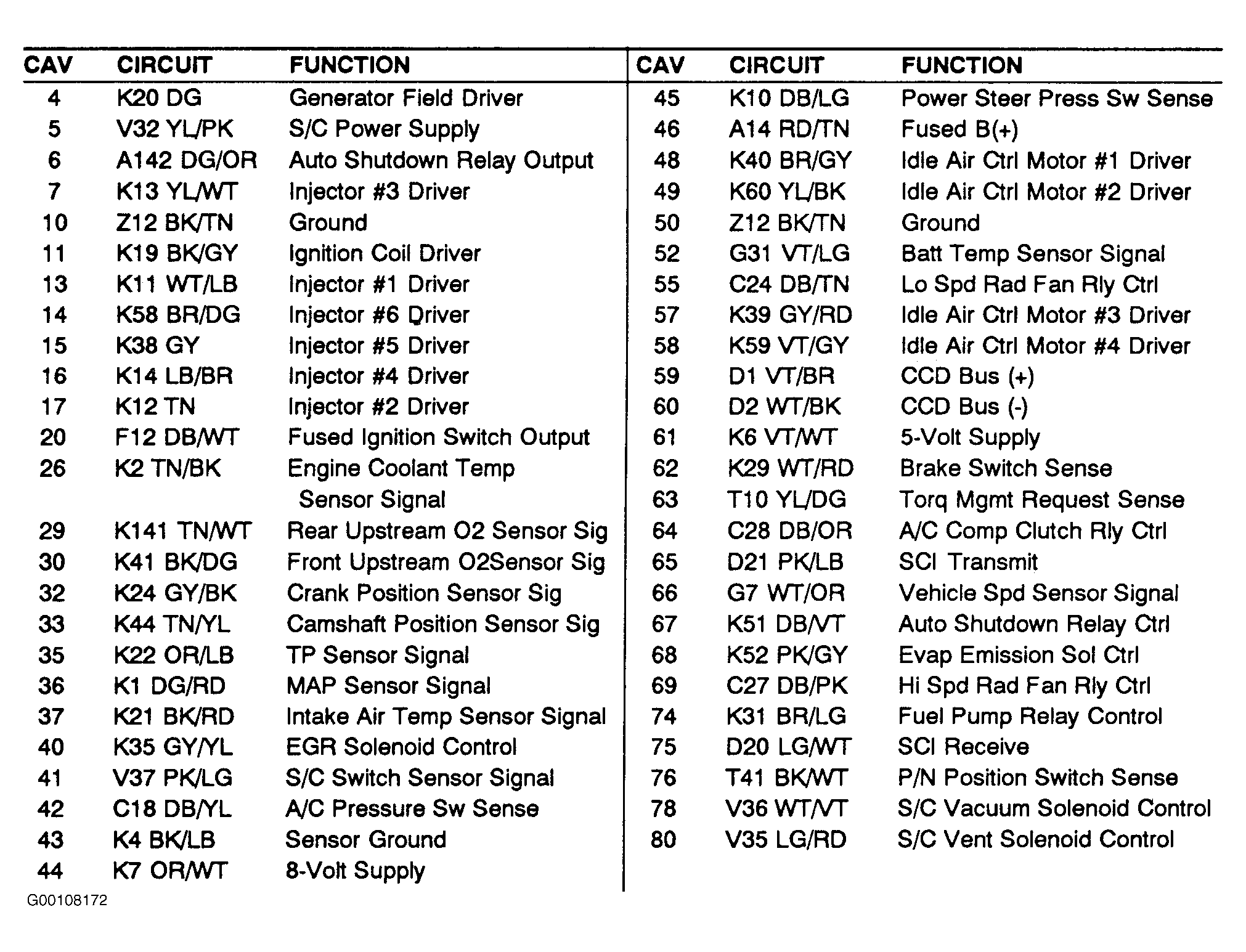

Fig 1: Identifying Powertrain Control Module (PCM) Connector Terminals (1 Of 2)

Courtesy of CHRYSLER CORP.

Fig 2: Identifying Powertrain Control Module (PCM) Terminals (2 Of 2)

Courtesy of CHRYSLER CORP.

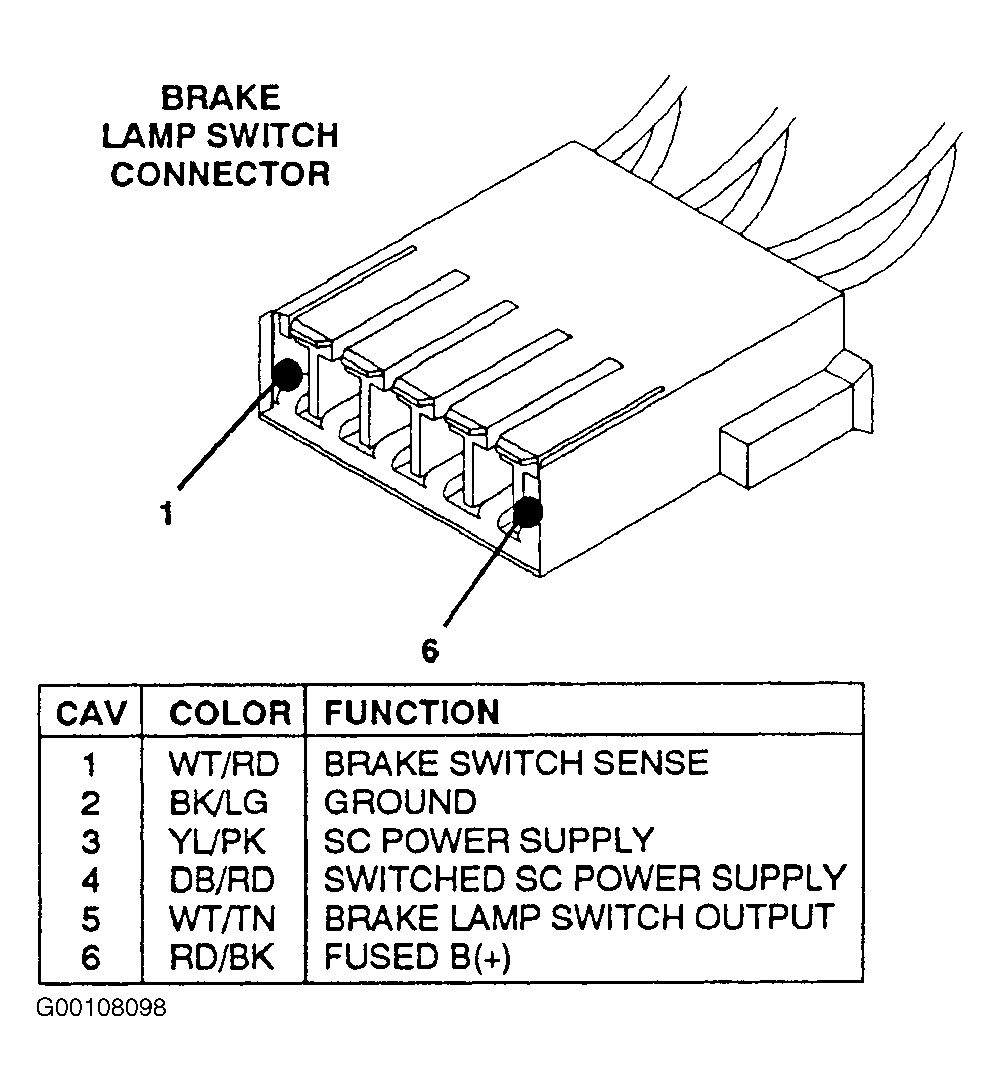

Fig 3: Identifying Brake Lamp Switch Connector Terminals

Courtesy of CHRYSLER CORP.

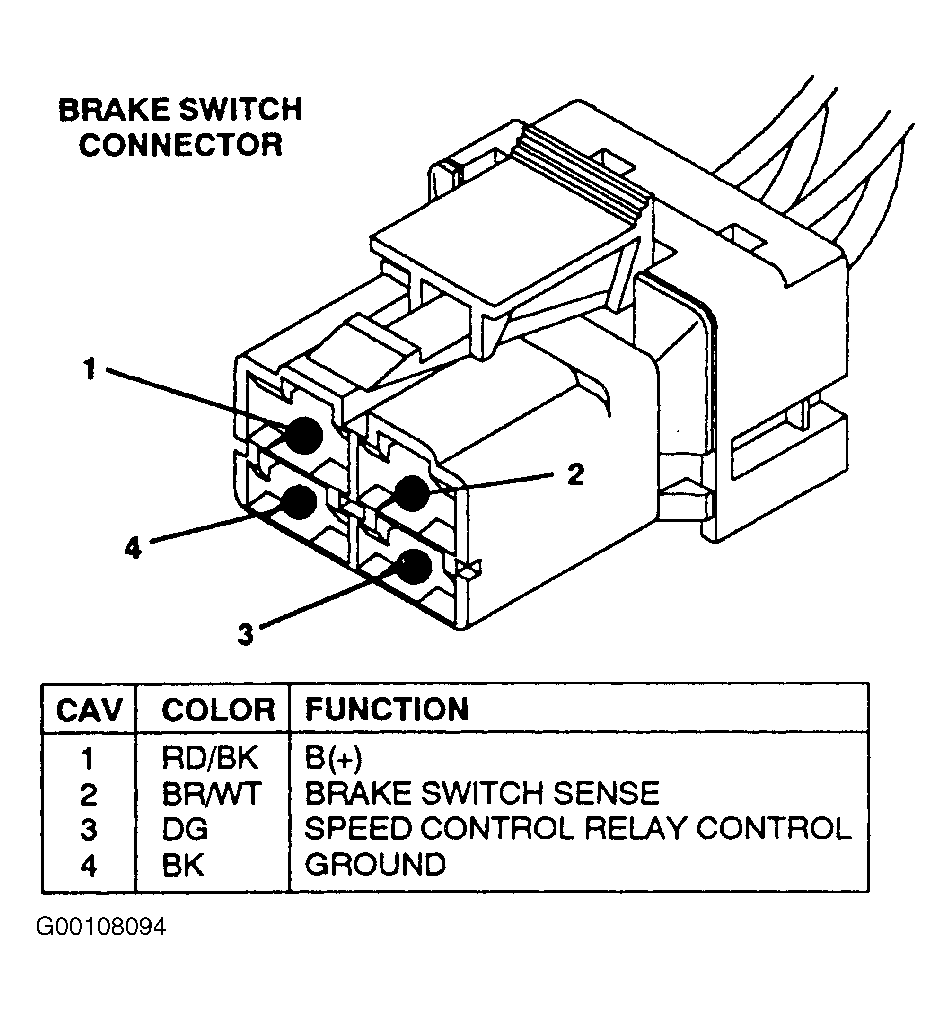

Fig 4: Identifying Brake Switch Connector Terminals

Courtesy of CHRYSLER CORP.

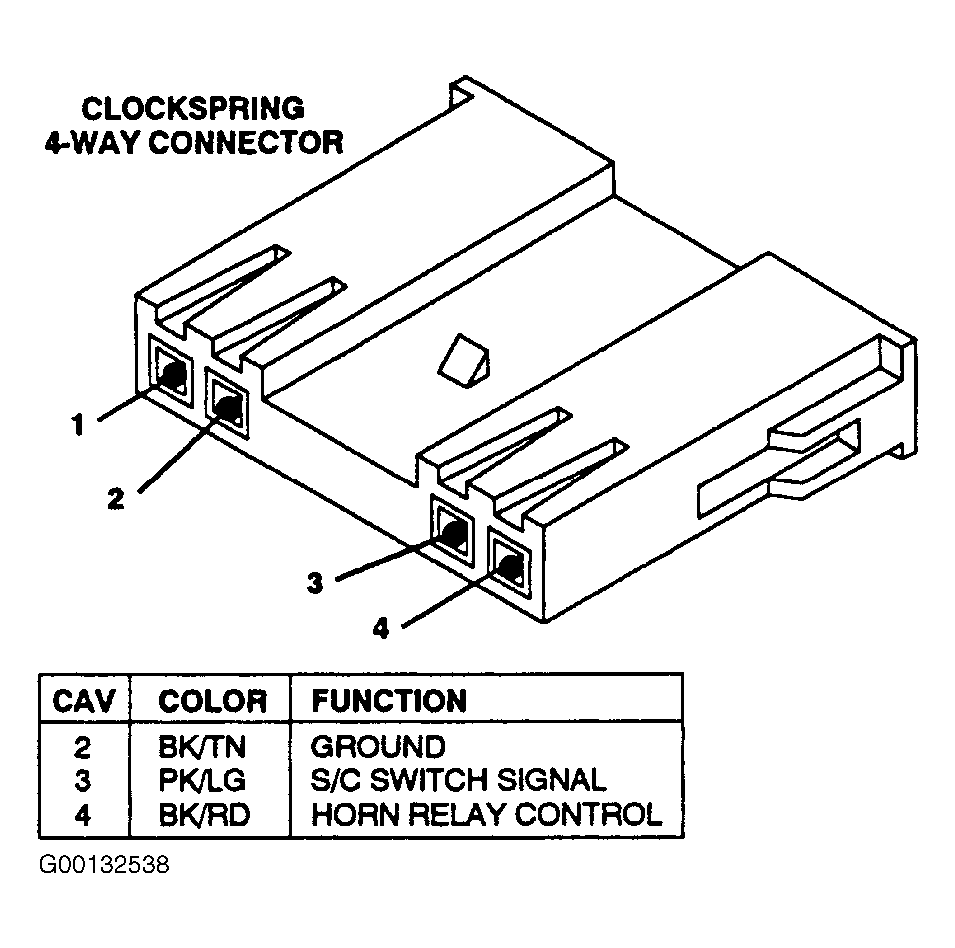

Fig 5: Identifying Clockspring 4-way Connector

Courtesy of CHRYSLER CORP.

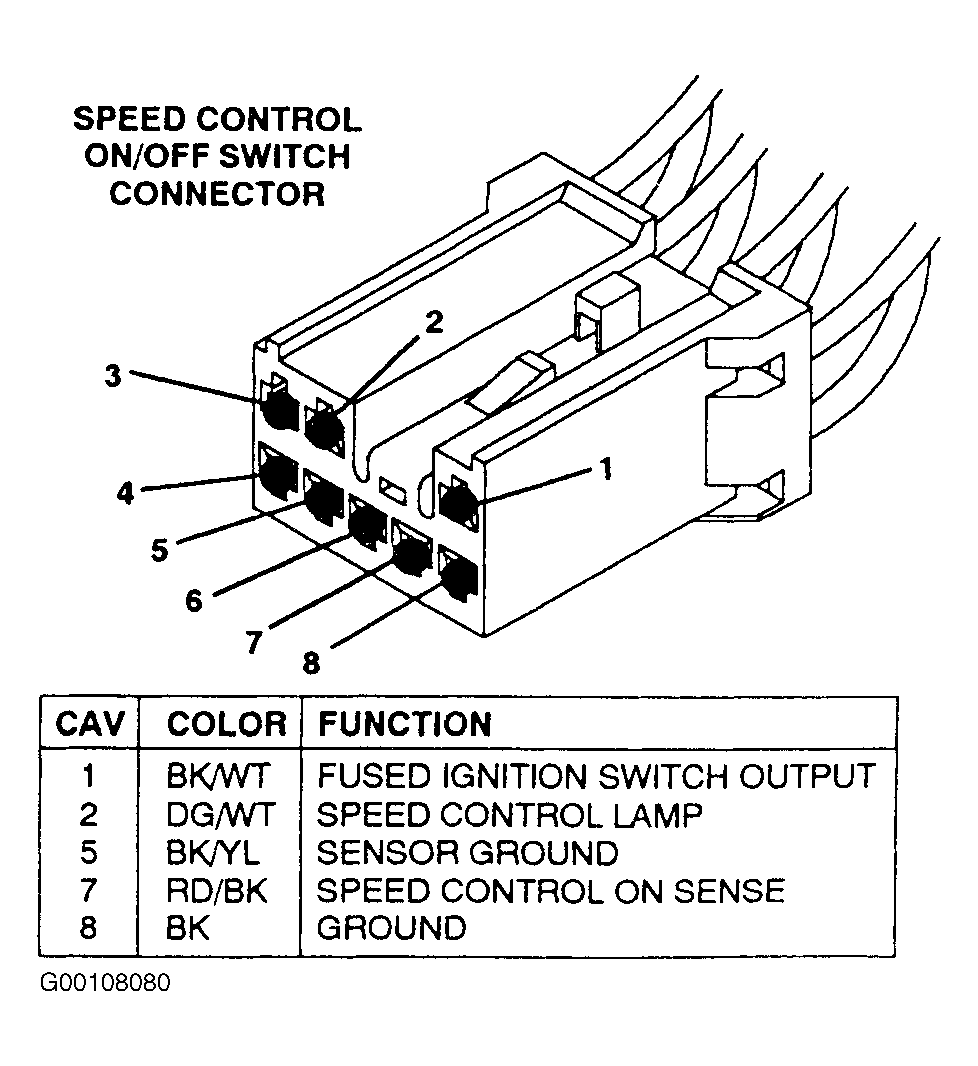

Fig 6: Identifying Speed Control On/Off Switch Connector Terminals

Courtesy of CHRYSLER CORP.

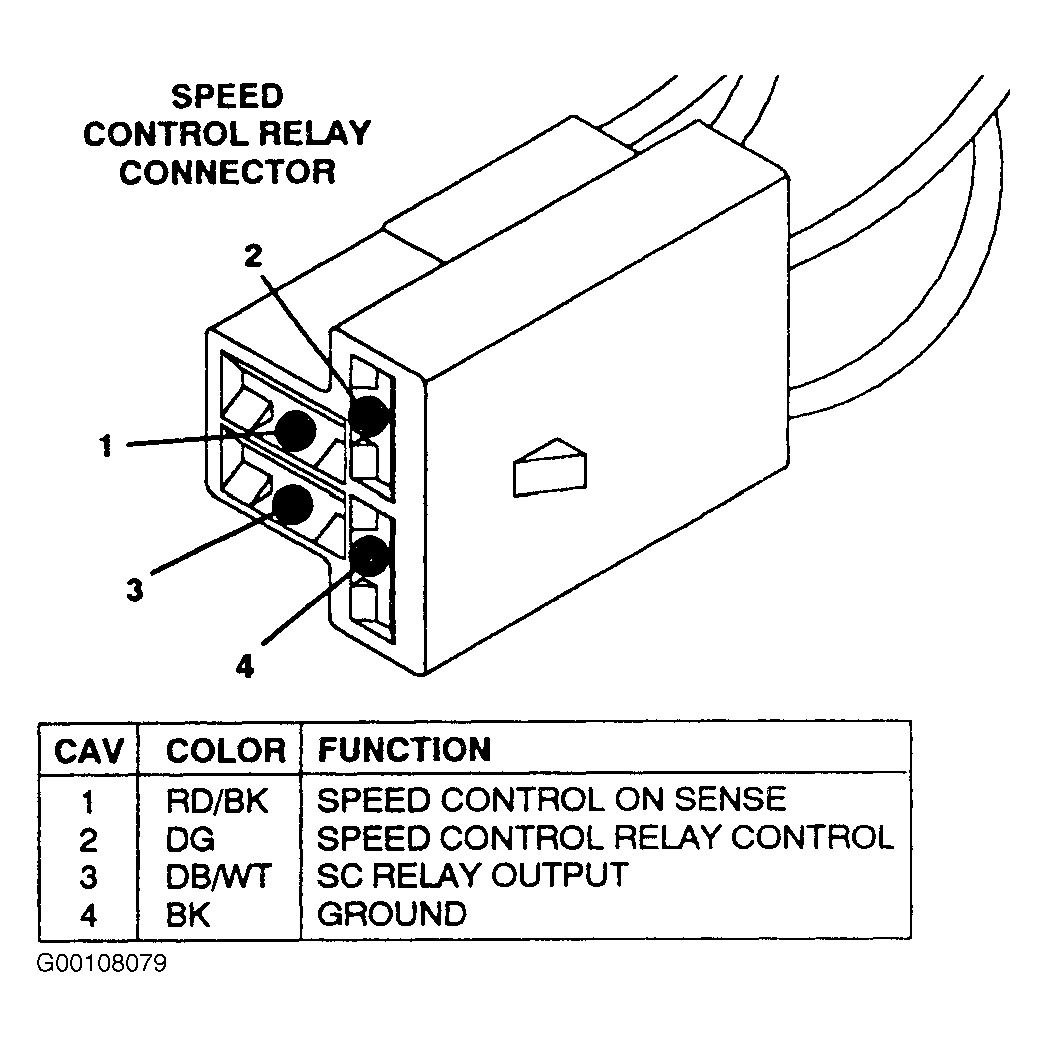

Fig 7: Identifying Speed Control Relay Connector Terminals

Courtesy of CHRYSLER CORP.

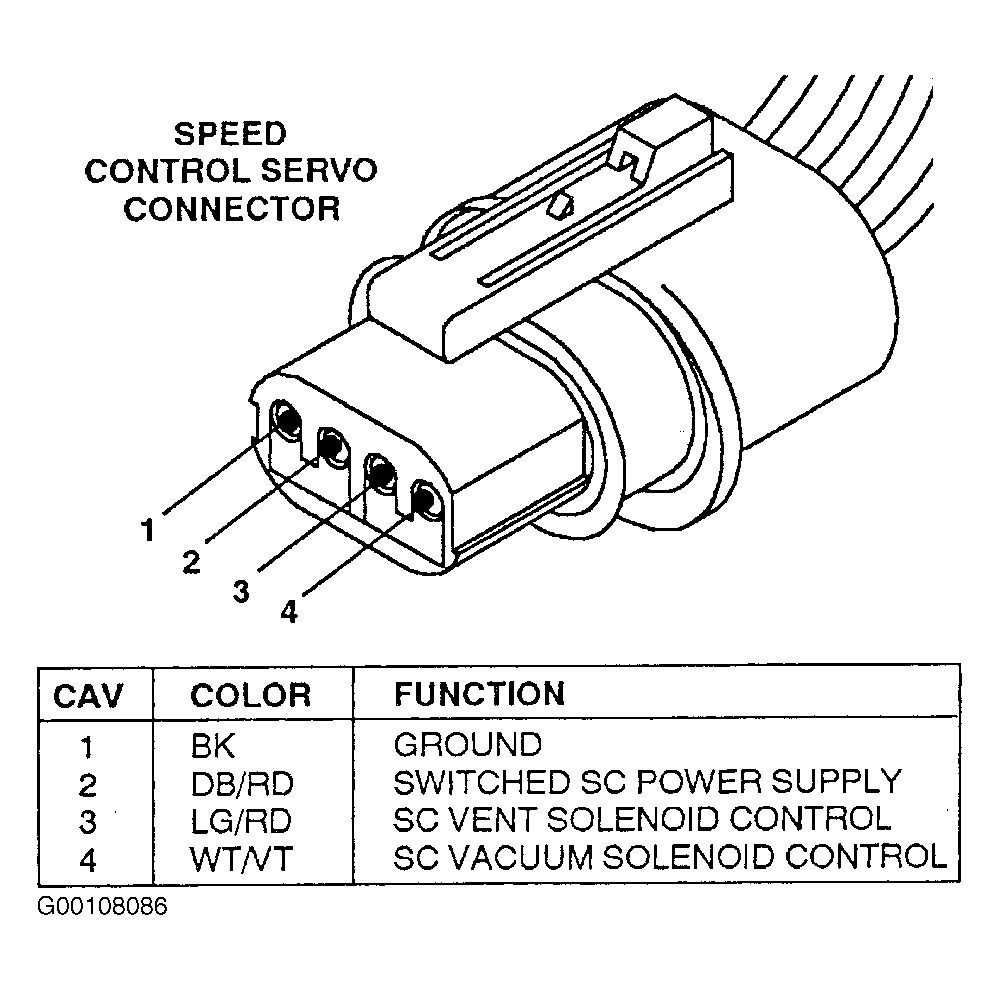

Fig 8: Identifying Speed Control Servo Connector Terminals

Courtesy of CHRYSLER CORP.

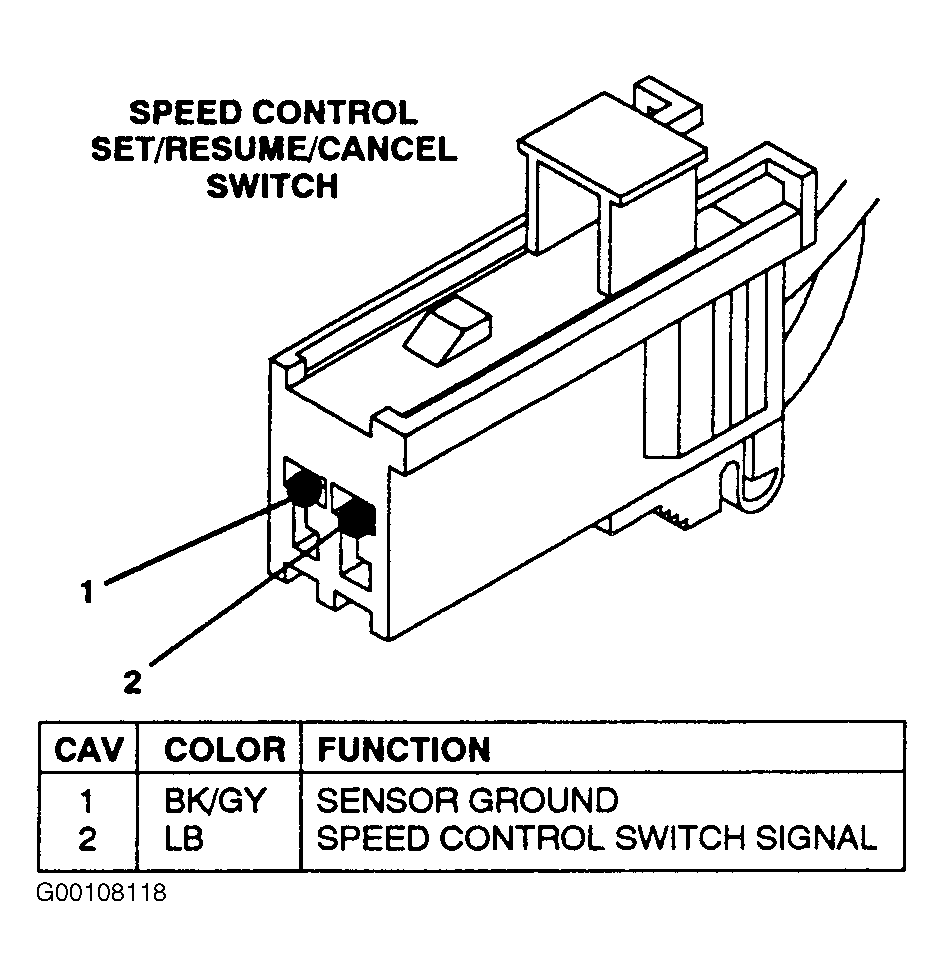

Fig 9: Identifying Speed Control Set/Resume/Cancel Switch Terminals

Courtesy of CHRYSLER CORP.

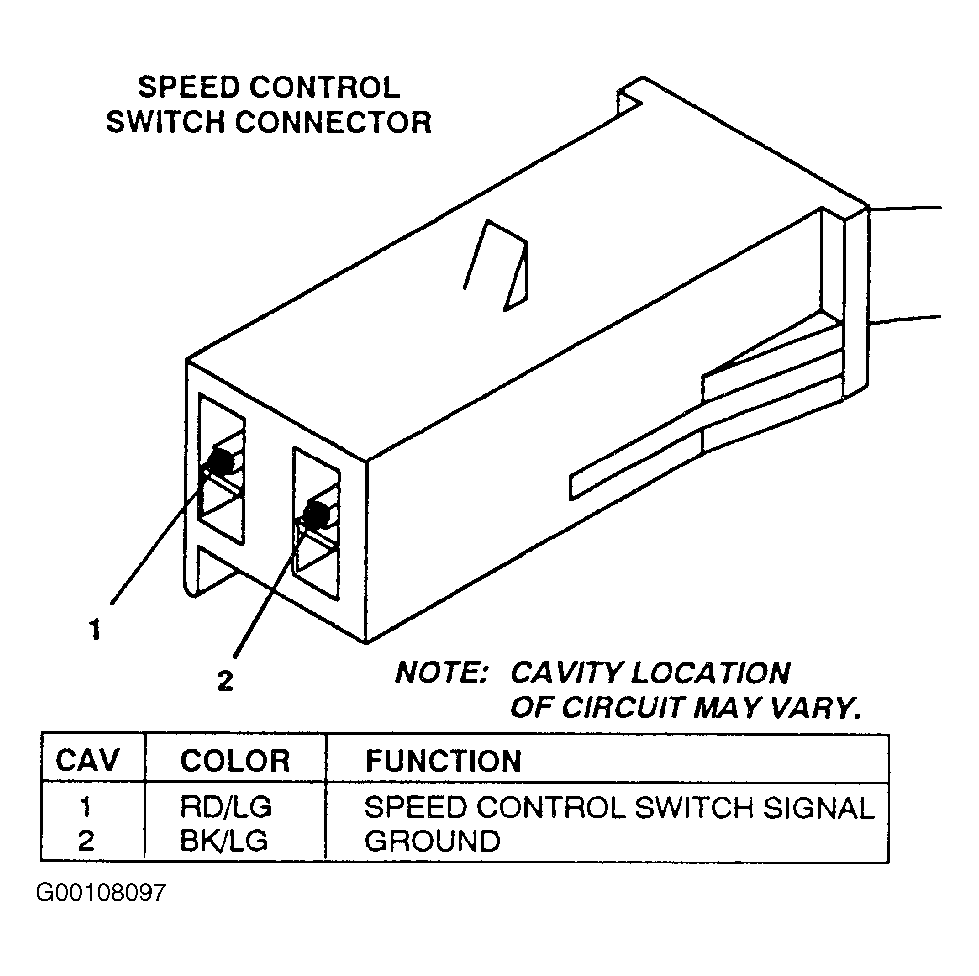

Fig 10: Identifying Speed Control Switch Connector Terminals

Courtesy of CHRYSLER CORP.
