How to Read Configuration/Harness Diagrams

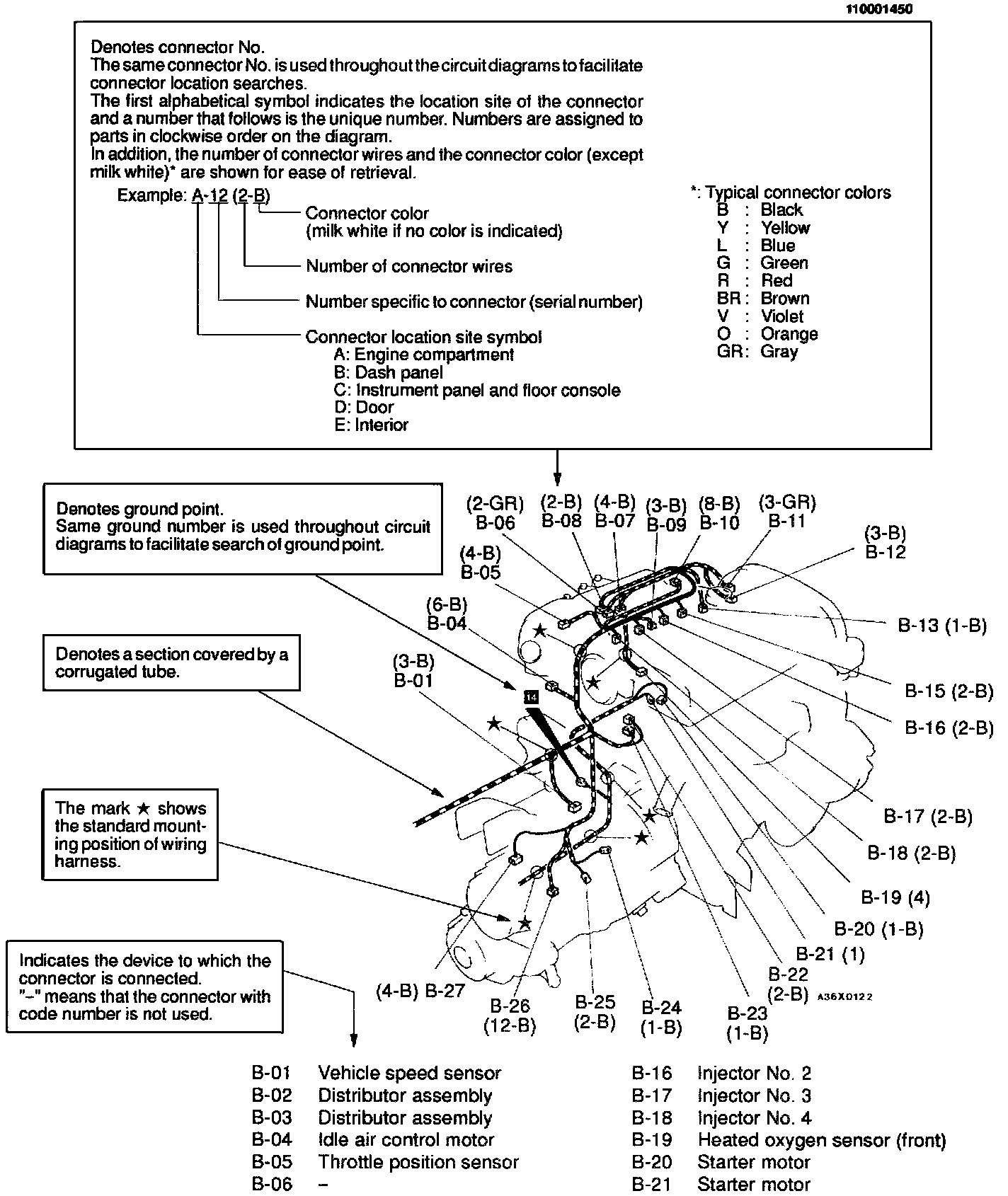

How To Read Harness/Connector Diagrams:





The wiring harness diagrams clearly show the connector locations and harness routings at each site on actual vehicles.
