Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Air Bag Control Module | Under floor console, behind transmission selector. |
| Body Control Module | On junction block, under left side of dash. |
| Controller Anti-Lock Brake | At right front of engine compartment. |
| Daytime Running Lamp (DRL) Module | Behind dash, on back of multi- function module. |
| Fuel Pump Module | In center rear of trunk. |
| Mode Door Actuator | At left end of HVAC housing. |

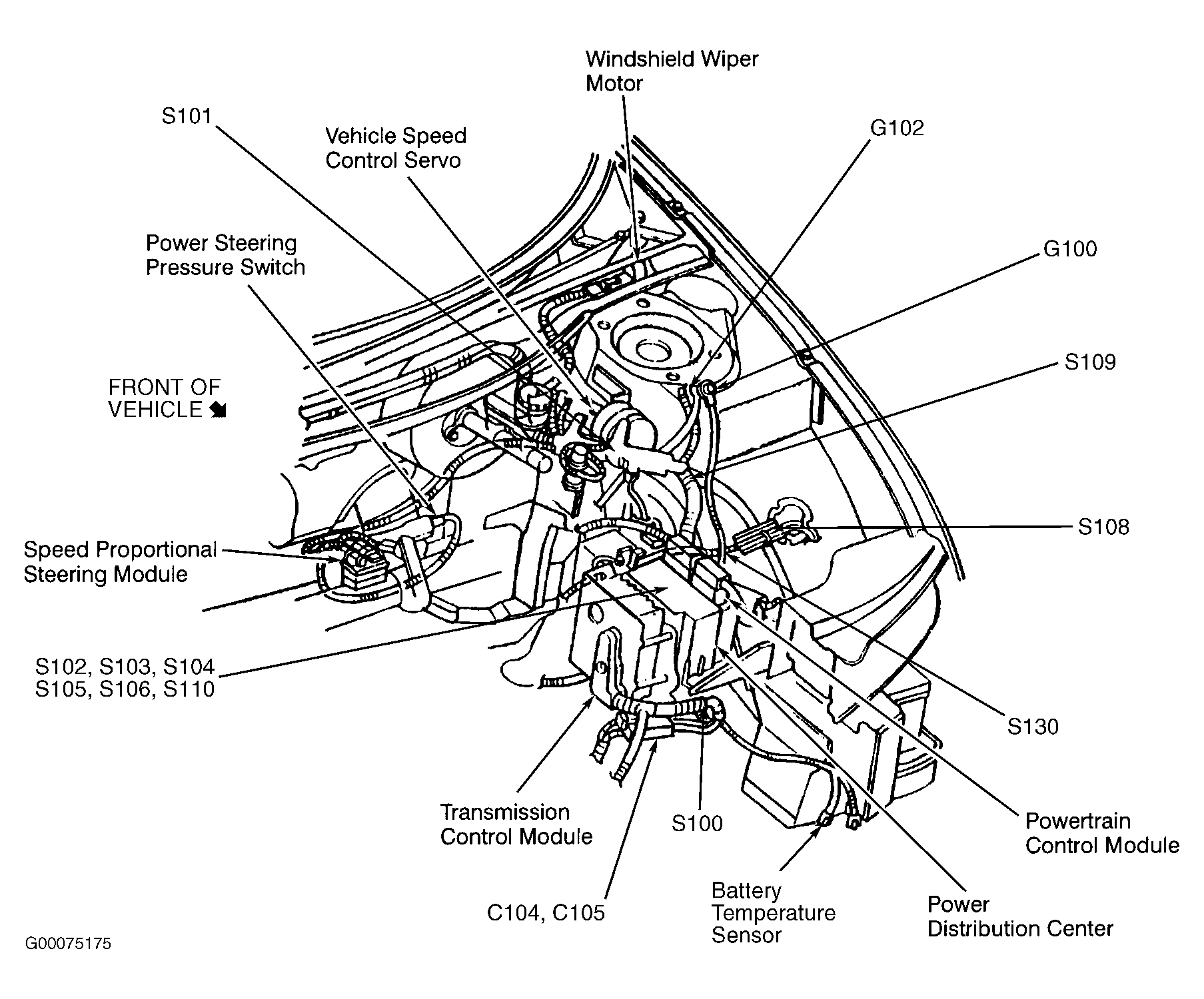

| Powertrain Control Module | Left fender side shield, attached to power distribution center. See Figure . |
| Speed Proportional Steering Module | On left side of steering gear. See Figure . |
| Sun Roof Control Module | At rear of sun roof. |
| Transmission Control Module | Left fender side shield, attached to power distribution center. See Figure . |
