Misc. Control Units
Control Unit Overviews:
Control Unit Location Views A - I:

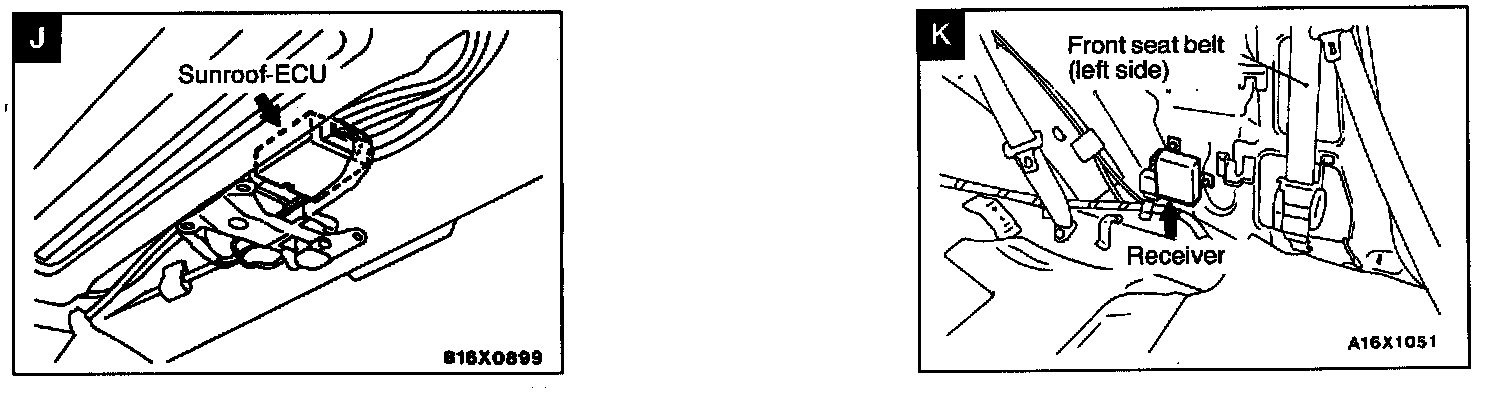

Control Unit Location Views J - K:
Name Symbol
DRL-ECU C
ETACS-ECU D
Hydraulic Unit
Illumination Module
(Dimmer Unit) E
Powertrain Control Module A
Receiver K
SRS-ECU F
Sunroof-ECU J
Front Seat Belt
(Left Side) K
